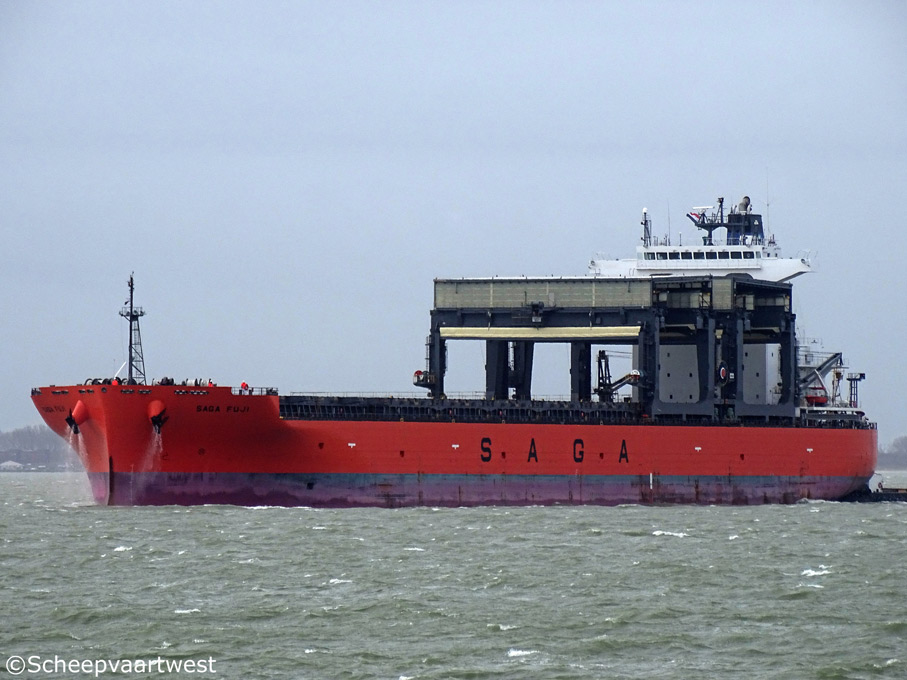

Saga Fuji 01

Westerschelde 20 February 2016

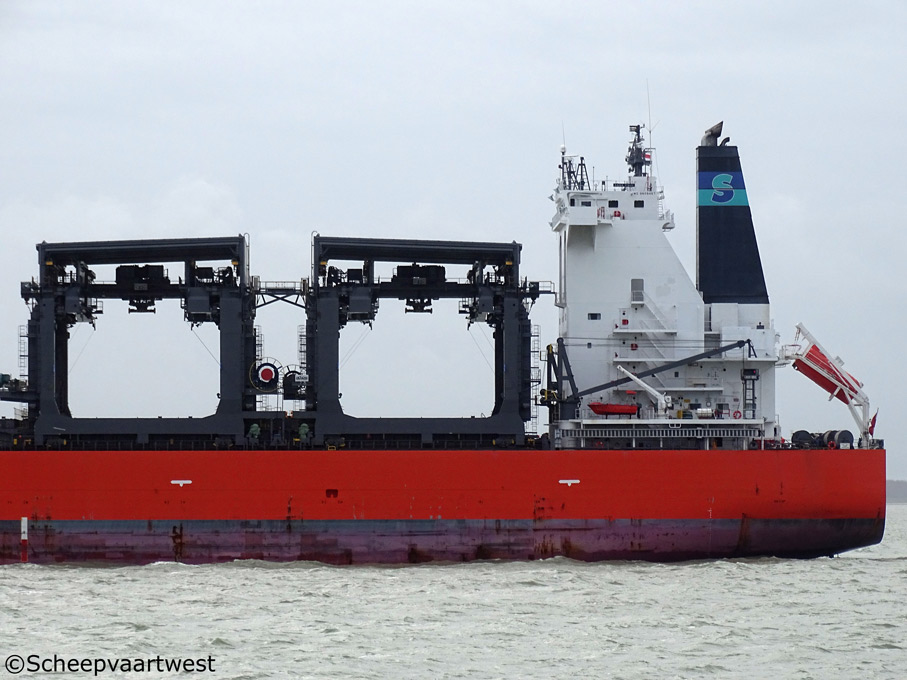

Saga Fuji 02
Westerschelde 20/02/16



Name

SAGA FUJI

Type

General cargo ship- Open hatch - Single deck

IMO-number

9609457

Call sign

VRMS3

Flag

Hong Kong - China

Port of registry

Hong Kong

GT

37.499 t

DWT

Summer: 55.956 t

NT

15.805 t

Number of 20ft containers

On deck: 618

In holds: 1.376

Length

199,90 m overall

194,02 m between perpendiculars

Breadth

32,26 m extreme

Draught

13,32 m

Depth

19,50 m

Built

2013

Keel laid

15.12.2010

Launch date

10.10.2013

Date of completion

25.11.2013

Builder

Oshima Shipbuilding Co., Ltd.
Saikai
Japan

Yard number

10661

Hull material

Steel

Main engine

1x Wärtsilä 6RT-flex50-D

Builder: Wärtsilä Switzerland Ltd.

Propellers

1

Boilers

1x Auxiliary boiler, composite type OVS2-200/120-2W

Builder: Osaka Mfg.

Generators

3x Hyundai 7H21/32 diesel generatorsets

Builder: Hyundai Heavy Industries Co., Ltd.

Emergency generator

1x Cummins 6CTA8.3-D(M) diesel generatorset

Number of holds

10

Hold 1: 3.902 m³ / 137.797 ft³

Hold 2: 5.922 m³ / 209.151 ft³

Hold 3: 7.148 m³ / 252.439 ft³

Hold 4: 7.148 m³ / 252.439 ft³

Hold 5: 7.148 m³ / 252.439 ft³

Hold 6: 7.148 m³ / 252.439 ft³

Hold 7: 7.148 m³ / 252.439 ft³

Hold 8: 7.148 m³ / 252.439 ft³

Hold 9: 6;508 m³ / 229.841 ft³

Hold 10: 5.235 m³ / 184.900 ft³

Total: 64.458 m³ / 2.276.323 ft³

Tank capacities

Ballast: 20.843 m³

Anchor equipment

Length: 660,00 m

Diameter: 78 mm

Cargo gear

2x Travelling Gantry cranes with weather protection - SWL 42 t each

Manager

Anglo-Eastern Ship Management Limited
Hong Kong
China

Operator

Saga Welco AS

Tenvikveien 373-375
3140 Nøtterøy
Norway

Registered owner

Pudding Shipholding S.A.

Latest data adjustment

06 March 2016
