Westerschelde 31 January 2020 |
 |
 |
 |
||

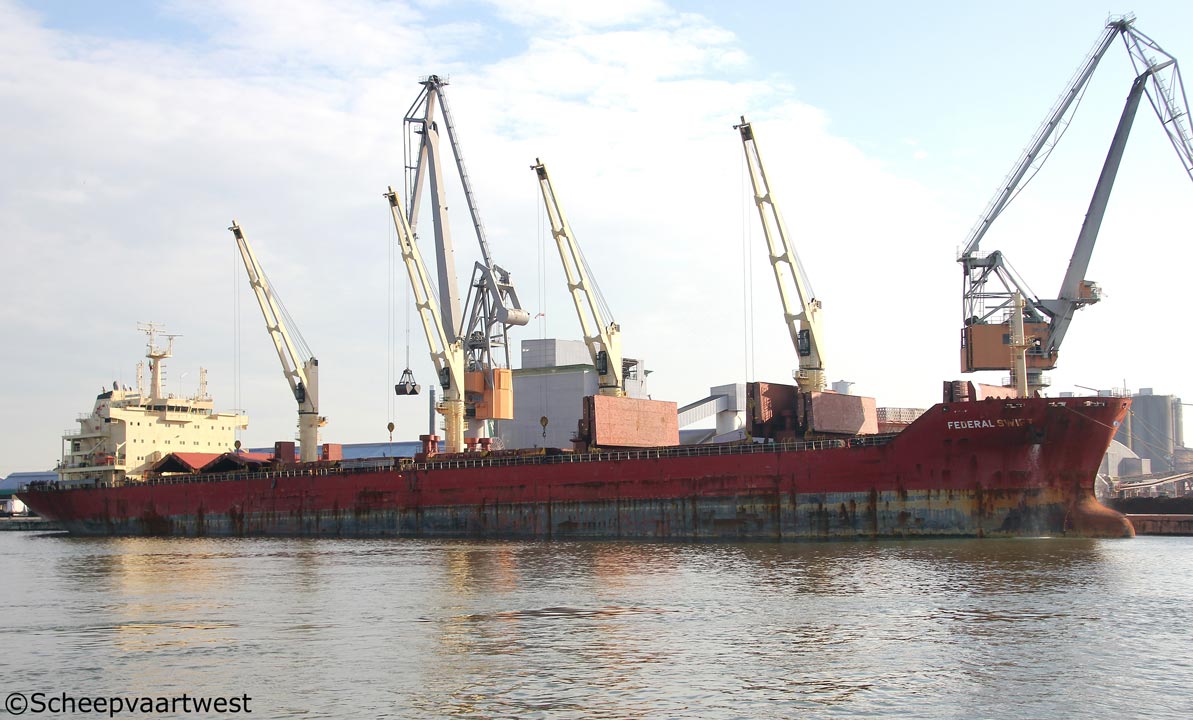

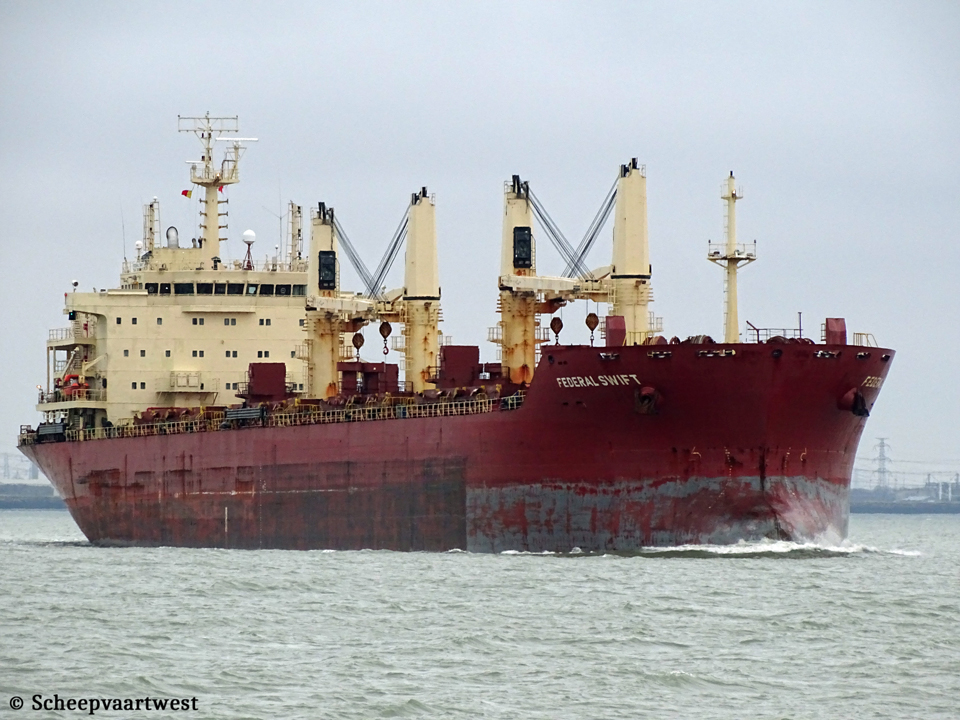

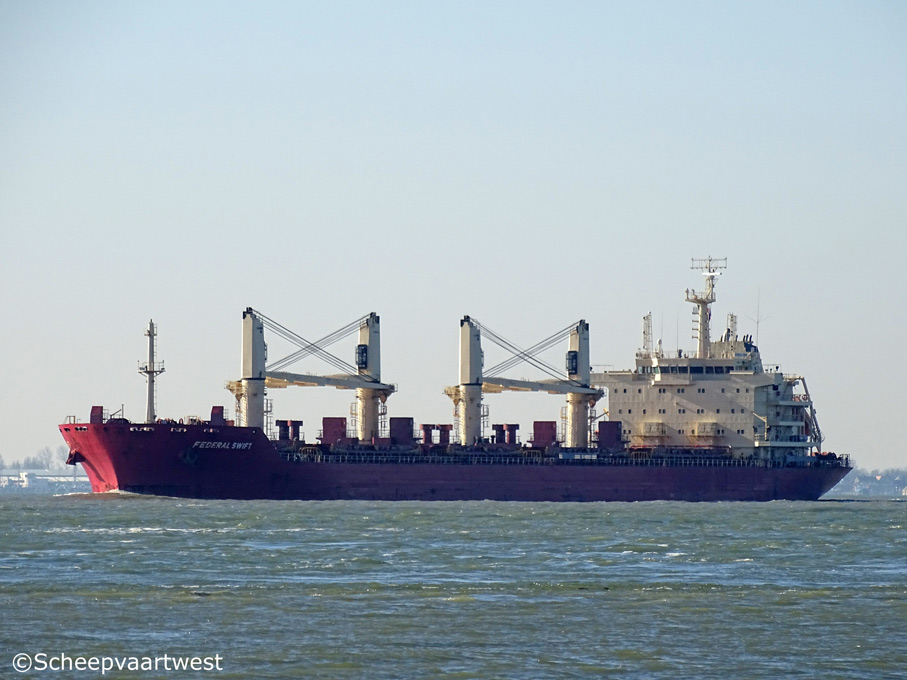

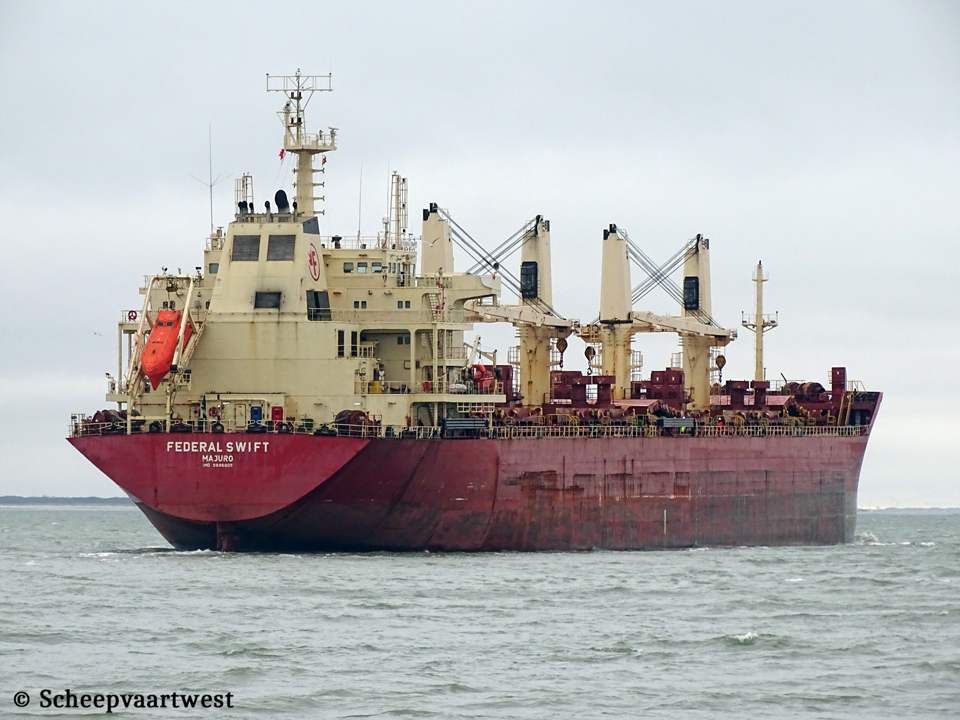

| Westerschelde 19/02/16 | Westerschelde 19/02/16 | Antwerpen 15/02/17 |
|
Name |
FEDERAL SWIFT |
|
Type |
Bulk carrier - Handysize |
|
IMO-number |
9595905 |
|
Call sign |
V7WS6 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
GT |
24.240 t |
|
DWT |
Summer: 37.168 t Winter: 36.055 t |
|
NT |
12.211 t Suez: 22.208 t Panama: 20.144 t |
|
Length |
189,99 m overall 183,00 m between perpendiculars |
|
Breadth |
28,35 m extreme |
|
Draught |
10,51 m |
|
Depth |
15,20 m |
|
Speed |
14,0 knots |
|
Built |
2012 |
|
Keel laid |
24/12/2010 |
|
Date of completion |
17/05/2012 |
|
Builder |
Zhejiang Ouhua Shipbuilding Zhoushan China |
|
Yard number |
603 |
|
Hull material |
Steel - Part higher tensile steel, |
|
Number of decks |
1 |
|
Main engine |
1x Wärtsilä/Yichang Marine 6RTA48T - 2 stroke 6 cylinder 480 x 2.000 mm combustion engine 7.000 kW at 116,0 rpm |
|
Propellers |
1x Fixed pitch propeller |
|
Generators |
3x Main diesel generatorsets each 570 kVA |
|
Number of holds |
5 Hold 1: 25,60 x 9,1 / 20,20 m Hold 2: 28,80 x 20,02 / 20,02 m Hold 3: 26,40 x 20,02 / 20,02 m Hold 4: 28,80 x 20,02 /20,02 m Hold 5: 28,80 x 20,02 / 7,20 m |
|
Hold capacity |
Grain / bale: Hold 1: 7.605 m³ / 7.400 m³ Hold 2: 10.757 m² / 10.551 m³ Hold 3: 9.884 m³ / 9.683 m³ Hold 4: 10.757 m² / 10.551 m³ Hold 5: 9.901 m³ / 9.746 m³ Total: 48.904 m³ / 47.931 m³ |
|
Hold ventilation |
Mechanical |
|
Number of hatches |
5 Hatch 1: 16,00 x 15,00 m Hatch 2: 22,40 x 18,00 m Hatch 3: 19,20 x 18,00 m Hatch 4: 22,40 x 18,00 m Hatch 5: 22,40 x 18,00 m |
|
Hatch covert type |
Folding hydraulic |
|
Max permitted loads |
Hatch 1-3-5: 25,0 t/m² Hatch: 2-4: 20,0 t/m² |
|
Tank capacities |
IFO: 1.223 m³ MDO: 391 m |
|
Cargo gear |
4x Electro hydraulic cranes - SWL 30,0 t each |
|
Commercial manager |
Fednav Ltd. 1000 de La Gauchetière Street West, Suite 3500 Montreal - Quebec Canada |
|
ISM manager |
Anglo Eastern Shipmanagement 17th Floor, Kingston International Centre, 19, Wang Chiu Road, Kowloon Bay, Kowloon Hong Kong - China |
|
Group |
Fednav Group 1000 de La Gauchetière Street West, Suite 3500 Montreal - Quebec Canada |
|
Registered owner |
Federal Cornwallis Ltd. 1000 de La Gauchetière Street West, Suite 3500 Montreal - Quebec Canada |
|
Latest data adjustment |
01 September 2022 |
