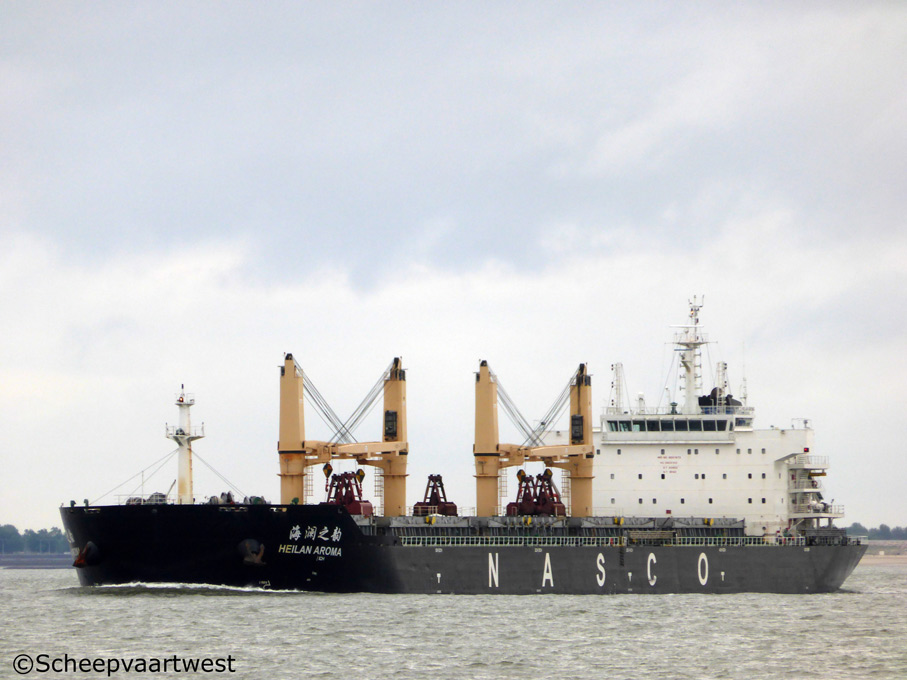

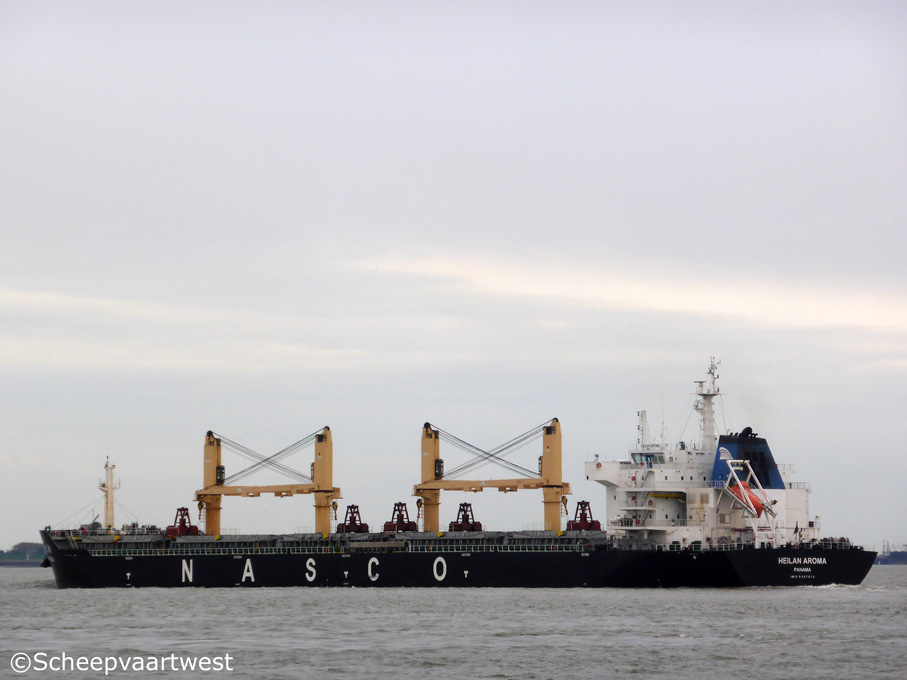

Westerschelde 26 April 2014 |
 |
| Westerschelde 26/04/14 |
|
Name |
HEILAN AROMA |
|
Type |
Bulk carrier |
|
IMO-number |
9587972 |
|
Call sign |
HP9662 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
Previous flags |
Liberia, Monrovia |
|
GT |
32.953 t |
|
DWT |
Summer: 56.878,1 t |
|
NT |
19.142 t |
|
Length |
89,99 m overall 185,00 m between perpendiculars |
|
Breadth |
32,26 m moulded |
|
Draught |
12,80 m |
|
Forecastle |
13,09 m |
|
Deckhouse |
20,06 m |
|
Freeboard |
5.224 mm |
|
Depth |
18,00 m moulded |
|
Speed |
14,2 knots |
|
Built |
2011 |
|
Date of completion |
10.05.2011 |
|
Builder |
Shanghai Shipyard Co.,Ltd. China |
|
Yard number |
S1178 |
|
Hull material |
Steel |
|
Bulkheads |
6 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN B&W/HHI 6S50MC-C7 - 6 cylinder 500 x 2.000 mm diesel engine 9.480 kW at 127,0 rpm Built: 10.01.2011 Builder: Hu Dong Heavy Machinery Co., Ltd., |
|
Propellers |
1 |
|
Generators |
3x HFC6 502-84K main diesel generatorsets each 600 kVA - 450 Volt |
|
Number of holds |
5 |
|
Cargo hold capacity |
Grain: Hold 1: 13.009,86 m³ Hold 4: 15.333,27 m³ Hold 5: 13.404,64 m³ Total: 71.634,10 m³ |
|
Number of hatches |
5 1x 18,86 x 18,26 m 4x 21,32 x 18,26 m |
|
Tank capacities |
Ballast: 30.886 m³ |
|
Lifting equipment |
1x E/R Overhead Crane - SWL 3,0 t 1x Provision rane - SWL 4,0 t |
|
Cargo gear |
4x Crane - SWL 35 t each |
|
Operator |
NASCO - Nanjing Ocean Shipping Co., Ltd. |
|
Owner |
NHB Shipping Inc. |
|
Latest data adjustment |
02 February 2016 |
