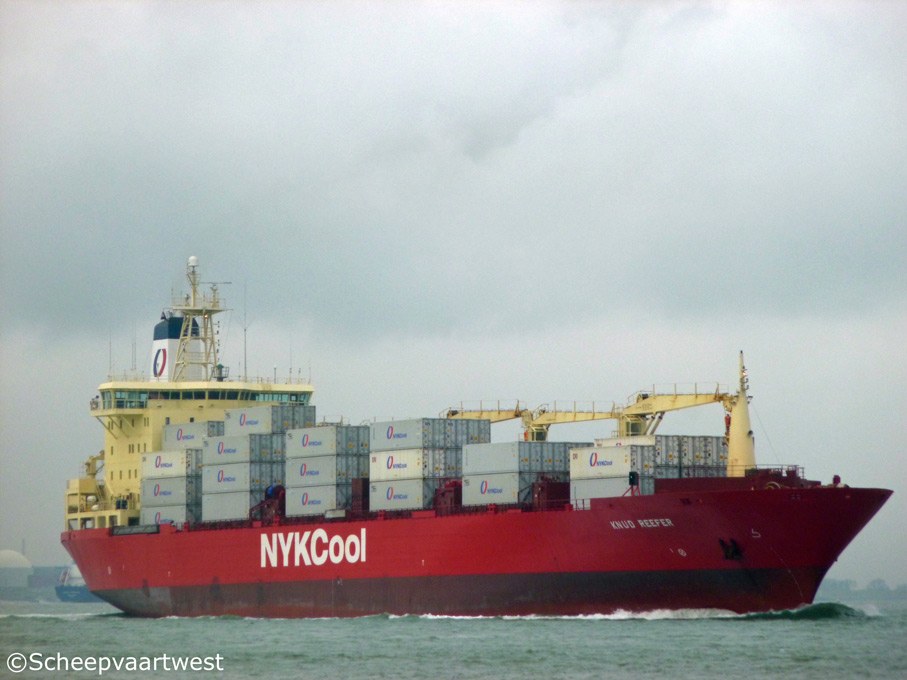

Knud Reefer 01

Westerschelde 17 December 2013

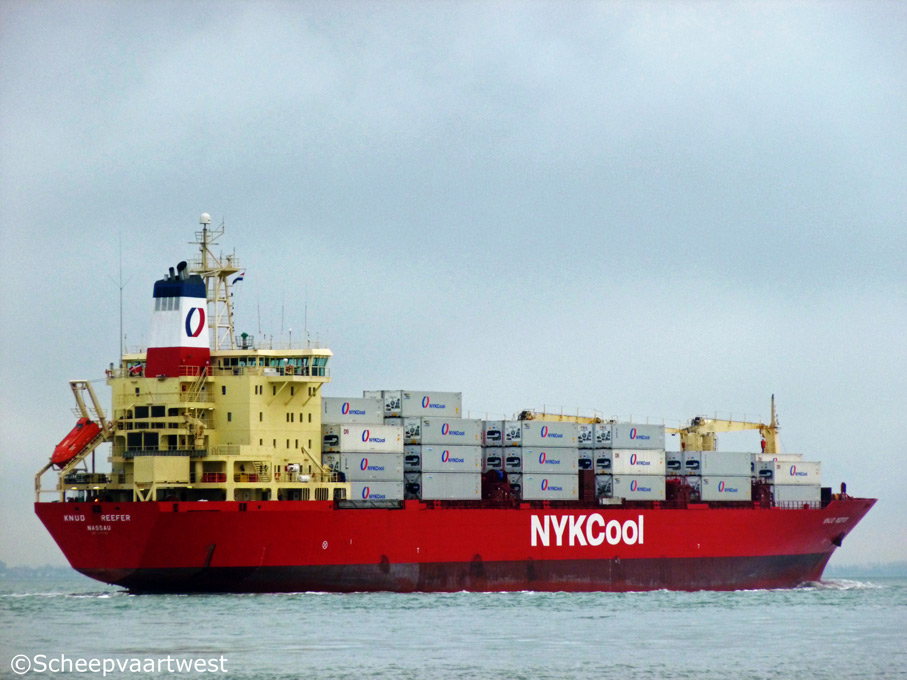

Knud Reefer 04
17/12/13



Name

KNUD REEFER

Previous names

1991 - 12.2011 Knud Lauritzen - Denmark - Call sign: OUUF2

Type

Refrigerated cargo ship - Containership

IMO-number

8903167

Call sign

C6ZP5

Flag

Bahamas

Port of registry

Nassau

GT

14.406 t

DWT

Summer: 16.950 t

NT

6.673 t

Number of 20ft containers

422

Reefer plugs

184

Length

164,30 m overall

150,60 m between perpendiculars

Breadth

24,10 m

Draught

10,01 m

Freeboard

2.856 mm

Depth

15,70 m

Speed

Max.: 20,9 knots

Service: 19,0 knots

Built

1991

Keel laid

05.06.1990

Launch date

16.10.1990

Date of completion

04.02.1991

Builder

Danyard
Frederikshavn

Denmark

Yard number

704

Hull material

Steel

Continuous decks

6

Main engine

1x MAN B&W/Hyuandai 6L60MC - 2 stroke single acting 6 cylinder 600 x 1.944 mm diesel engine 11.311 kW / 15.368 hp at 121 rpm

Built: 1989

Builder: KHIC - Korea Heavy Industries & Constr Co Ltd., Hanjung – South Korea

Propellers

1x Screw propeller controllable pitch - aft at 121 rpm

Boilers

1x CHO THZ 15 - 77,80 m² / 10,0 bar
1x CHR EXT BV 3 - 500,00 m² / 10,0 bar

Electric installations

Power voltage: 440 V

Lighting voltage: 220 V

Frequency: 60 Hz

Shaft generator

1x 3.250 kVA - 2.600 kW

Generators

3x Main diesel generatorsets each 1.500 kVA - 1.200 kW - 1.630 hp

Emergency generator

1x Diesel generatorset 144 kVA - 115 kW - 156 hp

Number of holds

23

Total capacity of holds

21.683,7 m³ / 758.725 ft³

Cargo hatchways

9

Deck area

9.010 m²

Tank capacities

Fuel oil: 1.743 m³

Cargo gear

2x Cranes - SWL 36,0 t

2x Cranes - SWL 8,0 t

Manager

Chartworld Shipping
Poseidonos Ave & Zisimopoulou 2
Glyfada 166 74 Athens

Operator

NYKCool

Owner

Kornephorus Shipping Corp.
Athens
Greece

Latest data adjustment

24 January 2016
