Spijkenisse 26 October 2014 |
|
Name |

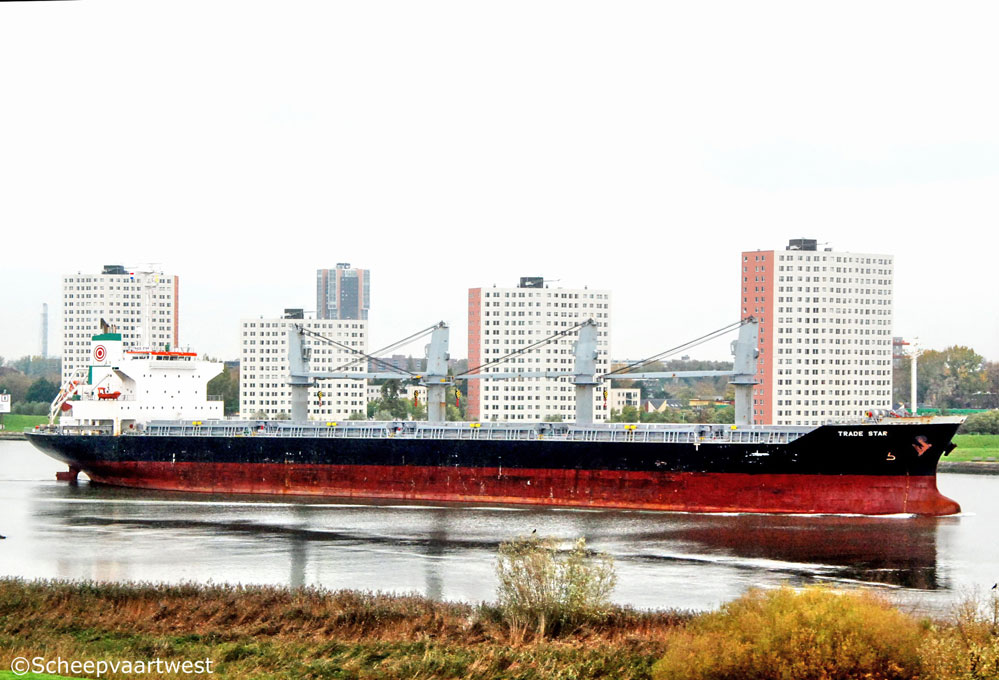

TRADE STAR |
|
Type |
Bulk carrier - Strengthened for heavy cargo loading |
|
IMO-number |
9561825 |
|
Call sign |
3EUU3 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
17.986 t |
|
DWT |
Summer: 29.627 t |
|
NT |
10.380 t |
|
Length |
170,70 m overall |
|
Breadth |
27,00 m moulded |
|
Draught |
Summer: 9,72 m |
|
Moulded L x B x D |
163,50 x 27,00 x 13,80 m |
|
Registered L x B x D |
163,80 x 27,00 x 13,80 m |
|
Freeboard |
4.127 mm |
|
Depth |
13,80 m moulded |
|
Speed |
16,3 knots |
|
Built |
2010 |
|
Keel laid |
26.04.2010 |
|
Launch date |
18.06.2010 |
|
Date of completion |
06.08.2010 |
|
Builder |
Shikoku Dockyard Co., Ltd. |
|
Yard number |
1063 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Main engine |
1x 2 stroke single acting 6 cylinder 420 x 1.764 mm diesel engine 6.150 kW at 136,0 rpm Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 405 mm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 7,0 bar Evaporation: 2,00 t/h Manufacturer: Miura Co., Ltd. |
|
Generators |
4x Generators - 1.580 kVA |
|
Number of holds |
5 |
|
Hold capacity |
Bale: 38.422 m³ Grain: 40.031 m³ |
|
Number of hatches |
5 |
|
Hatch covers |
Hydraulic folding type |
|
Tank capacities |
Fuel oil: 1.859 m³ Fresh water: 317 m³ Water ballast: 8.399 m³ |
|
Cargo gear |
4x Cranes - SWL 30,0 t each |
|
Manager |
Cleanocean Shipmanagement, Inc. |
|
Registered owner |
Sun Lanes Shipping S.A. NIkko Kisen Co., Ltd. |
|
Latest data adjustment |
24 December 2015 |
