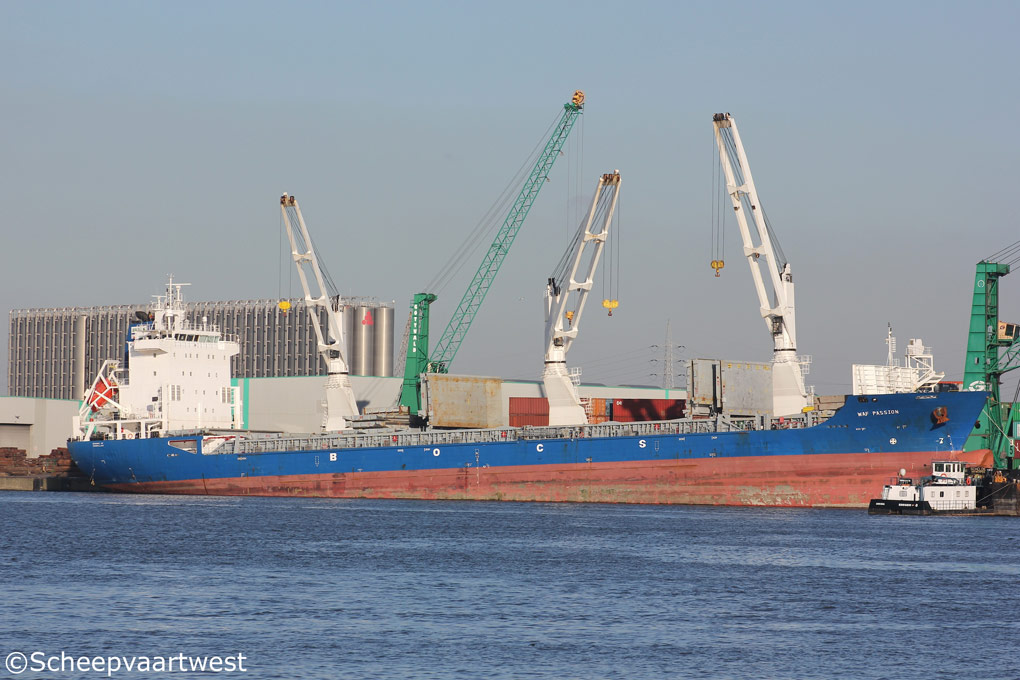

Waf Passion 01

Antwerpen 17 January 2015

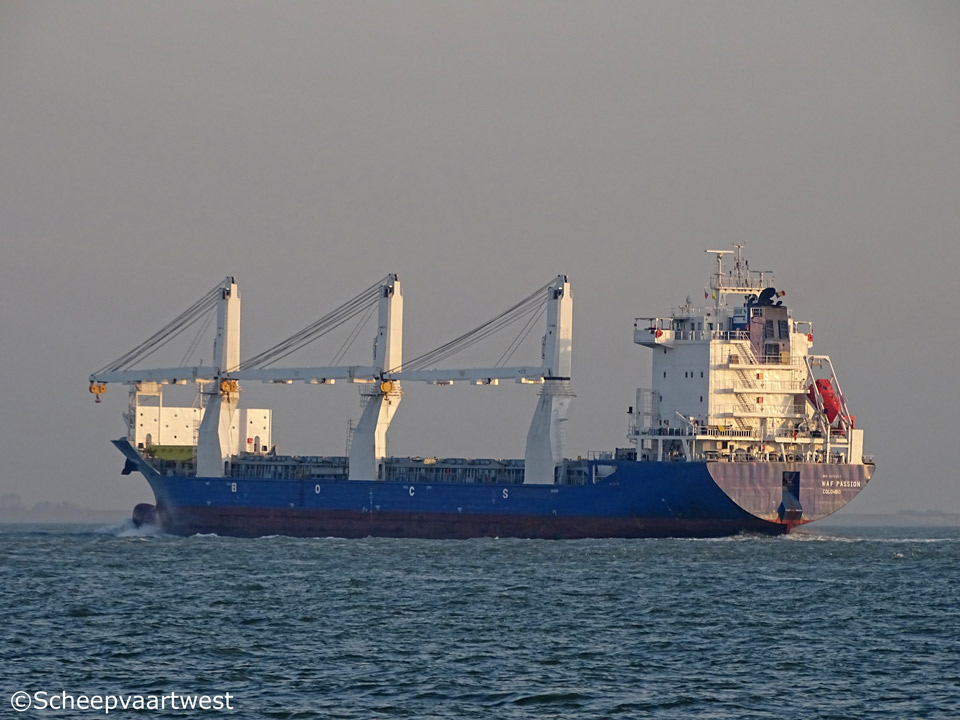

WAF Passion 02
15/12/16



Name

WAF PASSION

Previous names

2009 Launch as: Sarah Friederich

10.2009 - 11.2014 Safmarine Lualaba

Type

Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo

IMO-number

9500053

Call sign

4RBI

Flag

Sri Lanka

Port of registry

Colombo

GT

9.772 t

DWT

Summer: 12.342,7 t

NT

4.384 t

Number of 20ft containers

712

Length

139,86 m overall

133,00 m between perpendiculars

Breadth

21,80 m extreme

21,52 m moulded

Draught

8,20 m

Forecastle

10,35 m

Poop

12,90 m

Depth

11,40 m moulded

Speed

16,4 knots

Built

2009

Keel laid

26.02.2008

Launch date

16.08.2008

Date of completion

30.10.2009

Builder

Tongfang Jiangxin Shipbuilding Co., Ltd.
Jiangxin Road, Hukou County
Jiujiang
People's Republic of China

Yard number

JX601

Hull material

Shipbuilding steel (standard)

Higher tensile steel

Hull type

Double bottom

Watertight bulkheads

5

Continuous decks

2

Main engine

1x MAN-B&W/Hyundai 6S46MC-C - 2 stroke 6 cylinder 460 x 1.932 mm diesel engine - 7.860 kW / 10.690 hp at 129,0 rpm

Year of manufacture: 2008

Manufacturer: Hyundai Heavy Industries Co., Ltd. Engine & Machinery Division
1000 Bangeojinsunhwan-doro Dong-gu
Ulsan
Republic of Korea

Propellers

1x Solid propeller (keyless) - aft at 129,0 rpm

Boilers

1x Steam boiler, oil fired - 7,0 bar

Heating surface: 22,6 m²

1x Steam boiler, exhaust gas heated - 7,0 bar

Heating surface: 260,0 m²

Electric installations

3x Plants each 450 V - 1.000 kVA

1x Plant 450 V - 122,5 kVA

2x Plants each 24 V - 200 Ah

2x Plants each 24 V - 300 Ah

1x Plant 24 V - 400 Ah

Generators

3x Daihatsu 6DK-20 diesel generatorsets each 1.000 kVA / 800 kW

Builder: Daihatsu Diesel Mfg. Co., Ltd. Moriyama Factory

Emergency generator

1x Cummins 6BT5.9-D(M) diesel generatorset 122,5 kVA

Batteries

1x Battery for UPS radio 400 Ah

2x Batteries for start emergency engine each 300 Ah

2x Batteries for automation each 200 Ah

Compressed air receivers

2x Receivers each 3.500 litres - 33,0 bar

1x Receiver 200 litres - 33,0 bar

1x Receiver 40 litres - 11,0 bar

1x Receiver 1.000 litres - 10,0 bar

Bow thruster

1x Transverse thruster 500 kW, forward

Cargo hold capacity

Grain: 15.900 m³

Tank capacities

Ballast: 4.857,4 m³

Anchor equipment

3x Anchors weight each 4.890 kg

Length: 545,00 m

Diameter: 54 mm

Cargo gear

1x Crane - SWL 45,0 t

2x Cranes - SWL 80,0 t each

Crew size

25

Manager

Reederei Eugen Friederich GmbH & Co. KG
Anne-Conway-Str. 2
28359 Bremen
Federal Republic of Germany

Registered owner

MS "SENTA FRIEDERICH" Schifffahrtsgesellschaft mbH & Co. KG
clo Reederei Eugen Friederich Anne-Conway-Str. 2
28359 Bremen
Federal Republic of Germany

Latest data adjustment

08 December 2015
