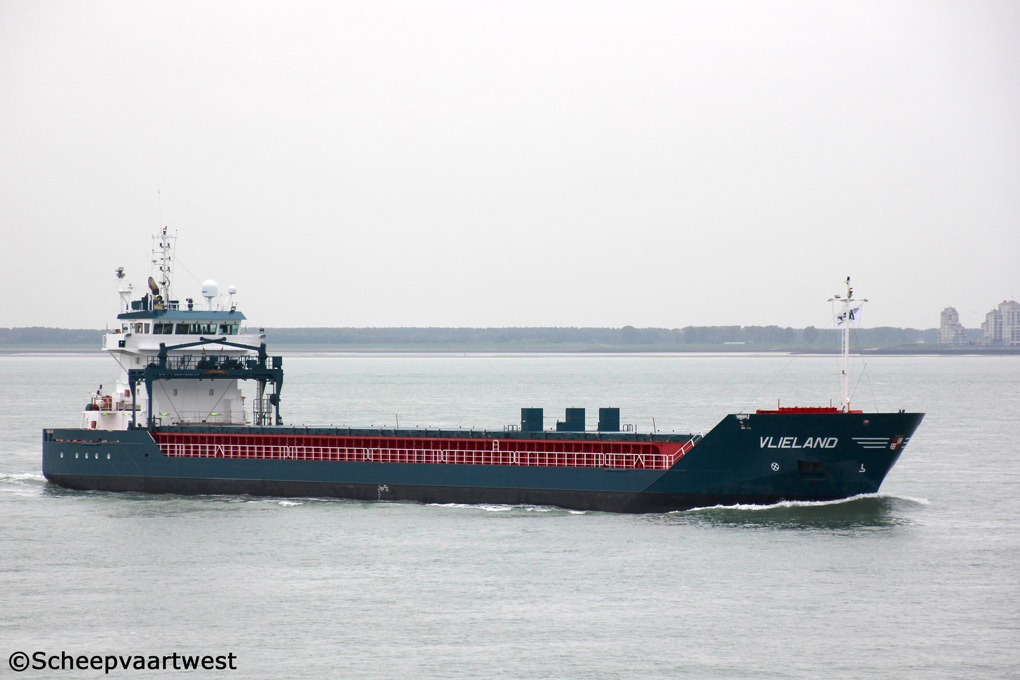

Vlieland 01

Westerschelde 23 October 2015

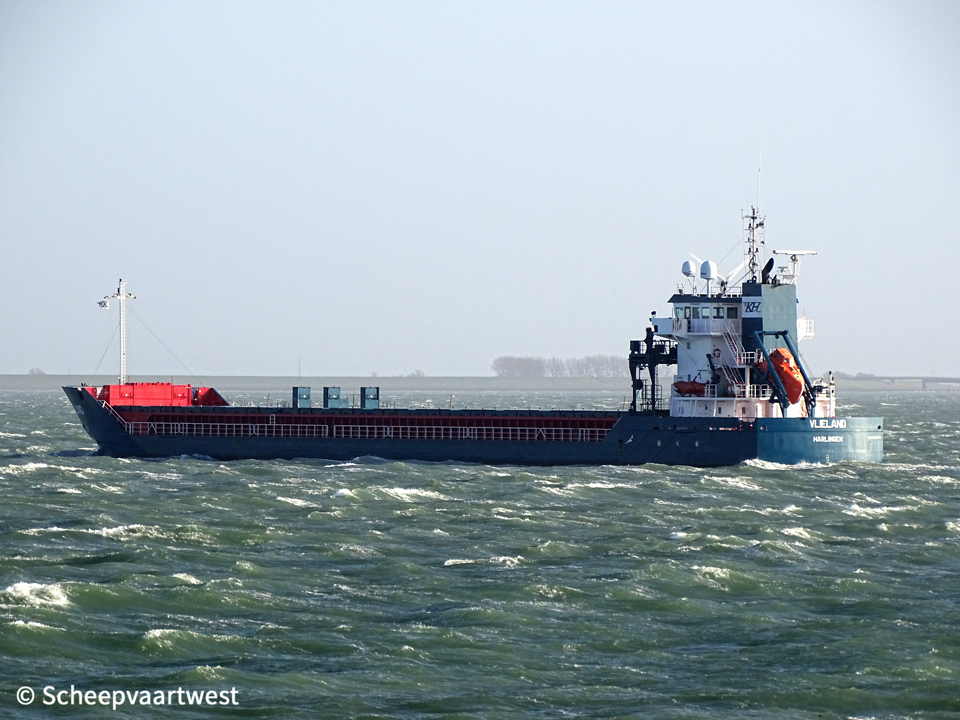

Vlieland 02
Westerschelde 08/12/19













Name

VLIELAND

Type

Multi-purpose general cargo ship - heavy cargo - Container ship - Open hatch, fully box, double skinned, Single-decker

IMO-number

9313814

Call sign

PBFD

Flag

The Netherlands

Port of registry

Harlingen

GT

3.990 t

DWT

Summer: 6.040 t

DWCC

Summer: 6.400 t

NT

2.208 t

Number of 20ft containers

In hold: 138

On deck: 104

Total: 242

Number of 40ft containers

In hold: 66

On deck: 48

Total: 114

Length

110,78 m overall

105,48 m between perpendiculars

Breadth

14,00 m moulded

Draught

6,09 m

Air draft

25,00 m in ballast

Freeboard

2.054 mm

Depth

8,13 m moulded

Speed

Service: 11,0 knots

Max: 14,0 knotd

Built

2005

Keel laid

28/01/2005

Launch date

26/08/2005

Date of completion

28/09/2005

Builder

Ferus Smit Scheepswerf B.V.

Hoogezand

The Netherlands

Yard number

361

Hull material

Steel

Hull type

Double skinned

Watertight compartments

9

Movable bulkheads

2

Continuous decks

1

Main engine

1x MaK 8M25 - 4 stroke single acting 8 cylinder 255 x 400 mm combustion engine 2.640 kW / 3.587 hp at 750 rpm

Built: 2005

Builder: MaK Deutschland GmbH & Co. KG, Bremen - Germany

Propellers

1x Lips screw propeller controllable pitch - aft at 200 rpm

Diameter: 3.200 mm

Electric installations

Power voltage: 400 V

Lighting voltage: 230 V

Frequency: 50 Hz

Shaft generator

1x 488 kVA - 390 kW

Generators

2x Main diesel generatorsets each 175 kVA - 140 kW - 222 hp

Emergency generator

1x Diesel generatorset 52 kVA - 42 kW - 68 hp

Bow thruster

1x Jastran 335 kW, forward

Number of holds

2

Hold 1: 27,58 x 11,47 x 9,00 m

Hold 2: 50,88 x 11,47 x 9,00 m

Hold capacity

Hold 1: 2.610 m³ / 92.226 ft³

Hold 2: 5.336 m³ / 188.551 ft³

Hold ventilation

4x Air-changes per hour, basis empty hold

Both holds are fitted with dehumidifier system

Number of hatches

2

Hatch 1: 27,58 x 11,47 m

Hatch 2: 50,88 x 11,47 m

Max. permitted loads

Tan top: 15,0 t/m²

Hatches covers: 1,6 t/m²

Tank capacities

HFO: 394 m³

Gas oil: 44 m³

Ballast: 2.540 m³

Fresh water: 46 m³

Dirty oil: 8,8 m³

Sludge: 10,6 m³

Lube oil: 19,8 m³

Cargo gear

Gearless

Manager

Harlingen Kustvaart

Korte Lijnbaan 13b

8861 NS Harlingen

The Netherlands

Registered owner

Vlieland Shipping C.V.

Harlingen

The Netherlands

Latest data adjustment

05 July 2020
