Antwerpen 28 July 2015 |
|
Name |

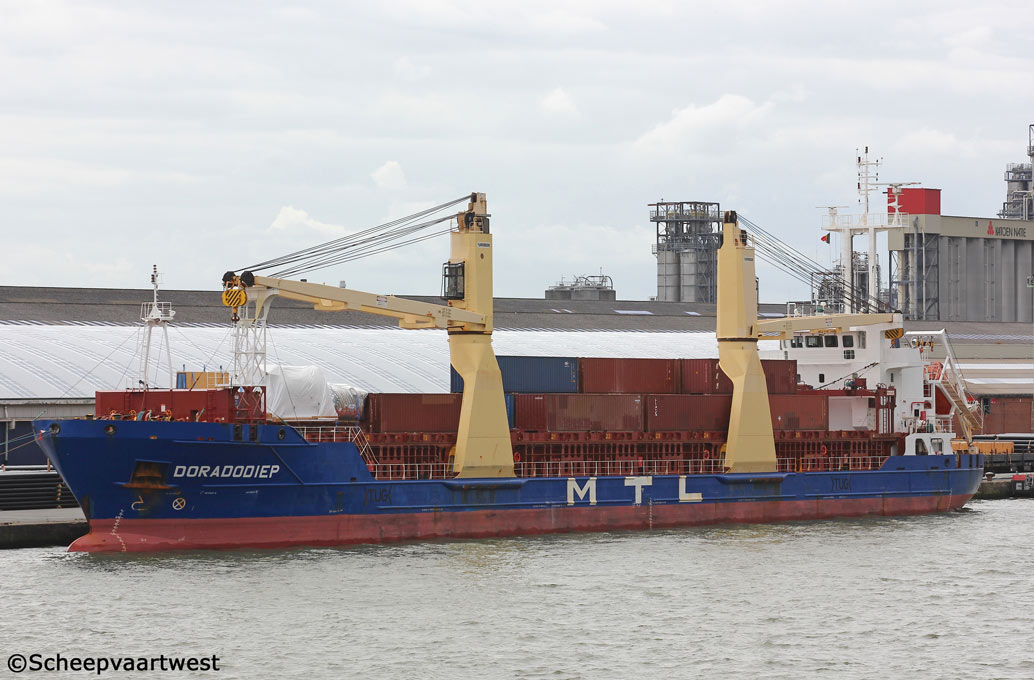

DORADODIEP |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo |
|
IMO-number |
9518995 |
|
Call sign |
D5BQ4 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
Previous flags |
2011 - 2016 Cyprus, Limassol |
|
GT |
4.220 t |
|
DWT |
Summer: 5.653 t |
|
NT |
2.456 t |
|
Number of 20ft containers |
On deck: 105 In hold: 156 Total: 261 |
|
Length |
105,22 m overall 99,98 m between perpendiculars |
|
Breadth |
15,63 m extreme 15,20 m moulded |
|
Draught |
Summer: 5,97 m |
|
Air draft |
27,50 m masts collapsed |
|
Depth |
7,90 m to main deck |
|
Speed |
Service: 11,0 knots |
|
Built |
2011 |
|
Keel laid |
10.09.2008 |
|
Launch date |
03.07.2011 |
|
Date of completion |
02.11.2011 |
|
Builder |
Rong Cheng Shipbuilding Industry Group Co., Ltd. |
|
Yard number |
RC23 |
|
Hull material |
Steel |
|
Movable bulkhead |
2x Bulkheads (2 panels for each b/h = 4 in total) erection possible in 3 different positions in hold and 2 positions in hold 1 |
|
Main engine |
1x Yanmar 6EY26 - 6 cylinder diesel engine 1.920 kW at 750 rpm |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
1x Auxiliary boiler, oil/gas fired type LYF 0.2/0.4 MW-0.5 |
|
Shaft generator |
1x 350 kW - 400 Volt/50Hz at 1,500 rpm |
|
Generators |
3x Deutz MWM TBD234V8 249 kW diesel engine coupled with generator each 230 kW - 400 Volt/50Hz at 1.500 rpm |
|
Emergency & harbour gen. |
1x Deutz TBD234V6 diesel generatorset |
|
Bow thruster |
1x Kawasaki 300 kW, forward |
|
Holds |
2x holds with a full tween deck (upper hold 1 High Cube + lower hold 1 High Cube and 1 ISO container) |
|
Hold dimensions |
Hold 1: 25,50 x 12,65 m / 10,10 m Hold 2: 45,75 x 12,65 m |
|
Hold capacity |
Grain: 300.000 ft³, excluding bulkheads |
|
Ventilation |
Mechanically ventilated / 6 air changes per hour |
|
Hatches |
4 pontoons on hatch No 1 + 7 pontoons on hatch No.2 |
|
Max. permitted loads |
Tanktop: 15,0 t/m² Hatch covers: 2,2 t/m² Tween deck: 2,5 t/m² |
|
Tank capacities |
Fuel oil: 204 m³ at 85% MDO: 51 m³ at 85% Fresh water: 58 m³ Ballast: 1.967,5 m³ |
|
Anchor equipment |
Length: 467,50 m Diameter: 40 mm |
|
Cargo gear |
2x Cranes mounted on port of SWL 45 t each combinable to SWL 90 t |
|
Crew size |
11 |
|
Manager |
Intership Navigation Co., Ltd. Crowne Plaza Limassol |
|
Operator |
MTL |
|
Registered owner |
Shipward Maritime Ltd. |
|
Previous owner |
2011 - 2012 Intership Navigation Co. Ltd. |
|
Latest data adjustment |
24 November 2015 |
