Westerschelde 30 May 2015 |
|
Name |

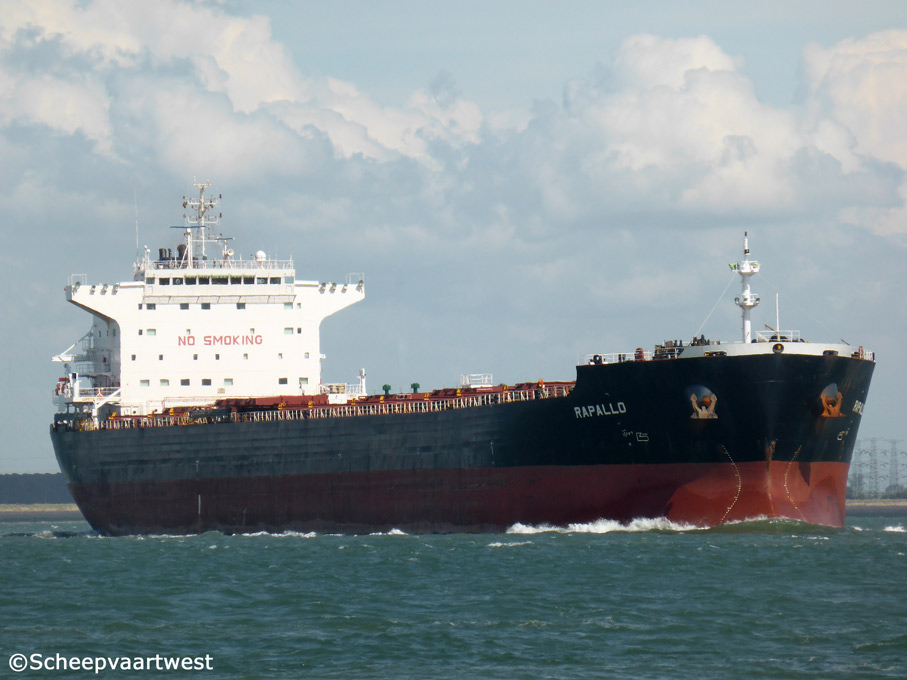

RAPALLO |
|
Type |
Bulk carrier - Strengthened for the carriage of heavy cargoes certain holds may be empty |
|
IMO-number |
9413690 |
|
Call sign |
9HYA9 |
|
Flag |
Republic of Malta |
|
Port of registry |
Valletta |
|
GT |
40.170 t registered Suez: 41.956,7 t |
|
DWT |
Summer: 75.123 t |
|
NT |
25.603 t registered Suez: 38.582,4 t Panama: 33.204 t |
|
Length |
225,00 m overall 217,00 m between perpendiculars |
|
Breadth |
32,26 m moulded |
|
Draught |
14,25 m |
|
Freeboard |
5.417 mm |
|
Depth |
19,60 m moulded |
|
Speed |
14,0 knots |
|
Built |
2009 |
|
Keel laid |
15.02.2009 |
|
Launch date |
07.04.2009 |
|
Date of completion |
04.06.2009 |
|
Builder |
Hudong Zhonghua Shipbuilding Group Co., Ltd. |
|
Yard number |
H1518A |
|
Hull material |
High strength steel Ordinary strength steel |
|
Watertight bulkheads |
9 |
|
Main engine |
1x HHM-MAN B&W 5S60MC-C - 5 cylinder 600 x 2.400 mm diesel engine - 8.99 kW at 101,0 rpm Manufacturer: Hudong Heavy Machinery Co. Ltd. |
|
Propellers |
1 Manufacturer: Nakashima Propeller Co.,Ltd., Tamashima Works |
|
Boilers |
1x Auxiliary composite boiler Mission OC - 9,0 bar Manufacturer: Aalborg Industries A/S |
|
Generators |
3x Main diesel generatorsets each 570 kW Manufacturer: Taiyo Electric Co.Ltd.Gifu Factory |
|
Number of holds |
7 |
|
Cargo hold capacity |
89.938,9 m³ |
|
Number of tanks |
Ballast: 18 Fuel oil: 10 Lubricating oil: 7 Sludge: 5 Diesel oil: 4 Waste water: 3 Chain: 2 Fresh water: 2 |
|
Tank capacities |
Cargo Ballast: 12.864,2 m³ Diesel Oil: 145,9 m³ / 131,31 t Freshwater: 510,2 m³ Fuel Oil: 2.799,5 m³ / 2.743,51 t Lube Oil: 107,6 m³ / 98,99 t Tank Ballast: 20.728,6 m³ / 21.246,81 t |
|
Lifting equipment |
1x Hose handling davit - Port side - SWL 0,9 t |
|
Manager |
TMS Bulkers |
|
Previous managers |
2009 - 2010 Cardiff Marine Inc |
|
Registered owner |
Roscoe Marine Ltd. |
|
Latest data adjustment |
12 August 2015 |
