Antwerpen 27 April 2015 |
|
Name |

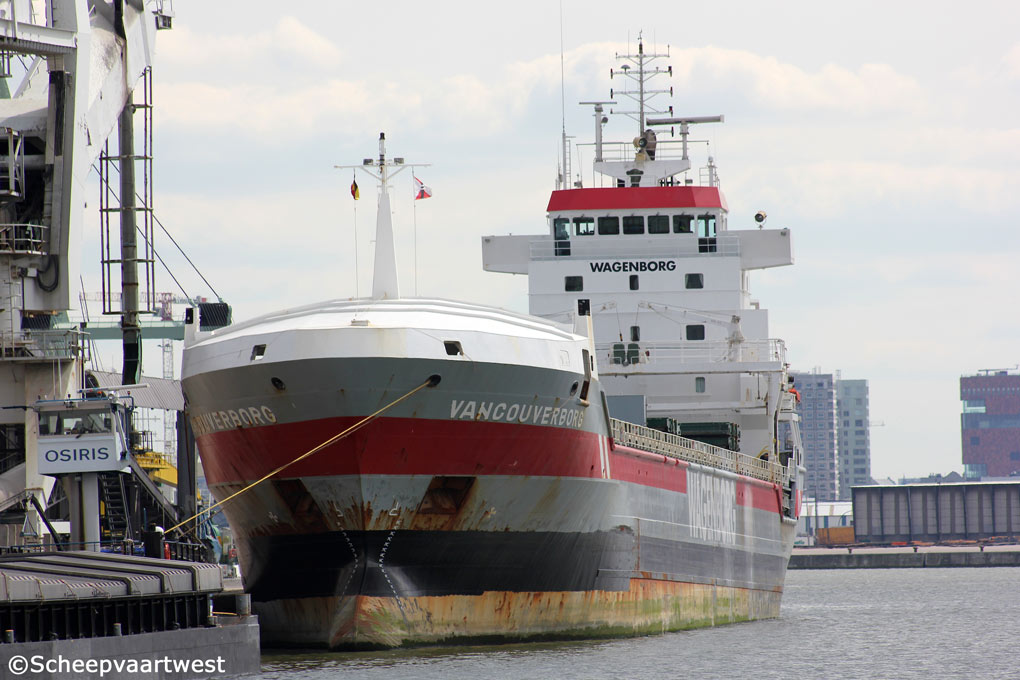

VANCOUVERBORG |
|
Previous names |
Vancouver |
|
Type |
Multi-purpose dry cargo carrier - Containership - Heavy cargo |
|
IMO-number |
9213741 |
|
Call sign |
PBCF |
|
Flag |
The Netherlands |
|
Port of registry |
Delfzijl |
|
GT |
6.361 t |
|
DWT |
Summer: 9.850 t |
|
NT |
3.099 t |
|
Number of 20ft containers |
552 |
|
Length |
132,23 m overall 124,56 m between perpendiculars |
|
Breadth |
15,87 m |
|
Draught |
7,76 m |
|
Air draft |
33,00 m |
|
Freeboard |
1.908 mm |
|
Depth |
9,65 m |
|
Speed |
15,0 knots |
|
Built |
2001 |
|
Keel laid |
30.06.1998 |
|
Launch date |
2001 |
|
Delivery data |
06.07.2001 |
|
Builder casco |
Deawoo-Mangalia Heavy Industries S.A., yard number: 1029 |
|
Builder completion |
Bodewes Scheepswerf Volharding Foxhol B.V. The Netherlands Yard number: 501 |
|
Hull material |
Steel |
|
Watertight compartments |
6 |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä 6L38B - 4 stroke single acting 6 cylinder 380 x 475 mm diesel engine - 4.200 kW / 5.707 bhp at 600 rpm Built: 2001 Builder: Wärtsilä NSD Nederland, Zwolle - The Netherlands |
|
Propellers |
1x Screw propeller controllable pitch - aft at 148 rpm |
|
Boilers |
1x CHO Wuesloch 17,50 m² - 13,0 bar |
|
Electric installations |
Power voltage: 400 V Lighting voltage: 230 V Frequency: 60 Hz |
|
Shaft generator |
1x 818 kVA - 654 kW |
|
Generators |
2x Main diesel generatorsets 305 kVA - 244 kW - 387 hp |
|
Emergency generator |
1x Diesel generatorset 87 kVA - 70 kW - 109 hp |
|
Number of holds |
2 Hold 1: 39,96 x 13,20 x 10,84 m Hold 2: 52,54 x 13,20 x 10,84 m |
|
Hold capacity |
Grain 454.000 ft³ / 12.855 m³ |
|
Cargo hatchways |
2 Hatch 1: 39,90 x 13,20 m Hatch 2: 52,50 x 13,20 m |
|
Tank capacities |
Fuel oil: 453 m³ |
|
Crew size |
Gearless |
|
Manager |
Wagenborg Shipping The Netherlands |
|
Registered owner |
Wagenborg Rederij B.V. Marktstraat 10 |
|
Previous owners |
07.2001 - 07.2005 Vancouverborg B.V., Delfzijl - The Netherlands |
|
Latest data adjustment |
05 August 2015 |
