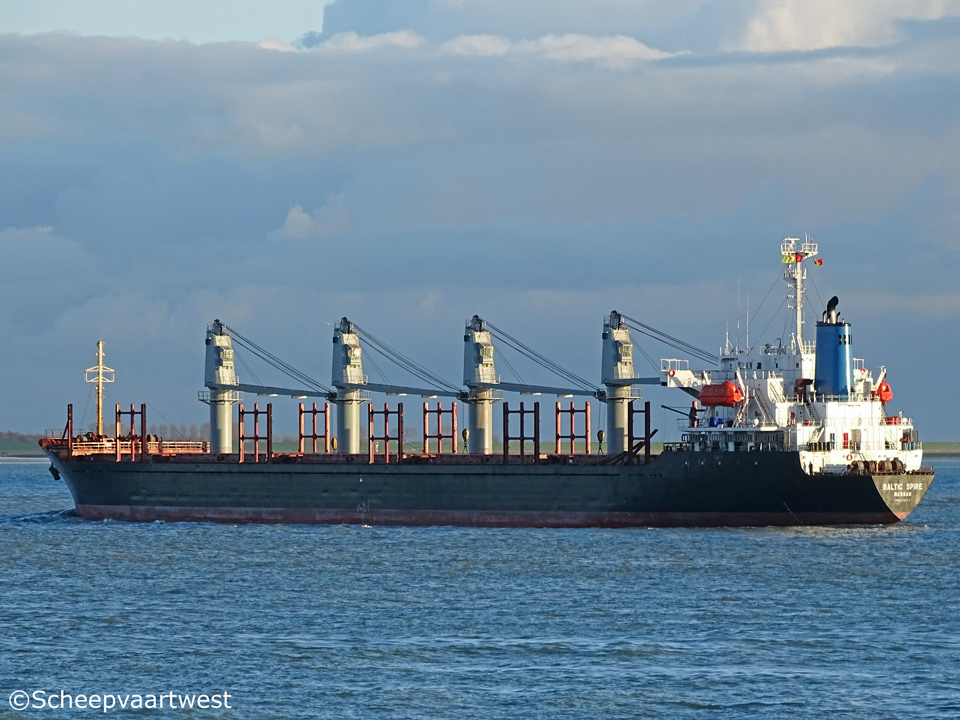

Westerschelde 30 April 2015 |
 |

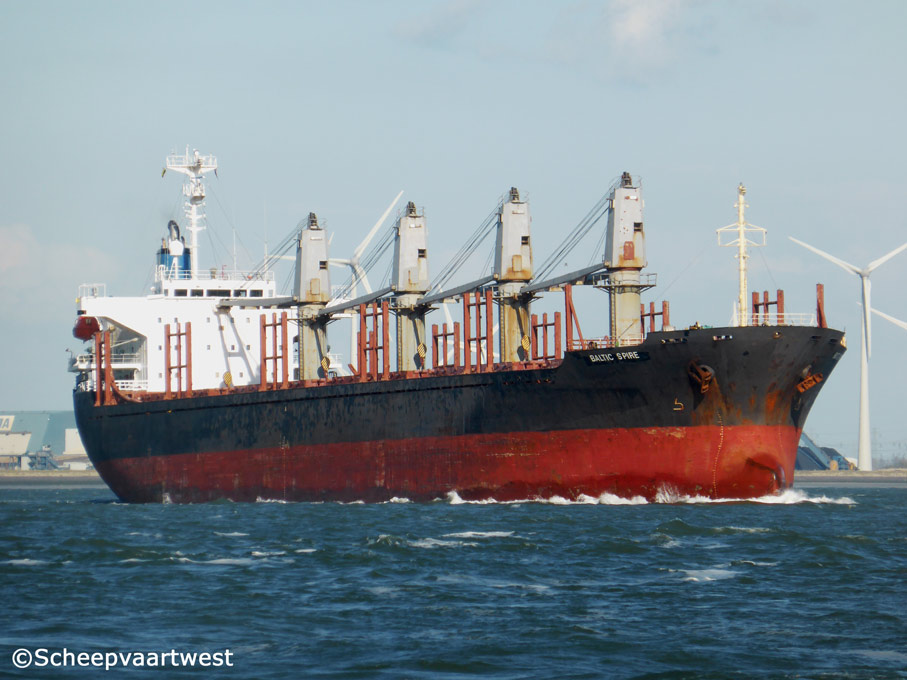

| Westerschelde 29/11/17 |
|
Name |
BALTIC SPIRE |
|
Previous names |
|
|
Type |
Bulk/Lumber carrier |
|
IMO-number |
9180011 |
|
Call sign |
C6BL4 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
GT |
16.764 Suez: 17.287,66 |
|
DWT |
Summer: 28.545 t Winter: 27.742 t |
|
NT |
10.452 Panama: 14,029 Suez: 15,872,39 |
|
Length |
169,03 m overall |
|
Breadth |
20,00 m |
|
Draught |
Summer: 9,76 m |
|
Moulded L x B x D |
160,40 x 27,20 x 13,60 m |
|
Registered L x B x D |
161,21 x 27,20 x 13,60 m |
|
Freeboard |
3.882 mm |
|
Depth |
13,60 m moulded |
|
Speed |
Trail: 15,8 knots Ballast: 14,0 knots Service: 13,5 knots |
|
Built |
1997 |
|
Keel laid |
02/07/1997 |
|
Launch date |
07/11/1997 |
|
Date of completion |
18/12/1997 |
|
Builder |
Imabari Shipbuilding Marugame Yard Co. Ltd. Marugame Japan |
|
Yard number |
1291 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Main engine |
1x MAN-B&W 6S42MC - 2 stroke single acting 6 cylinder 420 x 1.764 mm combustion engine 5.848 kW / 7.951 bhp at 129,0 rpm Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 420 mm |
|
Propellers |
1x Fixed keyless propeller |
|
Boilers |
1x Auxiliary vertical boiler - 7,9 bar Evaporation: 1,78 t/h Manufacturer: Miura Co., Ltd. |
|
Generators |
3x Generators total 1.160 kVA |
|
Cargo hold capacity |
5 Grain / bale: Hold 1: 5.320 m³ / 5.016 m³ Hold 2: 8.236 m³ / 7.840 m³ Hold 3: 8.261 m³ / 7.883 m³ Hold 4: 8.298 m³ / 7.883 m³ Hold 5: 7.408 m³ / 7.140 m³ Total: 37.523 m³ / 35.762 m³ |
|
Number of hatches |
5 Hatch 1: 13,92 x 16,00 m Hatch 2, 3, 4, 5: 19,50 x 17,92 m |
|
Hatch cover type |
Folding type |
|
Tank capacities |
Fuel oil: 1.381 m Fresh water: 302 m Water ballast: 8.318 m³ |
|
Cargo gear |
4x Deck cranes - SWL 30,5 t each |
|
Manager |
Tide Line Inc 1-3 Filellinon Street 185 36 Piraeus Greece |
|
Registered owner |
Baltic Spire Navigation Co. S.A. |
|
Renamed |
10/2018 Henry Well Republic of Panama, Panama City - Call sign: 3FYK2
08/2022 Amarillo Republic of Panama, Panama City - Call sign: 3FYK2
|
|
Latest data adjustment |
23 January 2026 |
