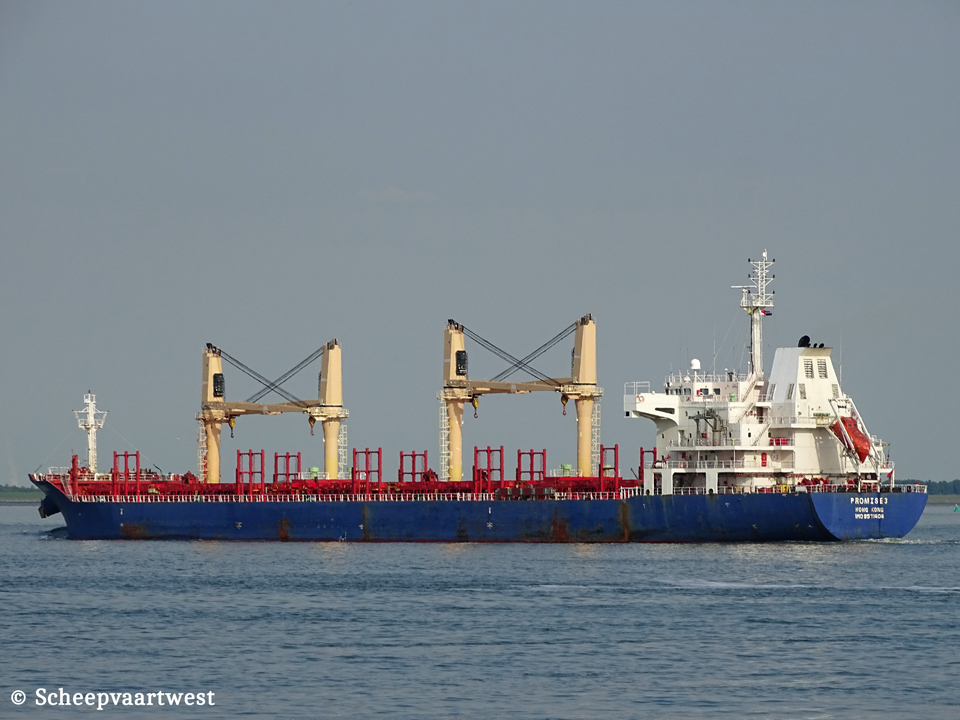

Promise 3 IMO 9571404 04

Westerschelde 22 May 2017

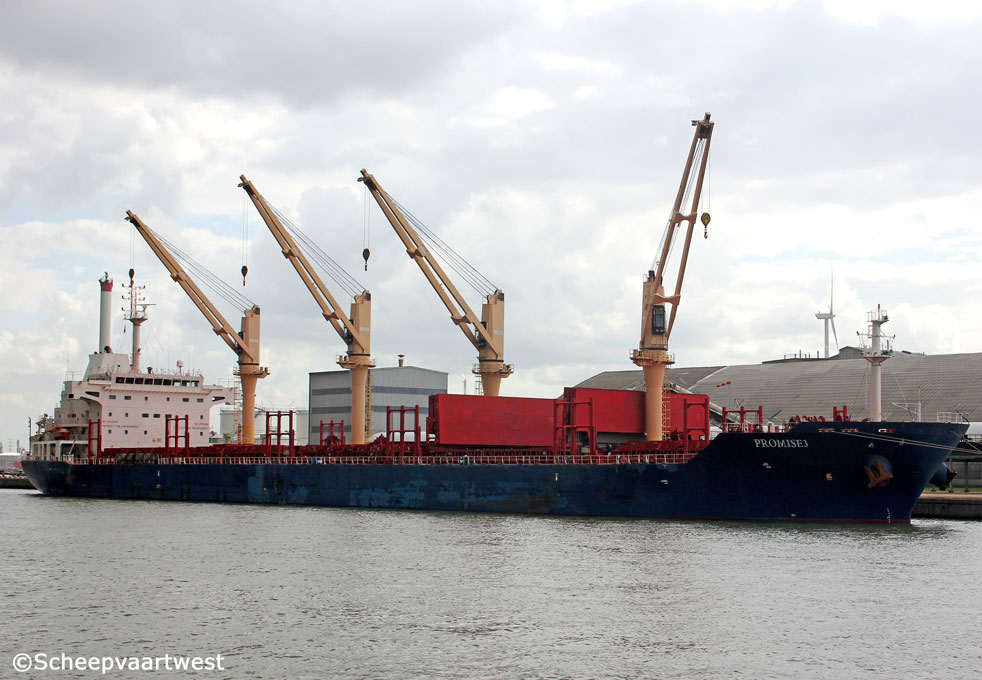

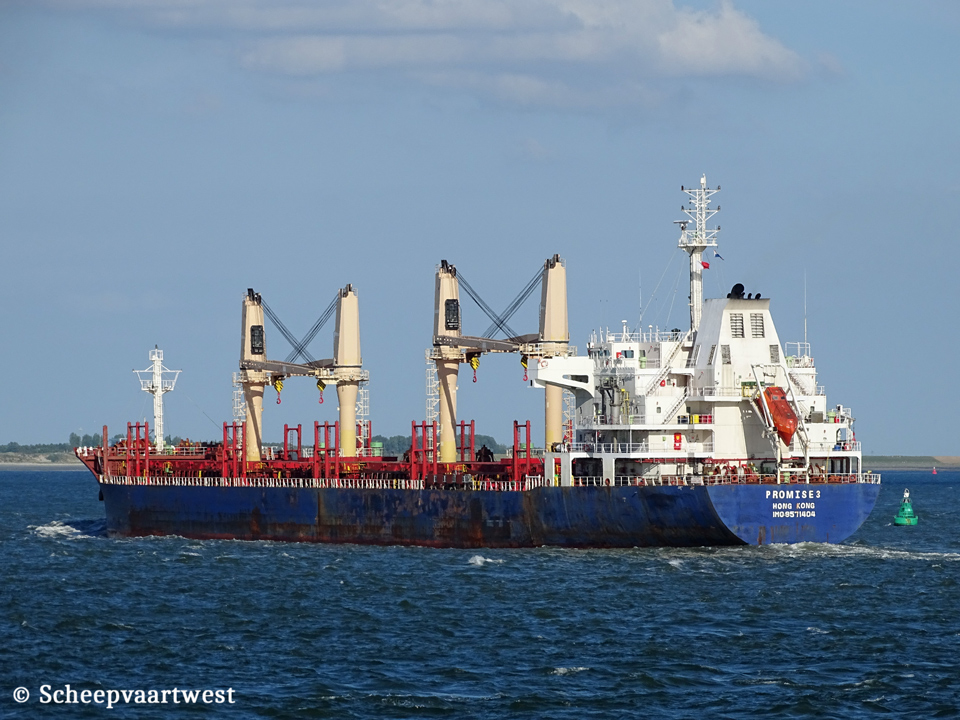

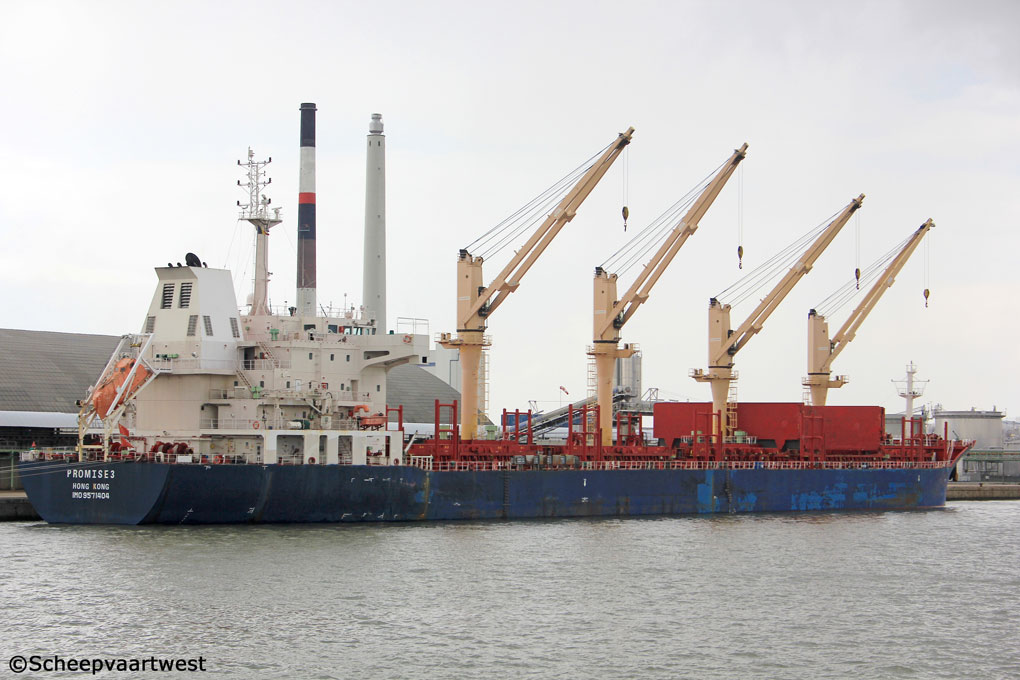

Promise 3 IMO 9571404 03   Promise 3 02   Promise 3 01
Westerschelde 01/07/19   Antwerpen 07/05/15 Antwerpen 07/05/15


Name

PROMISE 3

Previous names

25/10/2010 - 23/01/2011 Aktor II

23/01/2011 - 23/01/2011 Promise 3

23/01/2011 - 28/01/2011 Aktor II

Type

Bulk carrier - Carriage of dangerous goods

IMO-number

9571404

Call sign

VRHZ5

Flag

Hong Kong - Special Administrative Region of the People's Republic of China

Port of registry

Hong Kong

Previous flags

  • 25/10/2010 - 23/01/2011 Republic of Liberia, Monrovia

  • 23/01/2011 - 23/01/2011 Hong Kong Special Administrative Region of the People's Republic of China, Hong Kong

  • 23/01/2011 - 28/01/2011 Republic of Liberia, Monrovia

GT

22.927 t registered

Suez: 23.703,89 t

DWT

Summer: 32.311,65 t

NT

10.616 t registered

Panama: 19.102 t

Suez: 21.282,29

Length

180,92 m overall

Breadth

30,00 m moulded

Reg. dimensions L x B x D

173,27 x 30,00 x 14,80 m

Rule dimensions L x B x D

173,03 x 30,00 x 14,80 m

Freeboard

5.027 mm

Depth

14,80 m moulded

Speed

14,5 knots

Built

2010

Keel laid

12/04/2010

Launch date

28/07/2010

Delivery date

22/10/2010

Builder

Samho Shipbuilding Co., Ltd.

Tongyoung

South Korea

Yard number

SH1225

Hull material

High strength steel

Ordinary strength steel

Hull type

Double hull

Watertight bulkheads

8

Main engine

1x MAN-B&W/HHI 6S46MC-C7 - 2 stroke single acting 6 cylinder 460 x 1.932 mm combustion engine 7.860 kW at 129,0 rpm

Build: 04/2010

Manufacturer: Hyundai Heavy Industries Co., Ltd., Engine & Machinery Division, Ulsan - South Korea

Propellers

1

Manufacturer: Hae Yang Metal Co., Ltd.

Boilers

1x Composite Boiler - 9,0 bar

Heating surface: 47,0 m²

Build: 05/2010

Manufacturer: Aalborg Industries Ltd.

Generators

3x Diesel generatorsets each 550 kW / 687 kVA - 450 Volt

Manufacturer: HHI Electro Electric System

Number of holds

5

Cargo hold capacity

Bale: 42.867,1 m³

grain: 46.178,2 m³

Number of tanks

Ballast: 12

Fuel oil: 12

Lubricating oil: 11

Diesel oil: 4

Fresh water: 4

Chain: 2

Waste water: 2

Sludge: 2

Sewage: 2

Tank capacities

Diesel Oil: 188,2 m³

Freshwater: 380,4 m³

Fuel Oil: 1.695,2 m³

Lube Oil: 145,5 m³

Tank Ballast: 11.692,2 m³

Lifting equipment

1x E/R overhead crane - SWL 3,0 t

Manufacture: Dae Kyung Co., Ltd.

1x Provision crane - SWL 3,0 t

Manufacture: Dongnam Marine Crane Co., Ltd.

Cargo gear

4x Deck crane - SWL 30,0 t each

Manufacture: Nantong Rainbow Heavy Machinerics Co., Ltd.

Manager

STX Marine Service Co., Ltd.

Panocean Building

102 Jungang-daero

Jung-gu Busan 600-725

South Korea

ISM Manager

Fleet Management Hong Kong

Hong Kong

China

Owner

Promy 3 Limited Corp.

Suite B, 12/F, Two Chinachem Plaza

135 Des Voeux Road Central

Hong Kong

China

Registered owner

Promy 3 Limited Corp.

Care of Cargill International SA

Chemin de Normandie 14

1206 Geneva

Switzerland

Renamed

2022 Woohyun Sky

South Korea, Jeju - Call sign: D7XE

Owner a Manager: Woohyun Shipping Co., Ltd.

Technical manager: W Ocean Co., Ltd.

Latest data adjustment

29 June 2023
