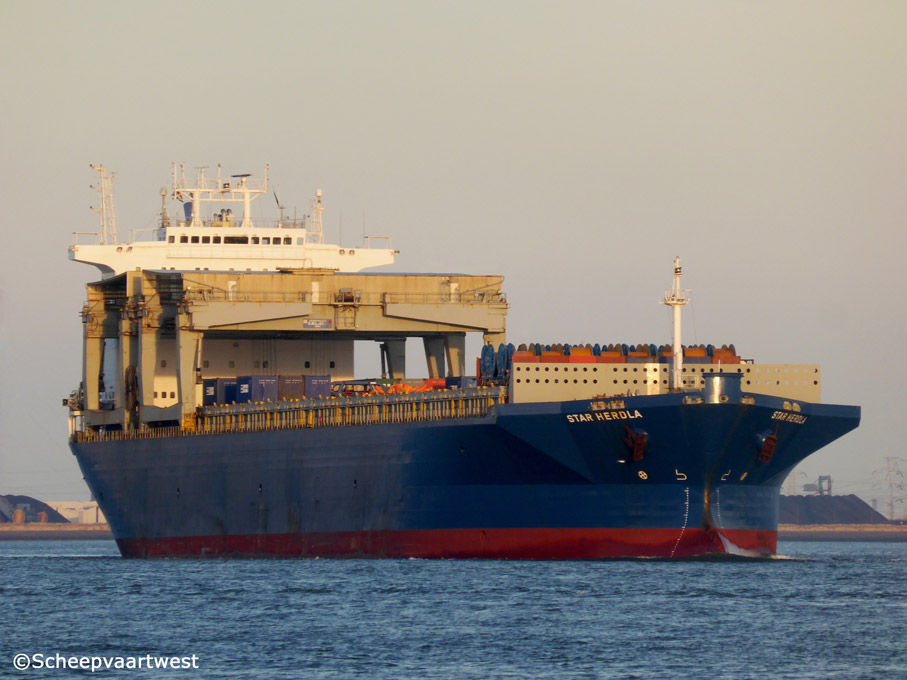

Star Herdla 01

Westerschelde 22 March 2015

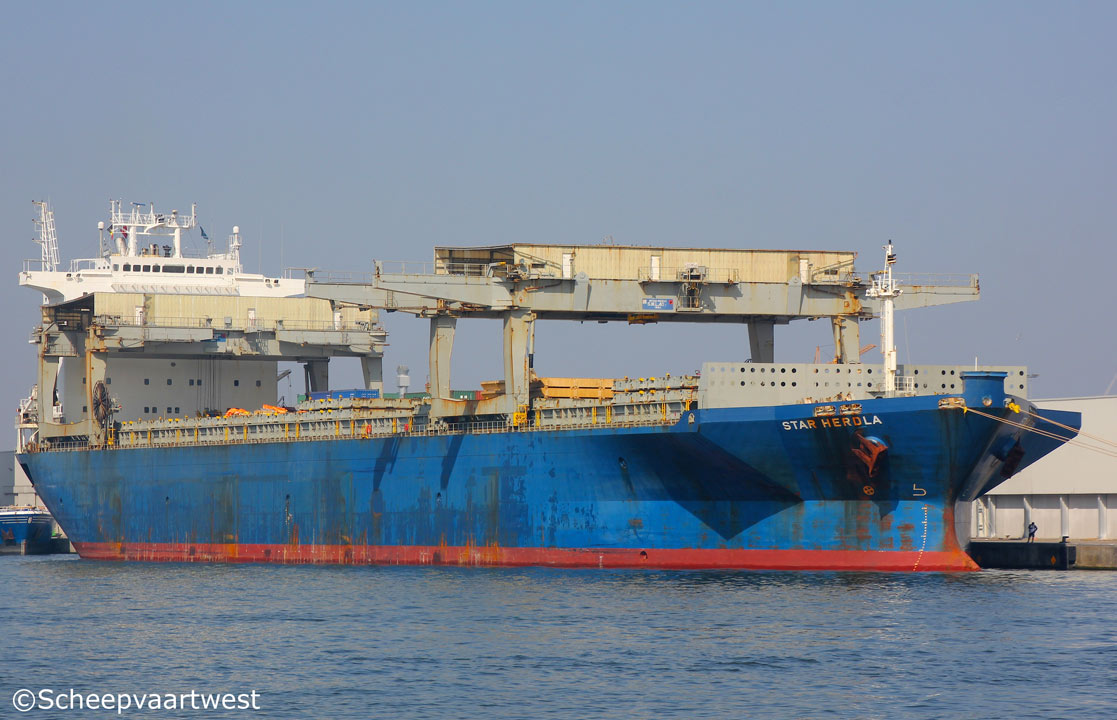

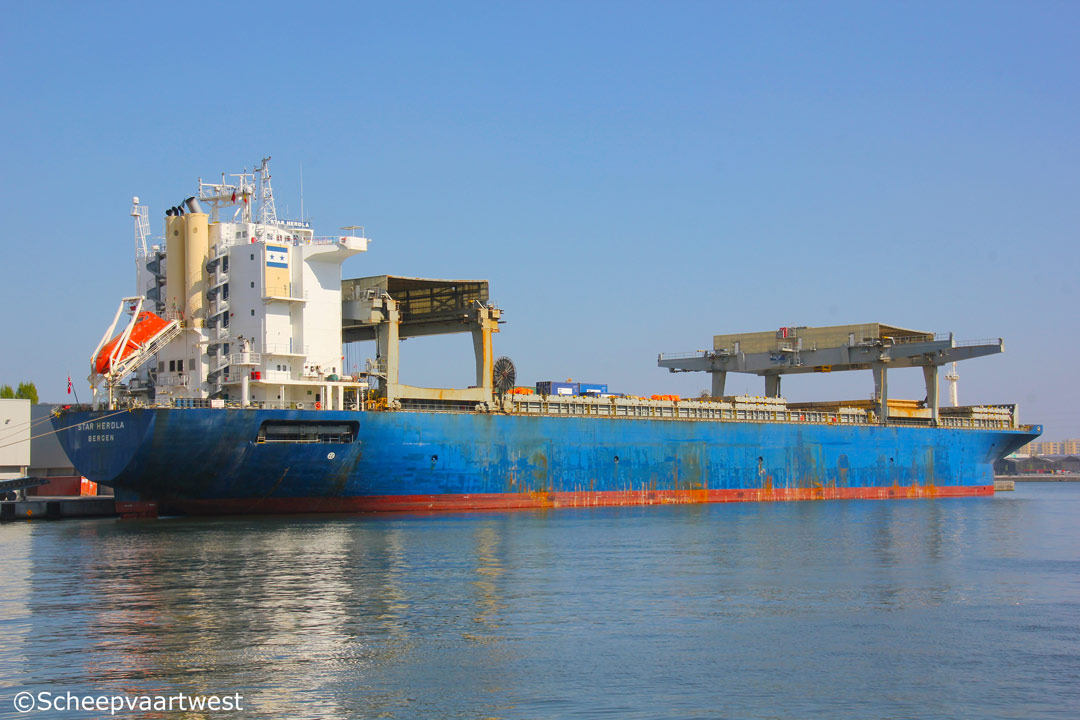

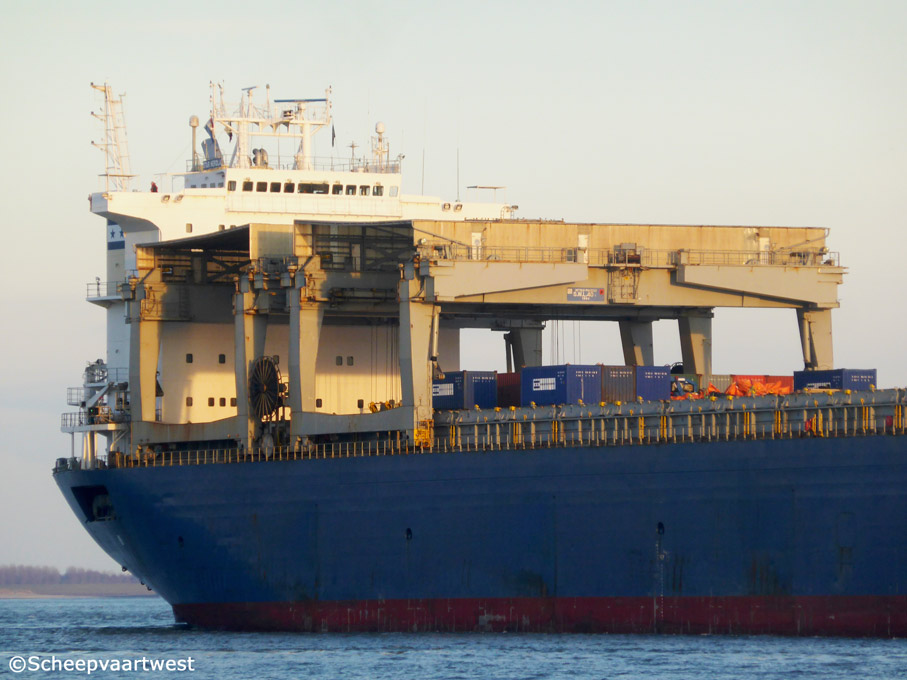

Star Herdla 03   Star Herdla 04   Star Herdla 05
Westerschelde 22/03/15   Antwerpen 09/04/17   Antwerpen 09/04/17



Name

STAR HERDLA

Type

General cargo ship - heavy cargo - equipped for carriage of containers - Open hatch

IMO-number

9071557

Call sign

LAVD4

Flag

Norway

Port of registry

Bergen

GT

32.744 t

DWT

Summer: 46.580 t

NT

13.647 t

Number of 20ft containers

In hold: 1.350

on deck: 600

Total: 1.950

Reefer capacity

20

Length

198,00 m overall

187,00 m between perpendiculars

Breadth

31,03 m extreme

Draught

12,66 m

Freeboard

3.316 mm

Depth

19,00 m

Speed

16,0 knots at full load

Built

1994

Keel laid

20.01.1994

Launch date

18.05.1994

Date of completion

18.10.1994

Builder

Mitsui Tamano Engineering & Shipbuilding Co., Ltd.
Tamano
Japan

Yard number

1401

Hull material

Steel

Hull type

Double hull

Main engine

1x B&W-Mitsui 6S60MC 6S60NC - 4 stroke 6 cylinder 105 x 125 mm diesel engine 10.527 kW / 14.293 hp at 96,0 rpm

Propellers

1x Fixed pitch propeller - aft at 96,0 rpm

Boilers

1x Auxiliary boiler, exhaust gas heated 188,0 m² / 6,0 bar

1x Auxiliary boiler, oil/gas fired 22,0 m² / 6,0 bar

Generators

2x BMV KRG-8 diesel generatorsets each 1.625 kVA - 1.300 kW - 1.895 hp

1x Yanmar 6CHL-TH diesel generatorset 900 kVA - 720 kW - 1.053 hp

Emergency generator

1x Diesel generatorset 100 kVA - 80 kW - 121 hp

Bow thruster

1x 1.500 bhp, forward

1x 1.500 bhp, aft

Number of holds

11

Hold capacity

Bale:

Hold 1: 4.049 m³ / 142.983 ft³

Hold 2: 5.511 m³ / 194.603 ft³

Hold 3: 6.206 m³ / 219.179 ft³

Hold 4: 6.206 m³ / 219.179 ft³

Hold 5: 6.206 m³ / 219.179 ft³

Hold 6: 6.206 m³ / 219.179 ft³

Hold 7: 6.206 m³ / 219.179 ft³

Hold 8: 6.206 m³ / 219.179 ft³

Hold 9: 6.206 m³ / 219.179 ft³

Hold 10: 5.722 m³ / 202.079 ft³

Hold 11: 2.765 m³ / 97.635 ft³

Total: 61.489 m³ / 2.171.553 ft³

Tank capacities

Fuel oil: 2.338,2 m³

Water ballast: 15.547 m³

Cargo gear

2x Cranes - SWL 40,0 t each

Manager

Grieg Star Shipping AS
Grieg-Gaarden
C. Sundtsgate 17/19
Bergen
Norway

Owner

Grieg International II A/S
Bergen
Norway

Latest data adjustment

12 May 2017
