Westerschelde 05 March 2015 |
|
Name |

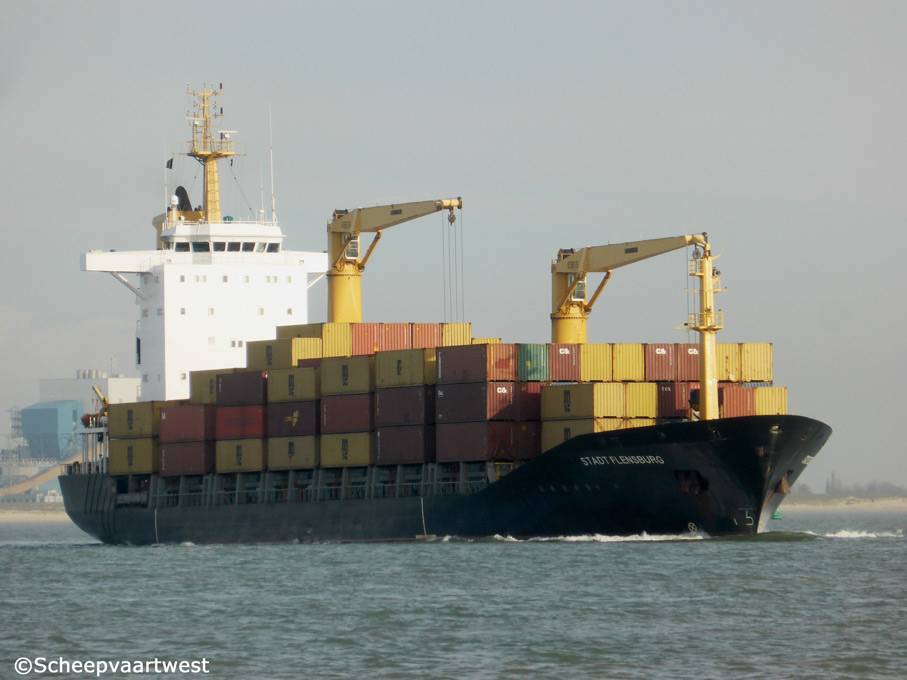

STADT FLENSBURG |
|
Previous names |
2003 Launch as: Alasa 09.2003 - 10.2006 Melfi Havana 10.2006 - 08.2008 EWL Canada |
|
Type |
Multi-purpose dry cargo ship - Strengthened for heavy cargo - Equipped for carriage of containers |
|
IMO-number |
9235610 |
|
Call sign |
V2BD8 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John's |
|
GT |
9.528 t |
|
DWT |
Summer: 12.895 t |
|
NT |
4.703 t |
|
Number of 20ft containers |
1.083 |
|
Reefer capacity |
200 |
|
Length |
146,45 m overall 139,48 m registered |
|
Breadth |
22,70 m registered |
|
Draught |
8,32 m |
|
Forecastle |
10,97 m |
|
Poop |
12,95 m |
|
Depth |
11,20 m moulded |
|
Built |
2003 |
|
Keel laid |
12.12.2001 |
|
Launch date |
02.06.2003 |
|
Date of completion |
06.10.2003 |
|
Builder |
MW Abwicklungsgesellschaft GmbH |
|
Yard number |
242 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
8 |
|
Continuous decks |
2 |
|
Main engine |
1x 7L58/64 - 4 stroke 7 cylinder 580 x 640 mm diesel engine - 9.730 kW at 428 rpm Year of manufacture: 2002 Manufacturer: MAN B&W Diesel GmbH |
|
Propellers |
1x Controllable pitch propeller - aft at 131,0 rpm |
|
Boilers |
1x Thermal oil heater, oil fired - 10,0 bar Heating surface: 22,2 m² Year of manufacture: 2002 Manufacturer: Apparate- und Kesselbau AKB GmbH 1x Thermal oil heater, exhaust gas heated - 10,0 bat Heating surface: 80,2 m² Year of manufacture: 2002 Manufacturer: TUBE-TEC Rohrverformungstechnik GmbH |
|
Electric installations |
3x Plants each 440/ 220 V - 714 kVA 1x Plant 440 V - 1.500 kVA 1x Plant 440 V - 100 kVA |
|
Shaft generator |
1x 1.500 kVA / 1.200 kW |
|
Generators |
3x Main diesel generatorsets each 714 kVA / 571 kW |
|
Emergency generator |
1x Diesel generatorset 100 kVA |
|
Compressed air receivers |
2x Receivers each 1.250 litres - 30,0 bar 1x Receiver 30 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster 600 kW, forward |
|
Tank capacities |
Fuel oil: 1.379 m³ Water ballast: 4.684 m³ |
|
Anchor equipment |
3x Anchors weight each 6.000 kg Chain length: 577,50 m |
|
Cargo gear |
2x Cranes - SWL 45,0 t each |
|
Manager |
Ahrenkiel Steamship GmbH & Co. KG |
|
Owner |
Thien & Heyenga Bereederungs- und Befrachtungsgesellschaft m.b.H. |
|
Registered owner |
MS "STADT FLENSBURG" T+H Schiffahrts GmbH & Co. KG |
|
Latest data adjustment |
23 April 2015 |
