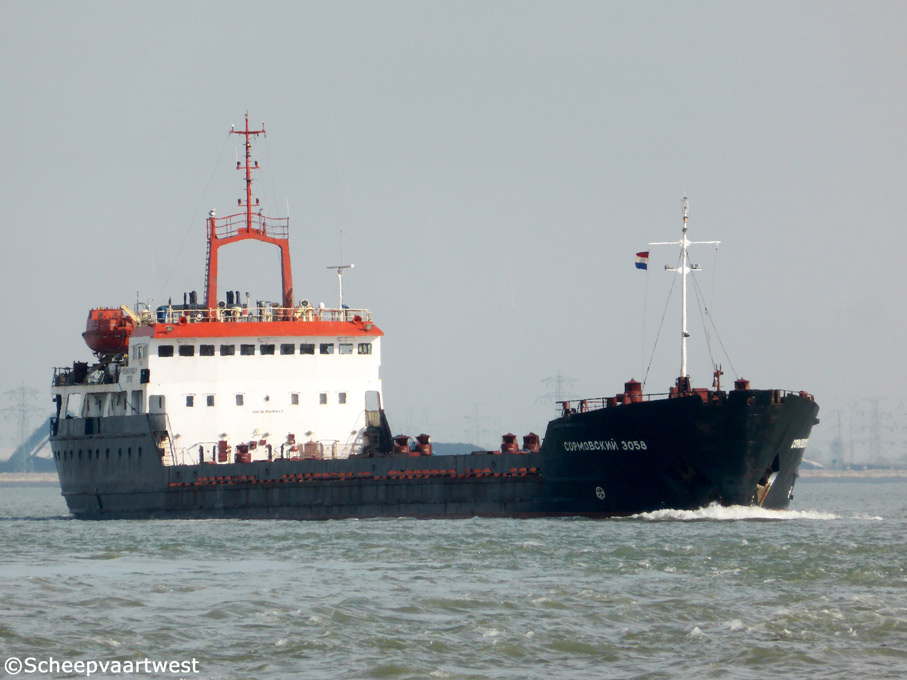

Sormovskiy 3058 01

Westerschelde 07 March 2015



Name

SORMOVSKIY-3058

Russian name

СОРМОВСКИЙ-3058

Type

Twin-screw multi-purpose dry cargo motor ship with bow thruster

Sub type

Grain - Wood products - River/sea

IMO-number

8419647

Call sign

UGYM

Flag

Russia

Port of registry

Bolshoy port of St.-Petersburg

GT

3.041 t

DWT

Summer: 3.853 t

NT

1.204 t

Displacement

4.867 t

Number of 20ft containers

90

Length

119,21 m overall

Breadth

13,42 m extreme

Draught

Sea: 4,25 m

River: 3,60 m

Depth

6,00 m

Speed

10,5 knots

Built

1987

Date of completion

25.05.1987

Builder

ENVC - Estaleiros Navais de Viana do Castello SA.
Viana Do Castelo
Portugal

Yard number

137

Hull material

Steel

Continuous decks

1

Main engine

2x Liebknecht 6NVDS 48A-2U - 6 cylinder diesel engine each 640 kW total 1.740 hp

Built: 1986 - German Democratic Republic

Propellers

2x Fixed pitched solid propeller - 4 blades

Generators

3x Generators each 100 kVA

Number of hold

4

Hold 1: 17,60 x 11,40 x 6,00 m

Hold 2&3: 22,00 x 11,40 x 6,00 m

Hold 4: 15,40 x 11,40 x 6,00 m

Cargo hold capacity

Hold 1: 1.005 m³

Hold 2&3: 1.370 m³

Hold 4: 955 m³

total: 4.700 m³ / 167.300 ft³

Number of hatches

4

Hatch 1&2: 12,60 x 9,20 m

Hatch 3&4: 18,70 x 9,20 m

Manager

North Western Shipping company
St. Petersburg
Russia

Owner

North-Western Shipping Company JSC
37, Bolshaya Morskaya ulitsa
Saint-Petersburg, 190000
Russia

Latest data adjustment

29 April 2015
