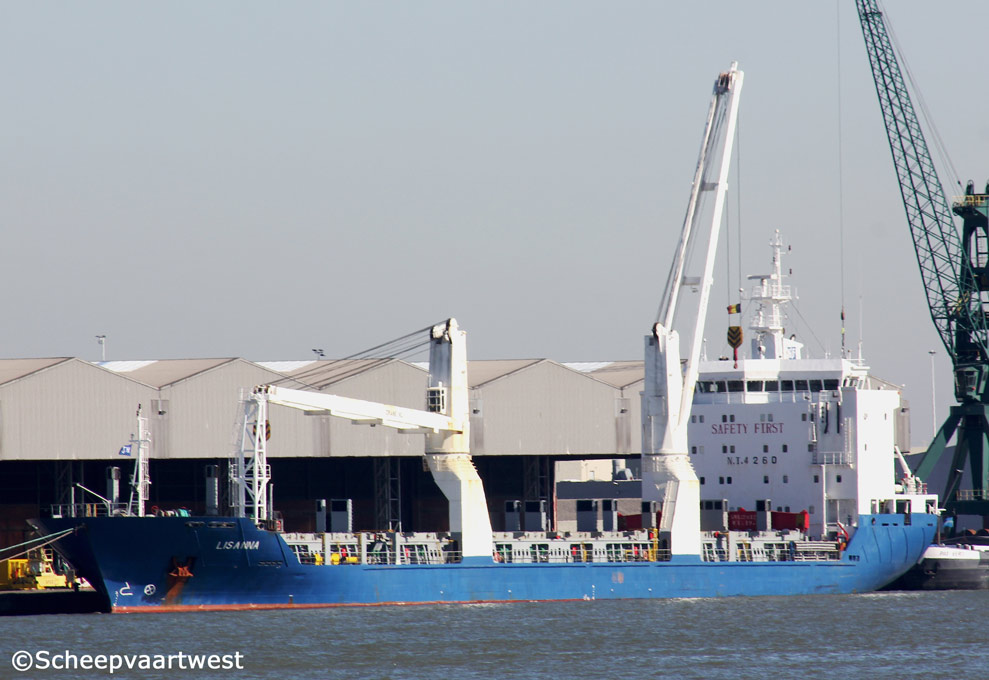

Lisanna - IMO 9283954

Antwerpen 12 March 2013

Name

LISANNA

Previous names

2004 - 05.2006 Beluga Efficiency

05.2006 - 06.2007 BBC Carolina

06.2007 - 04.2011 Beluga Efficiency

04.2011 - 12.2011 Lilia

12.2011 - 10.2012 Freese Scan

10.2012 - 01.2015 BBC Washington

Type

Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo

IMO-number

9283954

Call sign

V2OP8

Flag

Antigua & Barbuda

Port of registry

St. John's

GT

9.611 t

DWT

Summer: 12.786 t

NT

4.260 t

Number of 20ft containers

673

Length

138,07 m overall

130,71 m registered

Breadth

21,00 m registered

Draught

8,00 m

Forecastle

9,96 m

Poop

12,60 m

Depth

11,00 m moulded

Speed

14,0 knots

Built

2004

Keel laid

09.12.2002

Launch date

18.07.2003

Date of completion

29.04.2004

Builder

CSC Jiangdong Shipyard
9, Jiangdong Road
Wuhu, 241001 Anhui
People's Republic of China

Yard number

JD12000-1

Hull material

Shipbuilding steel (standard)

Hull type

Partly double bottom

Watertight bulkheads

6

Continuous decks

2

Main engine

1x MaK 6M43 - 4 stroke 6 cylinder 430 x 610 mm diesel engine - 5.4 kW at 500 rpm

Year of manufacture: 2003

Manufacturer: Caterpillar Motoren GmbH & Co. KG
Falckensteiner Str. 2
24159 Kiel
Federal Republic of Germany

Propellers

1x Controllable pitch propeller - aft at 132 rpm

Boilers

1x Thermal oil heater, oil fired - 10,0 bar

Heating surface: 44,9 m²

Year of manufacture : 2003

Manufacturer: Apparate- und Kesselbau AKB GmbH
Baiertaler Str. 98
69168 Wiesloch
Federal Republic of Germany

1x Thermal oil heater, exhaust gas heated - 10,0 bar

Heating surface: 88,6 m²

Year of manufacture : 2003

Manufacturer: Alfa Laval Aalborg B.V.
Ohmweg 8
3208 KE Spijkenisse
The Netherlands

Electric installations

3x Plants each 400/230 V - 493 kVA

1x Plant 400 V - 875 kVA

1x Plant 400 V- 124 kVA

Shaft generator

1x 875 kVA

Generators

3x Main diesel generatorsets each 493 kVA

Emergency generator

1x Diesel generatorset 124 kVA

Compressed air receivers

2x Receivers each 1.000 litres - 30,0 bar

1x Receiver 160 litres - 30,0 bar

1x Receiver 1.000 litres - 10,0 bar

Bow thruster

1x Transverse thruster 500 kW, forward

Tank capacities

Fuel oil: 947 m³

Ballast water: 5.003 m³

Anchor equipment

3x Anchors weight each 4.590 kg

Chain length 550,00 m

Cargo gear

2x Cranes - SWL 120 t each

Crew size

20

Manager

Freese Shipping GmbH & Co. KG
An der Werft 4
21680 Stade
Federal Republic of Germany

Registered owner

MS "LISANNA" Kai Freese GmbH & Co. KG
An der Werft 4
21680 Stade
Federal Republic of Germany

Latest data adjustment

05 April 2015
