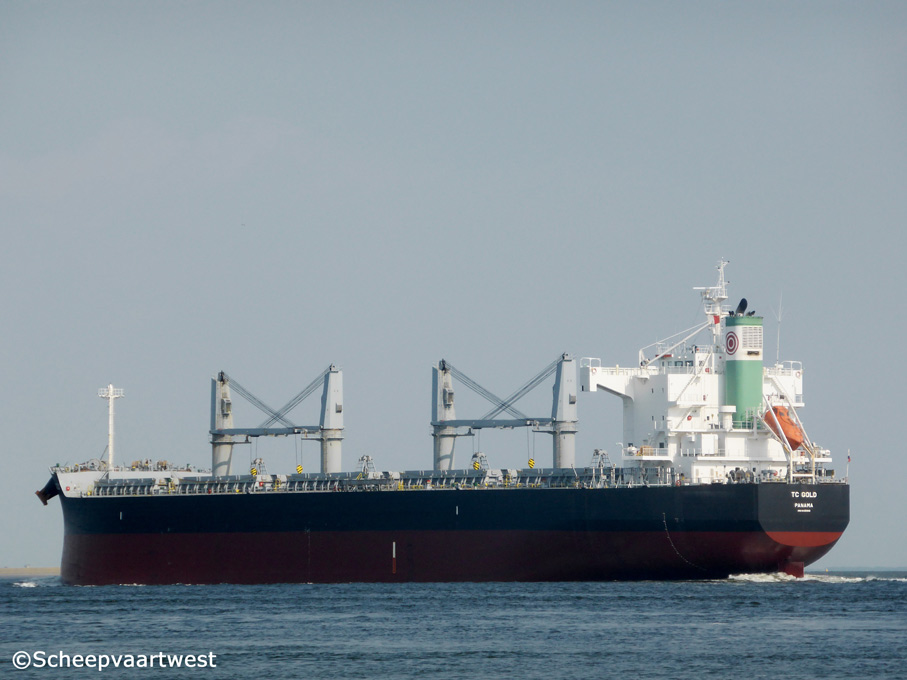

TC Gold 01

Westerschelde 26 June 2014



Name

TC GOLD

Type

Bulk carrier - Strengthened for heavy cargo loading

IMO-number

9425942

Call sign

3FJG9

Flag

Republic of Panama

Port of registry

Panama City

GT

32.287 t

DWT

Summer: 58.096 t

NT

19.458 t

Length

189,99 m

Breadth

32,26 m

Draught

Summer: 12,83 m

Moulded L x B x D

185,60 x 32,26 x 18,00 m

Registered L x B x D

185,78 x 32,26 x 18,00 m

Freeboard

5.225 mm

Depth

18,00 m moulded

Speed

Max.: 15,9 knots

14,2 knots ballast

13,5 knots laden

Built

2011

Keel laid

31.03.2010

Launch date

14.10.2010

Date of completion

11.01.2011

Builder

Tsuneishi Heavy Industries (CEBU) Inc.
Balamban
Philippines

Yard number

127

Hull material

Steel

Main engine

1x MAN-B&W/Mitsui 6S50MC - 2 stroke single acting 6 cylinder 500 x 2.000 mm diesel engine - 8.450 kW / 10.600 hp at 119,0 rpm

Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works

Propeller shaft

1x Oil lubrication shaft with monitoring device

Diameter: 490 mm

Propellers

1

Boilers

1x Auxiliary vertical boiler - 7,0 bar

Evaporation: 2,22 t/h

Manufacturer: Osaka Boiler Mfg., Co., Ltd.

Generators

4x Generators - 1.900 kVA

Number of holds

5

Cargo hold capacity

Grain:

Hold 1: 449.221 ft³

Hold 2: 543,074 ft³

Hold 3: 541,040 ft³

Hold 4: 490.388 ft³

Hold 5: 490.388 ft³

Total: 2.567.037 ft³ / 72.122 m³

Bales: 70.122 m³

Number of hatches

5

Cargo gear

4x Cranes - SWL 30, t each

4x Grabs 12,0 m³ each

Manager

Filharmony Shipmanagement Inc.
Manila
Philippines

Owner

Hakuyo Kisen
Imabari
Japan

Registered owner

Helmstar Shipping S.A. & Hakuyo Kisen Co.,Ltd.

Latest data adjustment

24 March 2015
