Westerschelde 24 June 2014 |
|
Name |

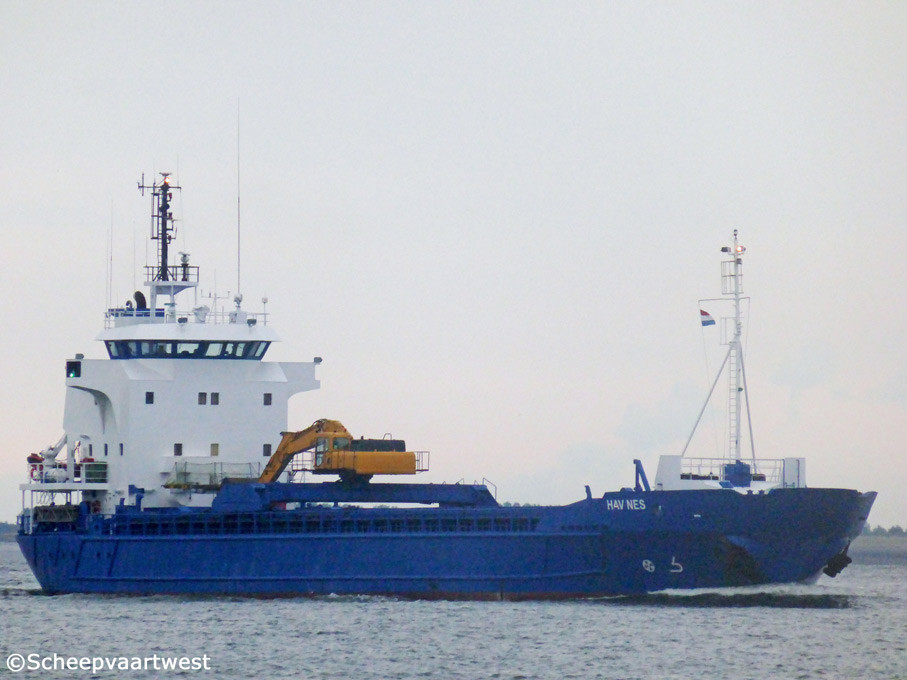

HAV NES |
|
Previous names |
1991 - 12.2009 Sava Hill |
|
Type |
General cargo ship - heavy cargo Single deck |
|
IMO-number |
8719097 |
|
Call sign |
OZ2088 |
|
Flag |
Faeroe Islands |
|
Port of registry |
Runavik |
|
Previous flags |
1991 - 1992 Norway 1992 - 2009 Republic of Panama |
|
GT |
2.026 t |
|
DWT |
Summer: 3.080 t |
|
DWCC |
2.900 t |
|
NT |
885 t |
|
Number of 20ft containers |
98 |
|
Length |
74,65 m overall 70,02 m between perpendiculars |
|
Breadth |
12,70 m |
|
Draught |
6,10 m fully laden |
|
Air draft |
20,10 m fully laden |
|
Freeboard |
2.211 mm |
|
Depth |
8,60 m |
|
Speed |
10,5 knots |
|
Built |
1991 |
|
Keel laid |
01.08.1988 |
|
Launch date |
11.06.1990 |
|
Date of completion |
22.03.1991 |
|
Builder |
DTSG Sava Shipyard |
|
Yard number |
299 |
|
Hull material |
Steel |
|
Movable bulkhead |
2x Movable for 3 compartments or 4 half for 5 compartments |
|
Continuous decks |
1 |
|
Main engine |
1x Bergen KRM-8 - 4 stroke 8 cylinder 250 x 300 mm diesel engine - 1.470 kW / 1.997 bhp at 750 rpm |
|
Propellers |
1x Screw Propeller Controllable pitch - aft at 190 rpm |
|
Electric installations |
Power voltage: 380 V Lighting voltage: 220 V Frequency: 50 Hz |
|
Generators |
1x Diesel generatorset 550 kVA - 440 kW |
|
Bow thruster |
1x Ulstein 300 bhp |
|
Number of holds |
1 Dimensions: 47,0 x 10,20 x 8,20 m |
|
Hold capacity |
130.212 ft³ / 3.685 m³ |
|
Number of hatches |
1 |
|
Hatch cover |
MacGregor Navire hydraulic folding |
|
Max. permitted loads |
Tan top: 12,0 t/m² Hatch cover: 1,0 t/m² |
|
Anchor equipment |
155 m³ |
|
Cargo gear |
1x Komatsu PC450 Discharge: 350 t/h Built: 2007 |
|
Manager |
Frakt & Sandsoelan |
|
Registered owner |
Frakt & Sandsølan |
|
Latest data adjustment |
22 March 2015 |
