Westerschelde 29 March 2017 |
 |
 |
|
| Westerschelde 29/03/17 | Westerschelde 17/06/14 |
|
Name |

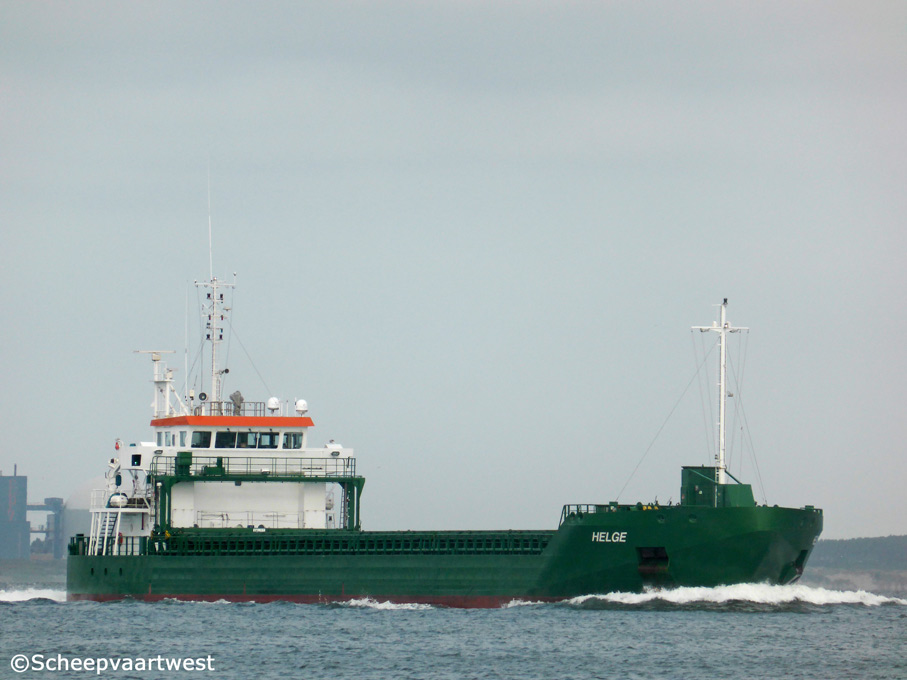

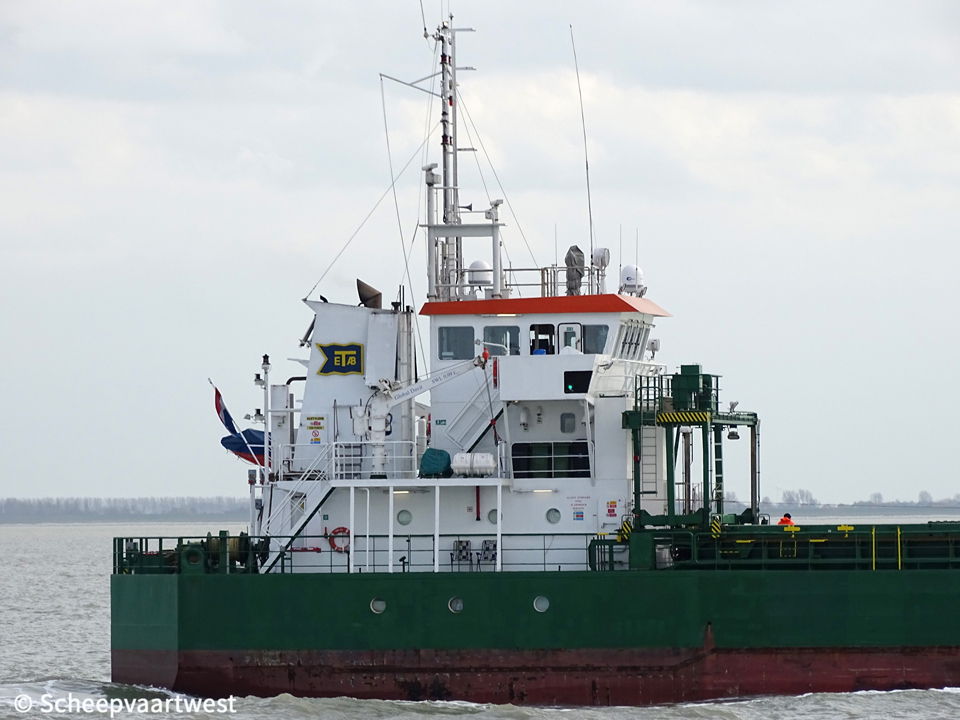

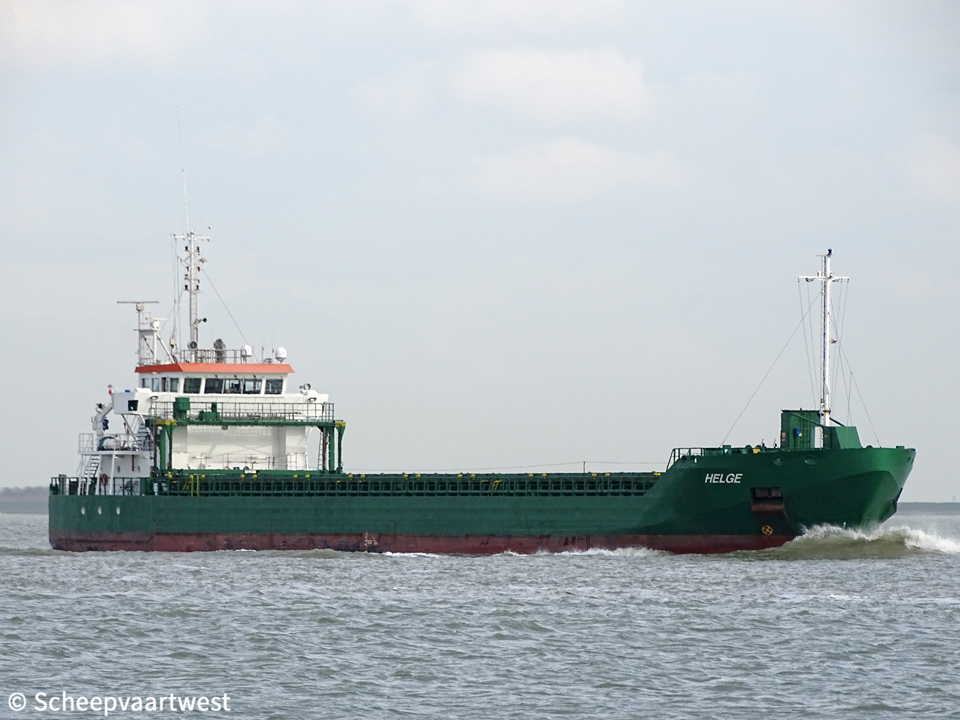

HELGE |
|
Type |
Multi-purpose general dry cargo ship - Single decker - Box-shaped |
|
IMO-number |
9677404 |
|
Call sign |
PCSJ |
|
Flag |
The Netherlands |
|
Port of registry |
Delfzijl |
|
GT |
2.911 t |
|
DWT |
Summer: 5.110 t |
|
NT |
1.453 t |
|
Length |
89,00 m overall 84,99 m between perpendiculars |
|
Breadth |
13,35 m moulded |
|
Draught |
Max.: 6,14m |
|
Freeboard |
2.555 mm |
|
Depth |
8,70 m moulded |
|
Speed |
11,5 knots Eco: 9,0 knots |
|
Built |
2013 |
|
Launch date |
06/07/2013 |
|
Date of completion |
12/09/2013 |
|
Builder |
Ferus Smit Scheepswerf B.V. Westerbroek The Netherlands |
|
Yard number |
416 |
|
Hull material |
Steel |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä 6L26F - 4 stroke single acting 6 cylinder 260 x 320 mm combustion engine 1.860 kW / 2.649 bhp at 900 rpm Built: 18.01.2013 Builder: Wärtsilä, Trieste - Italy |
|
Propellers |
1x Screw propeller controllable pitch - aft at 211 rpm |
|
Shaft generator |
1x Stamford HCM 434D2 - 305 kVA - 244 kW |
|
Generators |
1x Sisu diesel generatorset 248 kVA - 198 kW - 306 hp 1x Sisu diesel generatorset 118 kVA - 94 kW - 306 hp |
|
Number of holds |
1 |
|
Total capacity of Holds |
5.949 m³ / 210.211 ft³ |
|
Tank capacities |
HFO: 230,2 m³ MDO: 41,1 m³ |
|
Manager |
Marin Ship Management B.V. |
|
Owner |
Erik Thun A/B |
|
Registered owner |
Rederij Helge |
|
Sister ships |
Alice |
|
Latest data adjustment |
26 February 2015 |
