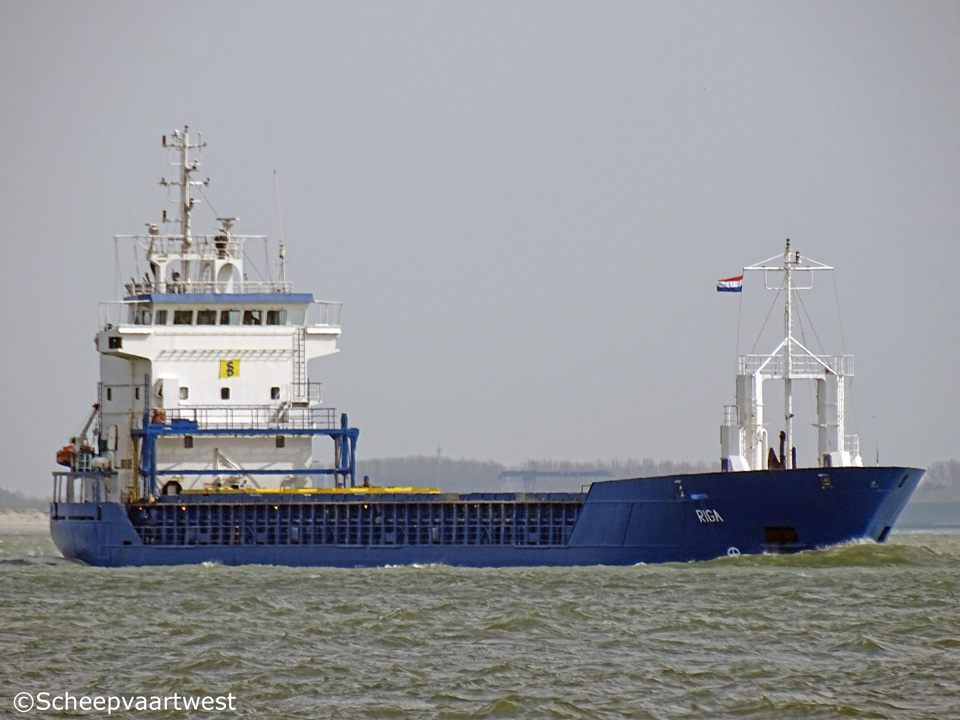

Westerschelde 09 April 2016 |
 |

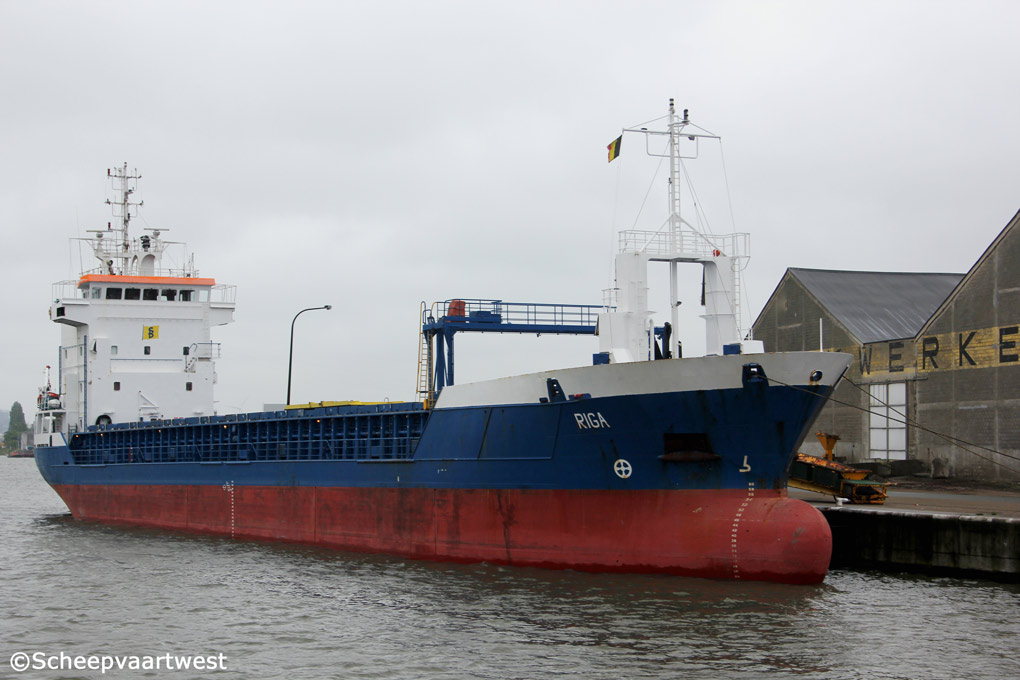

| Gent 10/05/14 |
|
Name |
RIGA |
|
Type |
General cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo Box Singledecker |
|
IMO-number |
9141376 |
|
Call sign |
9HA3749 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
Previous flag |
Antigua & Barbuda, St. John's - Call sign: V2PA2 |
|
GT |
2.810 t |
|
DWT |
4.220 t |
|
NT |
1.562 t |
|
Number of 20ft containers |
In hold: 117 On deck: 96 Total: 213 |
|
Container capacity 14t |
156 |
|
Reefer capacity |
20 |
|
Length |
89,80 m overall 84,99 m registered |
|
Breadth |
13,17 m registered |
|
Draught |
5,72 m |
|
Air draft |
26,00 m |
|
Forecastle |
13,68 m |
|
Depth |
7,15 m moulded |
|
Speed |
Max.: 12,5 knots Eco: 10,5 knots |
|
Built |
1997 |
|
Keel laid |
09/12/1996 |
|
Launch date |
07/08/1997 |
|
Date of completion |
12/1997 |
|
Builder casco |
Santierul Naval Galati S.A. Galati Romania |
|
Builder completion |
B.V. Scheepswerf Damen Hoogezand Scheepswervenweg 13 9607 PX Foxhol The Netherlands |
|
Yard number |
919 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Double hull Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
4 |
|
Movable bulkhead |
2x Movable, max.: 3 compartments |
|
Continuous decks |
1 |
|
Main engine |
1x Deutz MWM TBD 645 L6 - 4 stroke 6 cylinder 330 x 450 mm combustion engine 2.200 kW at 600 rpm Year of manufacture: 1997 Manufacturer: Deutz MWM Motoren-Werke Mannheim AG |
|
Propellers |
1x Controllable pitch propeller - aft at 183 rpm |
|
Boilers |
1x Water heater, oil fired Year of manufacture: 1997 |
|
Electric installations |
1x Plant 380/220 V - 78 kVA 2x Plants each 380/220 V - 170 kVA 1x Plant 380 V - 750 kVA |
|
Shaft generator |
1x 750 kVA |
|
Generators |
2x Main diesel generatorsets each 170 kVA |
|
Emergency generator |
1x Diesel generatorset 78 kVA |
|
Compressed air receivers |
2x Receivers each 500 litres - 30,0 bar 1x Receiver 100 litres - 11,0 bar |
|
Bow thruster |
1x Transverse thruster, forward |
|
Number of holds |
1 Dimension: 62,00 x 11,00 x 8,43 m |
|
Hold capacity |
Bale & Grain: 5.718 m³ / 202.000 ft³ |
|
Number of hatches |
1 Dimension: 62,48 x 11,00 m |
|
Hatches type |
Pontoon hatch covers (10) which can be opened in various positions |
|
Max. permitted loads |
Tank top: 18,0 t/m² Hatch cover: 1,6 t/m² |
|
Ventilation |
6x Air-changes per hour (basis empty hold) |
|
Tank capacities |
Fuel oil: 240 m³ Lub oil: 15 m³ Fresh water: 41 m³ Ballast: 1.630 m³ |
|
Anchor equipment |
3x Anchors weight each 2.100 kg Chain length: 440,00 m |
|
Other equipment |
3x Separators: 1x IFO, 1x MGO, 1x Luboil 1x Fuel oil trim pump 1x bilge water separator, acc. to Marpol regulations 2x Bilge/ballast pumps, each 150 m³/h a 2,80 bar 1x Fire Fighting pump 1x Sewage pump 1x freshwater pressure set 1x CO2 Fire Fighting system for engine room and cargo hold |
|
Manager |
Vertom-Bojen Bereederungs GmbH & Co. KG Borgwardring 80 Moormerland 26802 Niedersachsen Germany |
|
Previous manager |
Bojen Bereederung GmbH & Co. KG Borgwardring 80 26802 Moormerland-Neermoor Federal Republic of Germany |
|
Owner |
Bojen MS "RIGA" KG Borgwardring 80 26802 Moormerland-Neermoor Federal Republic of Germany |
|
Renamed |
2020 Dancing Queen Republic of panama, Panama City - Call sign: 3FEP Owner: Dancing Queen Ltd. |
|
Latest data adjustment |
18 March 2021 |
