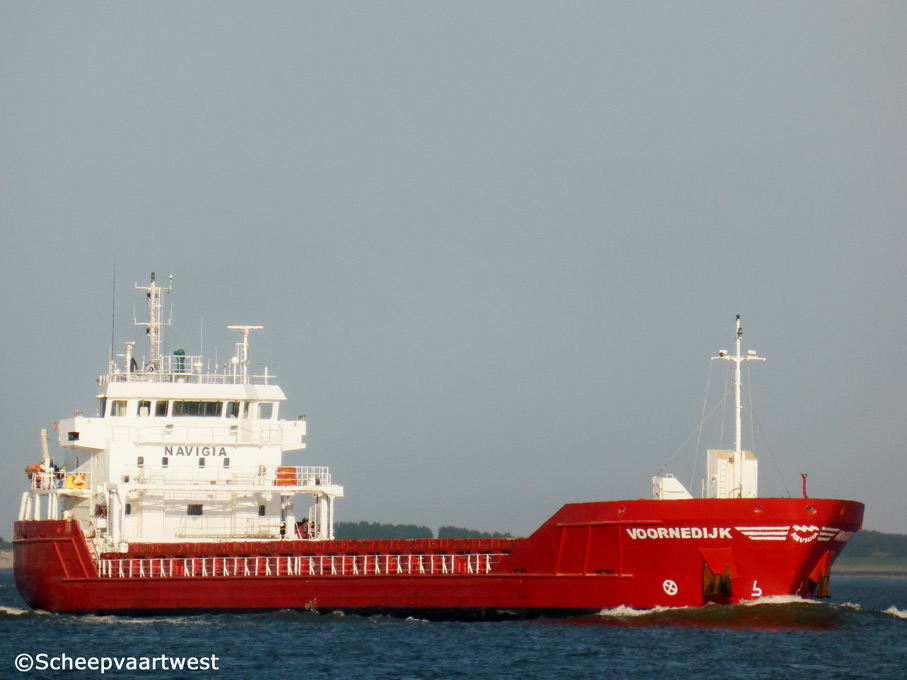

Westerschelde 23 July 2014 |
|
Name |
VOORNEDIJK |
|
Type |
Multi-purpose dry cargo ship - Strengthened for heavy cargo |
|
IMO-number |
9346706 |
|
Call sign |
PBOW |
|
Flag |
The Netherlands |
|
Port of registry |
Groningen |
|
GT |
2.984 t |
|
DWT |
Summer: 4.891 t |
|
NT |
1.598 t |
|
Length |
89,95 m overall 84,94 m between perpendiculars |
|
Breadth |
14,40 m moulded |
|
Draught |
Max.: 6,22 m |
|
Depth |
7,85 m moulded |
|
Speed |
11,5 knots |
|
Built |
2009 |
|
Keel laid |
14/12/2007 |
|
Launch date |
22/06/2008 |
|
Date of completion |
08/01/2009 |
|
Builder |
Chowgule & Company Private Ltd. Shipbuilding Division Loutulim Near Borim Bridge Loutulim Road Loutulim, 403718 Republic of India |
|
Yard number |
C0177 |
|
Hull material |
Shipbuilding steel (standard) Higher tensile steel |
|
Hull type |
Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
2 |
|
Continuous decks |
1 |
|
Main engine |
1x Mak 6M25 - 4 stroke single acting 6 cylinder 255 x 400 mm combustion engine 1.980 kW at 750 rpm Year of manufacture: 2006 Manufacturer: Caterpillar Motoren GmbH & Co. KG Falckensteiner Str. 2 24159 Kiel Federal Republic of Germany |
|
Propellers |
1x Controllable pitch propeller - aft at 158 rpm |
|
Electric installations |
1x Plant 400 V - 210 kVA 1x Plant 400 V - 390 kVA 1x Plant 400 V - 210 kVA |
|
Shaft generator |
1x 390 kVA |
|
Generators |
1x Main diesel generatorsets 210 kVA |
|
Emergency - Harbour gen. |
1x Diesel generatorset 201 kVA |
|
Compressed air receivers |
2x Receivers each 250 litres - 30,0 bar |
|
Bow thruster |
1x 250 kW, forward |
|
Anchor equipment |
3x Anchors weight each 2.100 kg Chain length: 440,00 m Diameter: 36 mm |
|
Manager |
Navigia Shipmanagement B.V. Bornholmstraat 82 9723 AZ Groningen The Netherlands |
|
Registered owner |
Beheermaatschappij MS "VOORNEDIJK" B.V. Johan van Zwedenlaan 1 9744 DX Groningen The Netherlands |
|
Latest data adjustment |
18 June 2020 |
