Antwerpen 24 July 2014 |
 |
| Antwerpen 24/07/14 |
|
Name |

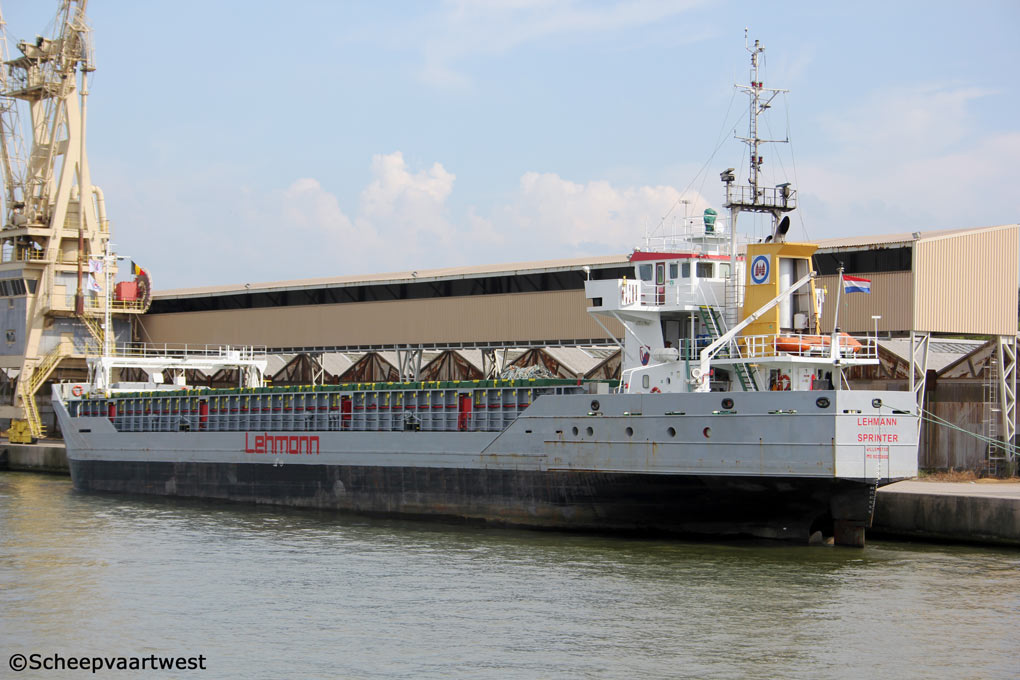

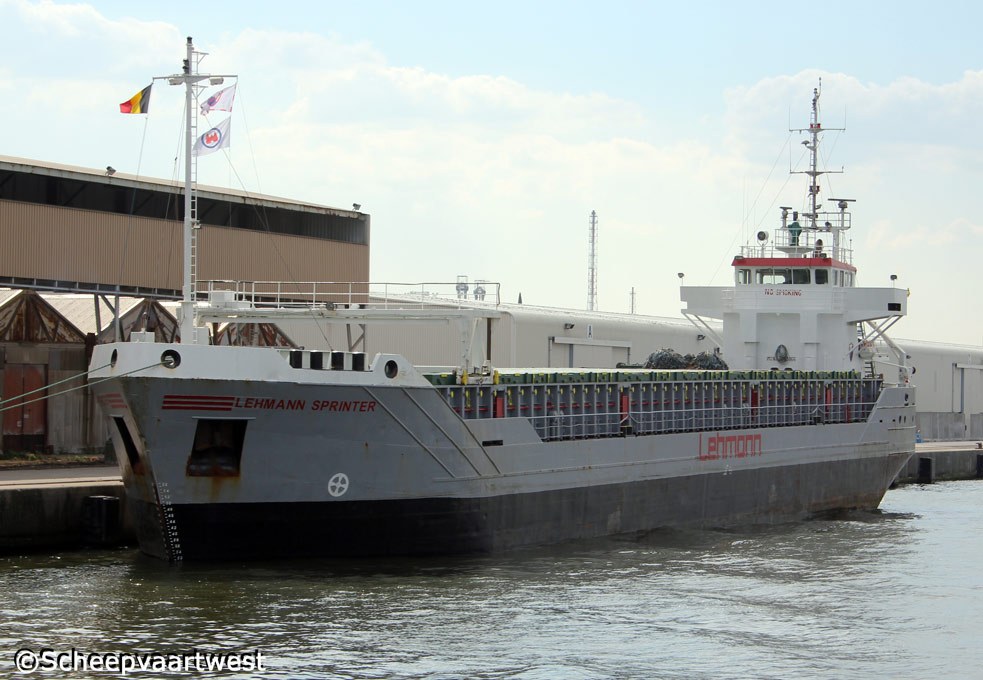

LEHMANN SPRINTER |
|
Previous names |
1992 - 12.1999 Zeus 12.1999 - 2012 Osteburg |
|
Type |
General cargo Multi-purpose dry cargo carrier |
|
IMO-number |
9033866 |
|
Call sign |
PJMR |
|
Flag |
Curaçao |
|
Port of registry |
Willemstad |
|
GT |
1.999 t |
|
DWT |
3.026 t |
|
DWCC |
Summer: 2.850 t Winter: 2.750 t |
|
NT |
1.202 t |
|
Number of 20ft containers |
128 |
|
Length |
82,04 m overall 78,00 m between perpendiculars |
|
Breadth |
12,51 m |
|
Draught |
4,95 m |
|
Air draft |
22,50 m |
|
Freeboard |
663 mm |
|
Depth |
5,60 m |
|
Speed |
Service: 9,5 knots Max.: 11,5 knots |
|
Built |
1992 |
|
Launch date |
06.12.1991 |
|
Date of completion |
30.01.1992 |
|
Builder |
Ferus Smit Scheepswerf The Netherlands Yard nummber: 270 |
|
Outfitting yard |
Scheepswerf Bijlsma B.V. The Netherlands |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Watertight compartments |
5 |
|
Movable bulkhead |
2 |
|
Continuous decks |
2 |
|
Main engine |
1x Deutz SBV 8M628 - 4 stroke 8 cylinder 240 x 280 mm internal combustion engine - 1.650 kW / 2.244 hp at 1.000 rpm Built: 1992 Builder: Deutz, Mannheim - Germany |
|
Electrical propulsion gen. |
1x 193 kW |
|
Propelling system |
1x Screw propeller controllable pitch at 225 rpm |
|
Electric installations |
Power voltage: 380 V Lighting voltage: 220 V Frequency: 50 Hz |
|
Generators |
2x Diesel generatorsets each 94 kVA - 75 kW - 232 hp |
|
Bow thruster |
1x 180 kW |
|
Number of holds |
1 53,20 x 10,30 x 7,88 m |
|
Hold capacity |
4.530 m³ / 160.000 ft³ |
|
Number of hatches |
1 53,20 x 10,30 m |
|
Hatch type |
Pontoon |
|
Fuel capacity |
161 m³ |
|
Manager |
Esmeralda Schiffahrt |
|
Time-charter |
31.08.2012 Hans Lehmann KG |
|
Previous names & owners |
1992 - 12.1999 Zeus - C.V. Scheepvaartbedrijf Gebr. Waker, Delfzijl, in beheer bij Wagenborg Shipping B.V., Delfzijl voor Hilco en Jan C. Waker. 12.1999 - 2012 Osteburg - Andrea W. Waller K.G., Delfzijl, in beheer bij Wagenborg Shipping B.V., Delfzijl voor W. Waller & Co. |
|
Registered owner |
MS ANDREA Schifffahrtsgesellschaft mbH & Co. KG |
|
Renamed |
02.2017 NS Sprinter - Republic of Panama - Call sign: 3ESE9 |
|
Latest data adjustment |
05 June 2017 |
