RMS Twisteden 03

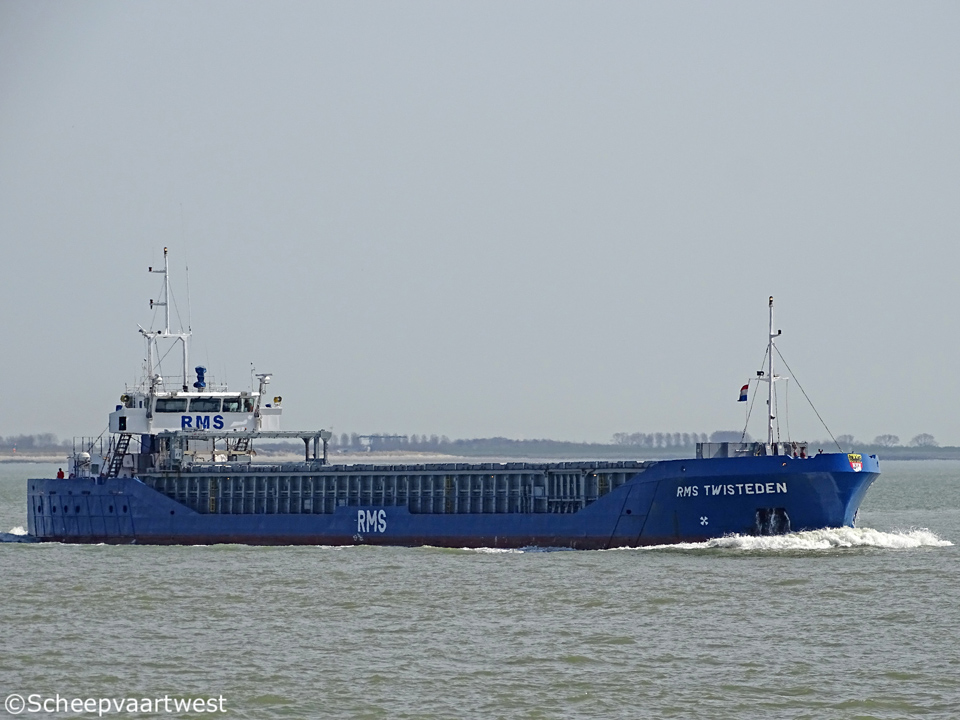

Westerschelde 07 April 2018



RMS Twisteden 02   RMS Twisteden 01   RMS Twisteden 04

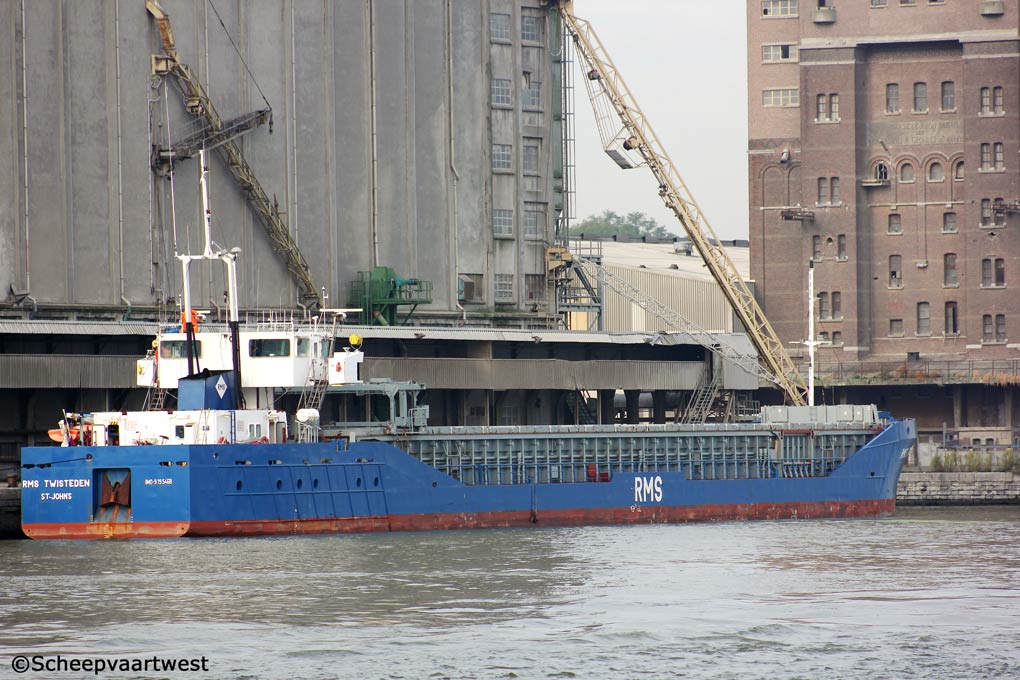

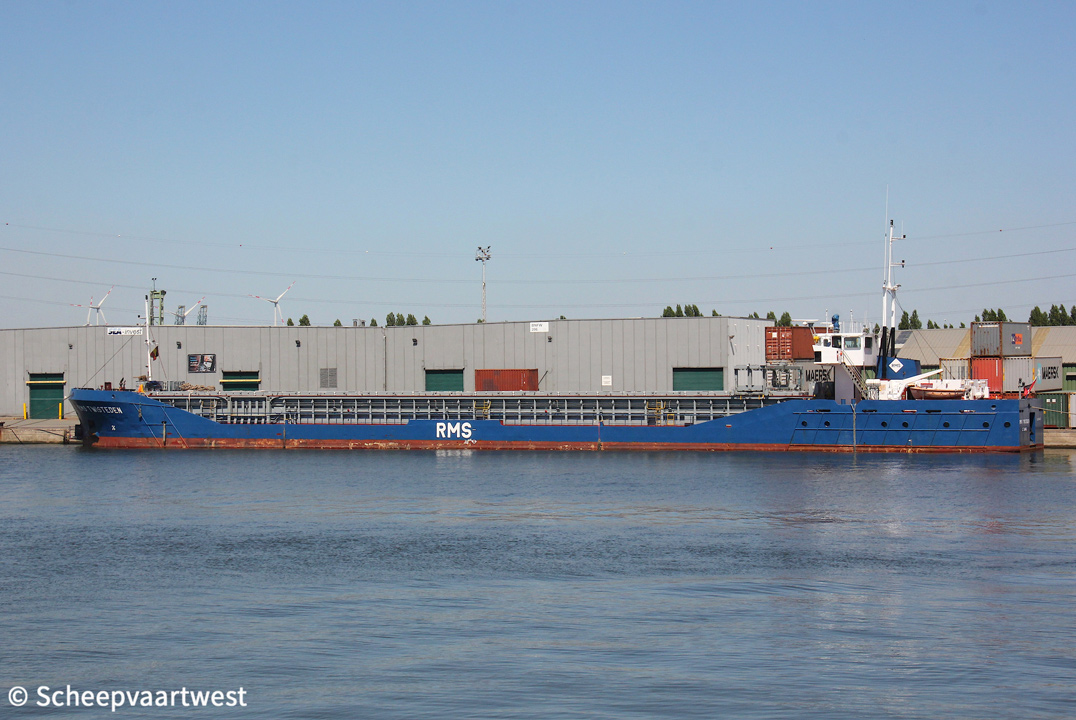

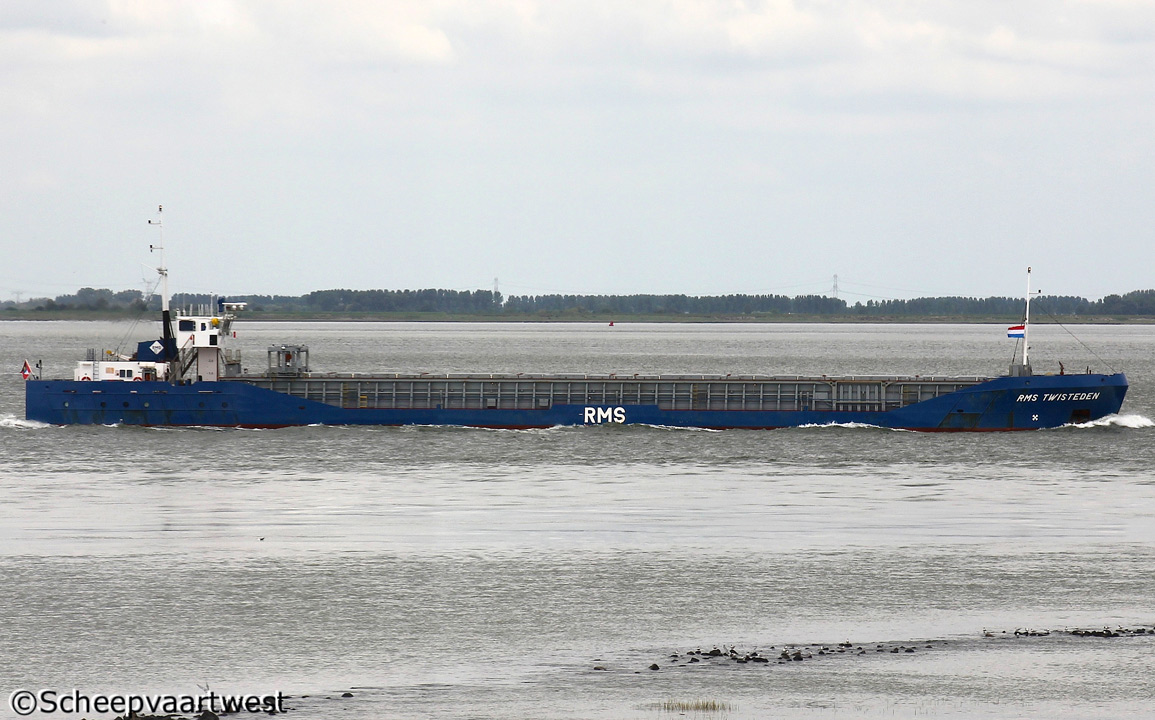

Terneuzen 21/08/17 Antwerpen 03/10/14   Antwerpen 23/07/19



Name

RMS TWISTEDEN

Type

General cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo

SID Fully Box / Sea-Rivergoing vessel

IMO-number

9195468

Call sign

V2DN

Flag

Antigua & Barbuda

Port of registry

St. John's

GT

1.898 t

DWT

Summer: 2.655 t

DWCC

Summer: 2530 t with draft 4,06 m

Winter: 2470 t with draft 4,02 m

NT

997 t

Number of 20ft containers

In hold: 60

On deck 24

Total: 84

Length

88,00 m overall

84,98 m registered

Breadth

11,41 m overall

Draught

4,09 m

Air draft

6,25 m

Freeboard

Summer: 1.315 mm

Depth

5,40 m moulded

Speed

10,0 knots

Built

2002

Keel laid

29/09/2001

Launch date

06/04/2002

Date of completion

02/10/2002

Builder casco

Daewoo-Mangalia Heavy Industries

Mangalia

Romania

Yard number: 1041

Builder completion

Bodewes Scheepswerf "Volharding" Foxhol B.V.

Scheepswervenweg 14

9607 PX Hoogezand
The Netherlands

Yard number: 427

Hull material

Shipbuilding steel (standard)

Hull type

Single hull

Double bottom, continuous from peak to peak bulkhead

Watertight bulkheads

4

Movable bulkhead

2 (10 positions)

Continuous decks

1

Main engine

1x KHD SBV 6M628 - 4 stroke 6 cylinder 240 x 280 mm combustion engine 1.235 kW at 1.000 rpm

Reduced power: 1.165 kW at 981 rpm

Year of manufacture: 2002

Builder: Deutz Group Köln - Germany

Propellers

1x Solid propeller - aft at 278 rpm

Electric installations

2x Plants each 400 V - 120 kVA

1x Plant 400 V - 52,3 kVA

Shaft generator

2x Main diesel generatorsets each 120 kVA

Generators

1x Diesel generator set 52,3 kVA

Compressed air receivers

2x Receivers each 125 litres - 30,0 bar

Bow thruster

1x Bow thruster 275 kW, forward

Number of holds

1

60,95 x 9,00 x 6,88 m

Hold capacity

133.400 ft³

Number of hatches

1

60,95 x 9,00 m

Hatch type

Steel pontoon covers

Max. permitted loads

Tanktop: 15,0 t/m²

Hatch cover: 1,5 t/m²

Timber capacity

3.150 m³

Tank capacities

Ballast water: 1.523 t

fresh water:43 t

Gas oil: 120 m³

Electric ventilation

6x

Anchor equipment

3x Anchors weight each 1.590 kg

Chain length: 412,50 m

Lifting equipment

1x Gantry crane

Crew size

6

Manager

Rhenus Maritime Services GmbH

Krausstr. 1A

47119 Duisburg

Federal Republic of Germany

Operator

RMS - Rhenus Maritime Services

Owner

BWK Schiffinvest GmbH & Co. KG MS "RMS TWISTEDEN"

Krausstr. 1A

47119 Duisburg

Federal Republic of Germany

Latest data adjustment

21 February 2020
