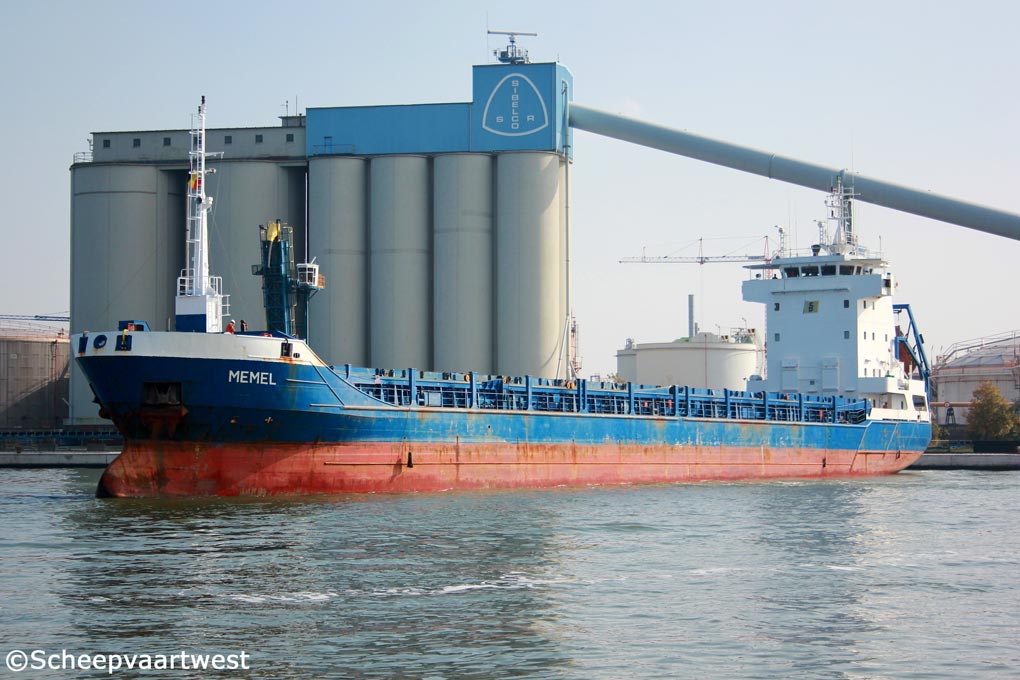

Memel 01

Antwerpen 03 October 2014

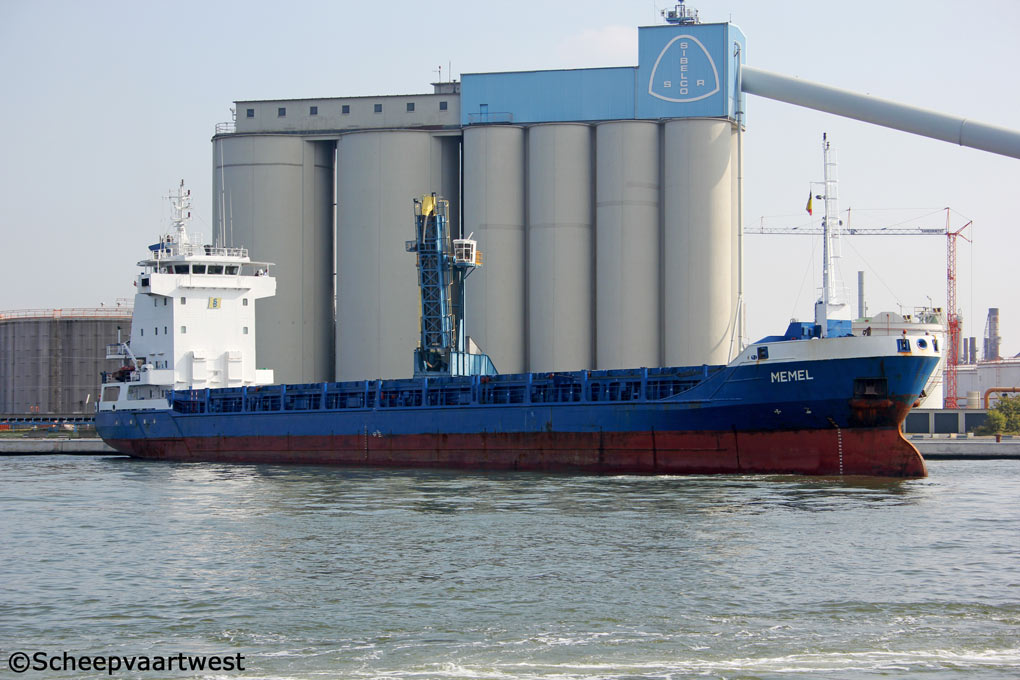

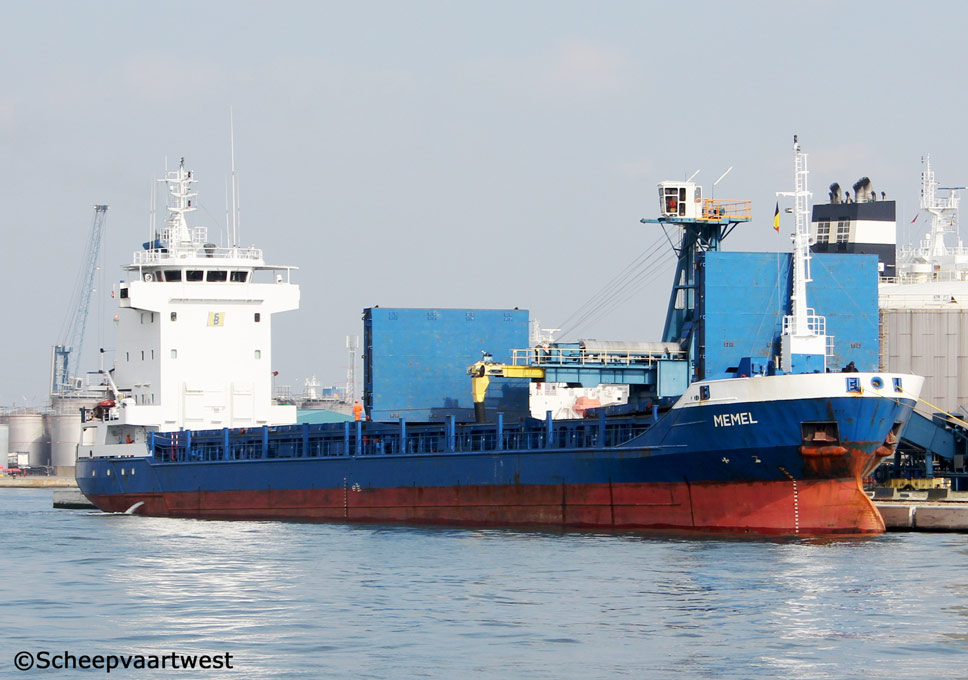

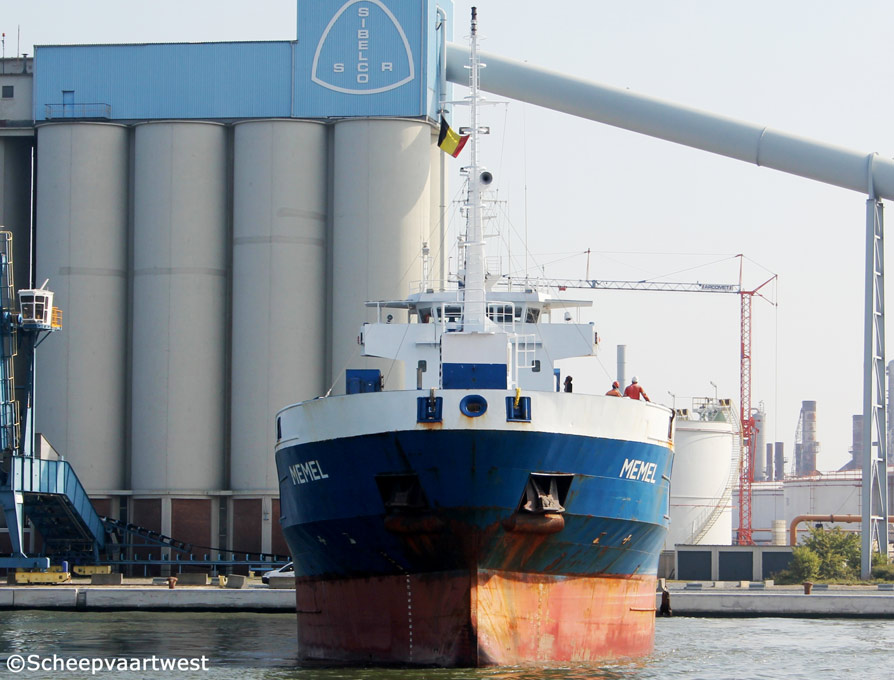

Memel 03   Memel 04   Memel 02
Antwerpen 03/10/14 Antwerpen 03/10/14 Antwerpen 03/10/14



Name

MEMEL

Type

General cargo ship - Equipped for carriage of containers

IMO-number

9192624

Call sign

V2AO4

Flag

Antigua & Barbuda

Port of registry

St. John's

GT

2.997 t

DWT

Summer: 4.439 t

NT

1.741 t

Number of 20ft containers

297

Container capacity 14t

185

Reefer plugs

30

Length

99,90 m overall

95,30 m between perpendiculars

95,80 m registered

Breadth

12,80 m registered

Draught

5,67 m

Air draft

26,70 m

Forecastle

6,80 m

Poop

15,94 m

Depth

7,55 m moulded

Speed

Max.: 12,5 knots

Service: 10,5 knots

Built

1999

Keel laid

23.04.1998

Launch date

19.04.1999

Date of completion

12.1999

Builder

Slovenske Lodenice a.s.
Rolnickej Skoly 1519
945 25 Komarno
Slovak Republic

Yard number

3021

Hull material

Shipbuilding steel (standard)

Hull type

Double hull

Partly double bottom

Watertight bulkheads

4

Movable bulkhead

2x Movable, max. 3 compartments

Continuous decks

2

Main engine

1x Duetz TBD 645L6 - 4 stroke 6 cylinder 330 x 450 mm diesel engine - 2.550 kW at 600 rpm

Reduced power: 1.275 kW

Year of manufacture: 1998

Manufacturer: Deutz MWM Motoren-Werke Mannheim AG
Mannheim
Federal Republic of Germany

Propellers

1x Controllable pitch propeller - aft at 304 rpm

Boilers

1x Water heater, oil fired - 4,0 bar

Year of manufacture: 1998

Electric installations

2x Plants each 380/220 V - 210 kVA

1x Plant 380 V - 844 kVA

1x Plant 380 V - 49 kVA

Shaft generator

1x 844 kVA

Generators

2x Main diesel generatorsets each 210 kVA

Emergency generator

1x Diesel generatorset 49 kVA

Compressed air receivers

2x Receivers each 355 litres - 30,0 bar

1x Receiver 250 litres - 30,0 bar

1x Receiver 10 litres - 30,0 bar

Bow thruster

1x Transverse thruster JASTRAM - 220 kW, forward

Number of holds

1

70,85 x 10,20 x 8,17 m

Cargo hold capacity

Bales & Grain: 5.841 m³ / 208.000 ft³

Number of hatches

2

Hatch 1-2: 37,95 x 31,25 x 10,20 m

Hatch type

Folding hatch covers with hydraulic opening system

Strength

Tanktop: 15,0 t/m²

Hatch cover: 1,7 t/m²

Ventilation

6x Air-changes per hour (basis empty hold)

Tank capacities

Fuel oil: 240 m³

Luboil: 10 m³

Freshwater: 52 m³

Water ballast: 1.520 m³

Anchor equipment

3x Anchors weight each 2.100 kg

Chain length: 440.00 m

Manager

Bojen Bereederung GmbH & Co. KG
Borgwardring 80
26802 Moormerland-Neermoor
Federal Republic of Germany

Registered owner

Bojen Schiffahrtsbetrieb GmbH & Co. KG
Borgwardring 80
26802 Moormerland-Neermoor
Federal Republic of Germany

Renamed

04.2015 Georgios Alexios - Liberia, Monrovia - call sign: D5HZ9

Latest data adjustment

05 June 2017
