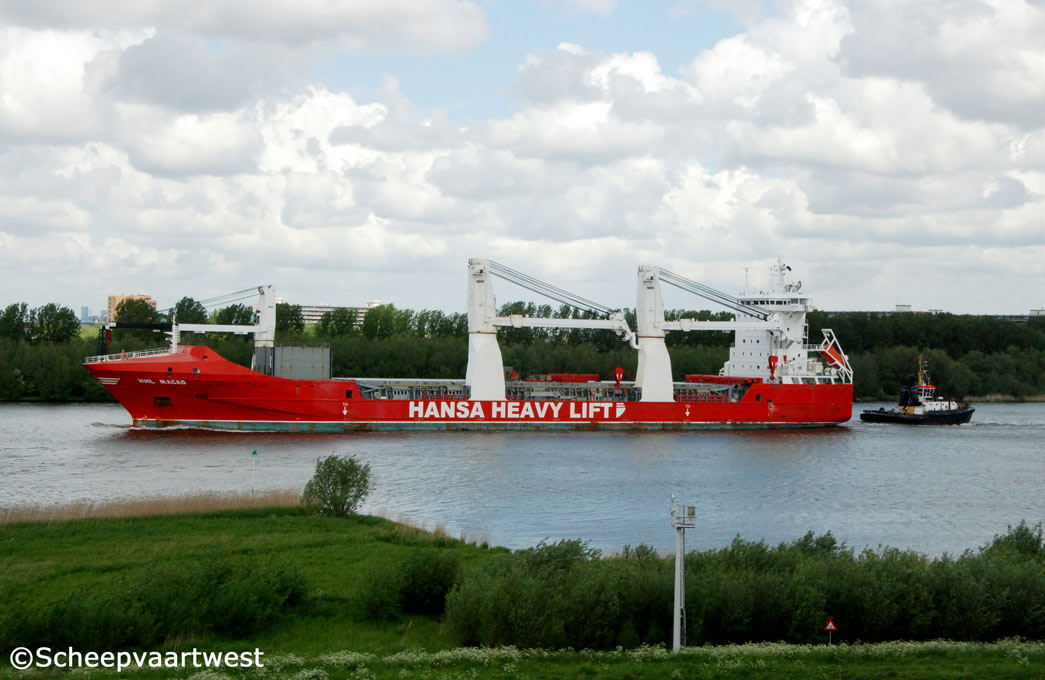

HHL Macao 01

Spijkenisse, The Netherlands 15 May 2012



Name

HHL MACAO

Previous names

2010 Launch as: Beluga Provocation

2010 - 07.2010 Beluga Stavanger

07.2010 - 09.2010 Beluga Houston

09.2010 - 11.2011 Beluga Stavanger

Type

Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo

IMO-number

9424560

Call sign

ZDJZ3

Flag

Gibraltar

Port of registry

Gibraltar

GT

17.634 t

DWT

19.366 t

NT

6.617 t

Number of 20ft containers

On deck: 488

Under deck: 424

Total: 912

Reefer plugs

100

Length

168,68 m overall

155,79 m registered

Breadth

25,20 m registered

Draught

9,50 m

Air draft

45,15 m to bottom of keel

Forecastle

15,77 m

Poop

16,20 m

Depth

13,85 m moulded

Speed

Eco: 14,0 knots

17,5 knots

Built

2010

Keel laid

22.10.2009

Launch date

30.01.2010

Date of completion

28.05.2010

Builder

Hudong-Zhonghua Shipbuilding (Group) Co., Ltd.
2851, Pudong Dadao
Shanghai
People's Republic of China

Yard number

H1528A

Hull material

Shipbuilding steel (standard)

Higher tensile steel

Hull type

Double bottom

Watertight bulkheads

5

Movable bulkhead

Subdivision of hold 2 with 2 grain bulkheads in 7 possible positions

Continuous decks

1

Main engine

1x MAN 7L58/64 - 4 stroke 7 cylinder 580 x 640 mm diesel engine - 9.800 kw at 428 rpm

Year of manufacture: 2009

Manufacturer: MAN Diesel & Turbo SE
Stadtbachstr. 1
86153 Augsburg
Federal Republic of Germany

Propellers

1x Controllable pitch propeller - aft at 146 rpm

Boilers

1x Thermal oil heater, exhaust gas heated - 10,0 bat

Heating surface: 114,8 m²

1x Thermal oil heater, oil fired - 13,0 bat

Heating surface: 32,0 m²

Year of manufacture: 2009

Manufacturer: Alfa Laval Aalborg A/S
Gasvaerksvej 24
9100 Aalborg
Kingdom of Denmark

Electric installations

3x Plants each 450 V - 1.063 kVA

1x Plant 450 V - 1.500 kVA

1x Plant 450 V - 187,5 kVA

2x Plants each 24 V - 170 Ah

2x Plants each 24 V - 200 Ah

2x Plants each 24 V - 200 Ah

Shaft generator

1x 1.500 kVA

Generators

3x Main diesel generatorsets each 1.063 kVA

Emergency generator

1x Diesel generatorset 187,5 kVA

Batteries

2x Batteries for UPS navigation each 200 Ah

2x Batteries for UPS radio each 200 Ah

2x Batteries for automation each 170 Ah

Compressed air receivers

2x Receivers each 1.500 litres - 30,0 bar

2x Receivers each 1.000 litres - 30,0 bar

1x Receiver 500 litres - 30,0 bar

1x Receiver 1.000 litres - 8,0 bar

1x Receiver 400 litres - 8,0 bar

1x Receiver 100 litres - 8,0 bar

Bow thruster

1x Transverse thruster 800 kW, forward

Number of holds

2

Tweedeck:

Hold 1: 22,94 x 13,76 m

Hold 2: 82,40 x 18,66 m

Lower hold:

Hold 1: 22,94 x 13,76 / 9,56 m

Hold 2: 82,40 x 18,66 m



Heights

Tank top - Hatchcover:

Hold 1: 14,25 m

Hold 2: 14,83 m

Tweendeck heights adjustable:

Hold 1: 2 different positions

Hold 2: 4 different positions

Hold capacity

Hold 1: 4.275 m³ / 160.993 ft³

Hold 2: 22.062 m³ / 779.230 ft³

Total: 26.337 m³ / 930.233 ft³

Hatch cover

Hatch 1: 23,28 x 14,26 m

Hatch 2: 83,57 x 9,46 m

Hatch type

Hydraulic foldingtype, combinable pontoons

Load distribution

Tank top: 18,0 t/m²

Hatch cover: 5,0 t/m²

Tween deck: 3,5 t/m²

Ventilation

6 Air change per hour

Tank capacities

Ballast: 12.000 m³

Fresh water: 200 m³

HFO: 1.500 m³

MGO: 200 m³

Anchor equipment

3x Anchors weight each 7.350 kg

Chain length: 605,00 m

Cargo gear

2x NMF electric hydraulic cranes - SWL each 700 t combinable up to 1.400 t

1x NMF electric hydraulic cranes - SWL 180 t

Crew size

27

Manager

Hansa Heavy Lift GmbH
Oberbaumbrücke 1
20457 Hamburg
Federal Republic of Germany

Operator

Hansa Heavy Lift

Registered owner

Hansa Heavy Lift GmbH & Co. KG MS "HHL MACAO"
Auf der Muggenburg 30
28217 Bremen
Federal Republic of Germany

Latest data adjustment

27 November 2014
