| Antwerpen 03 October 2014 |
|
Name |

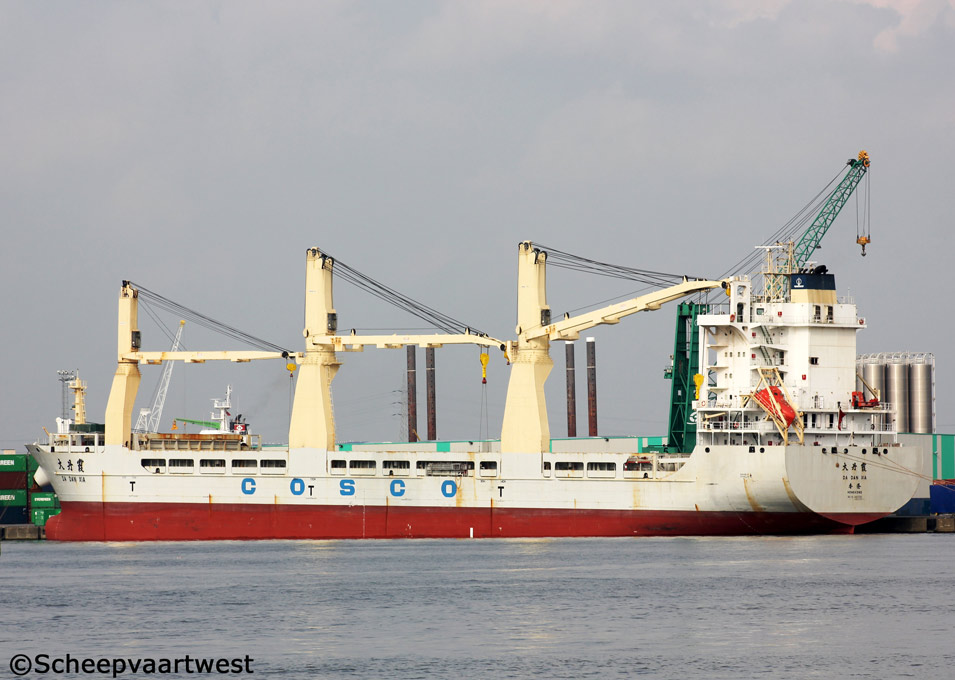

DA DAN XIA |
|
Previous names |
2009 - Launch as: Huanghai |
|
Type |
General dry cargo ship - Strengthened for heavy cargoes |
|
IMO-number |
9451290 |
|
Call sign |
VRFO3 |
|
Flag |
Hong Kong - China |
|
Port of registry |
Hong Kong |
|
GT |
20.949 t |
|
DWT |
Summer: 28.451,19 t |
|
NT |
10.345 t |
|
Number of 20ft containers |
949 |
|
Number of 40ft containers |
395 |
|
Length |
166,50 m overall 158,32 m between perpendiculars |
|
Breadth |
27,40 m moulded |
|
Draught |
8,50 m |
|
Forecastle |
34,15 m |
|
Bridge |
10,20 m |
|
Poop |
16,10 m |
|
Freeboard |
3.626 mm |
|
Speed |
15,2 knots |
|
Built |
2009 |
|
Date of completion |
15.10.2009 |
|
Builder |
Huanghai Shipbuilding Co.,Ltd. |
|
Yard number |
HCY 074 |
|
Hull material |
Steel |
|
Continuous decks |
1 |
|
Main engine |
1x B&W 6S40ME-B9 - 6 cylinder 400 x 1.770 mm diesel engine - 6.810 KW at 146 rpm Built: 23.05.2008 Builder: STX Heavy Industries Co.,Ltd. - South Korea |
|
Propellers |
1 |
|
Boilers |
Built: 01.08.2008 Builder: Zhangjiagang Green Shazhou Boiler Co.,Ltd. - China |
|
Generators |
3x Main diesel engines coupled with generators FE547A each 600 kVA - 450 Volt |
|
Number of holds |
4 Grain&Bales: Hold No.1: 6.082,67 m³ Total: 39.102,02 m³ |
|
Number of hatches |
4 Hatch 1: 18,96 x 18,00 m Hatch 2: 24,88 x 23,00 m Hatch 3: 33,57 x 23,00 m Hatch 4: 33,57 x 23,00 m |
|
Water ballast |
10.334 m³ |
|
Cargo gear |
2x Cranes - SWL 200 t each 1x Crane - SWL 45t |
|
Manager |
COSCO - China Ocean Shipping Company |
|
Operator |
COSCO Shipping Co., Ltd. |
|
Registered owner |
COSCOL(HK) Investment & Development Co., Ltd |
|
Latest data adjustment |
19 November 2014 |
