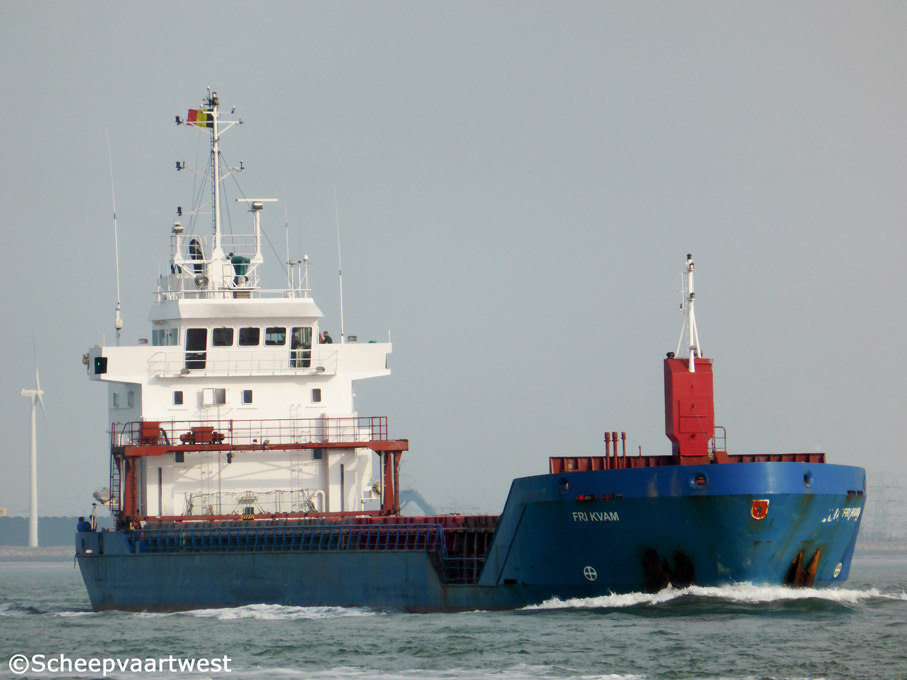

Westerschelde 04 October 2014 |
 |
| Westerschelde 13/11/05 |
|
Name |
FRI KVAM |
|
Previous names |
2000 Launch as: Baldur 04.2000 - 04.2011 River Blyth - Condra Schiffahrts GmbH & Co. MS Baldur 04.2011 - 01.2014 Blue Creek- Condra Schiffahrts GmbH & Co. MS Baldur |
|
Type |
General cargo ship - Strengthened for heavy cargo - Equipped for carriage of containers |
|
IMO-number |
9211078 |
|
Call sign |
5BAG4 |
|
Flag |
Cyprus |
|
Port of registry |
Limassol |
|
Previous flags |
2000 - 2012 Antigua and Barbuda 2012 - 2013 Germany 2013 - 2014 Antigua and Barbuda |
|
GT |
2.858 t |
|
DWT |
4.909 t |
|
NT |
1.546 t |
|
Number of 20ft containers |
In hold: 111 On deck: 76 Total: 183 |
|
Length |
89,75 m overall 84,98 m registered |
|
Breadth |
13,60 m registered |
|
Draught |
Summer: 6,36 m Winter: 6,23 m |
|
Air draft |
28,00 m ballast 25,20 m laden |
|
Forecastle |
7,80 m |
|
Bridge |
14,05 m³ |
|
Quarterdeck |
50,98 m |
|
Freeboard |
849 mm |
|
Depth |
8,61 m moulded |
|
Speed |
Service: 10,5 knots Max.: 12,0 knots |
|
Built |
2000 |
|
Keel laid |
30.06.1998 |
|
Launch date |
25.03.2000 |
|
Date of completion |
01.04.2000 |
|
Builder |
Scheepswerf Pattje B.V. (Volharding Shipyard) |
|
Yard number |
411 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double hull Double bottom |
|
Watertight bulkheads |
4 |
|
Movable bulkhead |
2x - 5 positions |
|
Continuous decks |
1 |
|
Main engine |
1x Krupp Mak 6M25 - 4 stroke 6 cylinder 255 x 400 mm diesel engine - 1.800 kW / 2.446 hp at 750 rpm Year of manufacture: 2000 Manufacturer: Krupp Mak Maschinenbau GmbH |
|
Propellers |
1x Controllable pitch propeller - aft at 175 rpm |
|
Electric installations |
2x Plants each 380/220 V - 155 kVA 1x Plant 380 V - 330 kVA 1x Plant 380 V - 120 kVA |
|
Shaft generator |
1x 330 kVA / 264 kW |
|
Generators |
1x Main diesel generatorsets 124 kVA - 99 kW - 183 hp 1x Main diesel generatorsets 155 kVA- 124 kW - 183 hp |
|
Emergency generator |
1x Diesel generatorset 120 kVA - 96 kW - 149 hp |
|
Compressed air receivers |
2x Receivers each 250 litres - 30,0 bar |
|
Bow thruster |
1x Jastraum BU40F - 225 kW |
|
Number of holds |
1 62,80 x 11,00 x 8,35 m |
|
Cargo hold capacity |
Grain/Bales: 5.498 m³ / 194.165 ft³ with bulkheads |
|
Number of hatches |
1 10 pontoons |
|
Max. load |
Tank top: 15,0 t/m² Hatches: 1,60 t/m² |
|
Tank capacities |
Fuel oil: 355 m³ Ballast water: 1.734 m³ |
|
Anchor equipment |
3x Anchors weight each 2.100 kg Chain length: 440,00 m Diameter: 36 mm |
|
Manager |
Kopervik Ship Management Poland Sp. z.o.o. |
|
Previous managers |
2000 - 2014 Kapitän Manfred Draxl Schiffahrts GmbH & Co. KG 2014 - 2015 Kopervik Ship Management AS |
|
Operator |
Hoyergruppen AS |
|
Owner |
Fri Kvam AS |
|
Previous owners |
2000 - 2014 Condra Schiffahrts GmbH & Co. KG MS "BALDUR" |
|
Latest data adjustment |
17 January 2016 |
