Westerschelde 16 August 2014 |
|
Name |

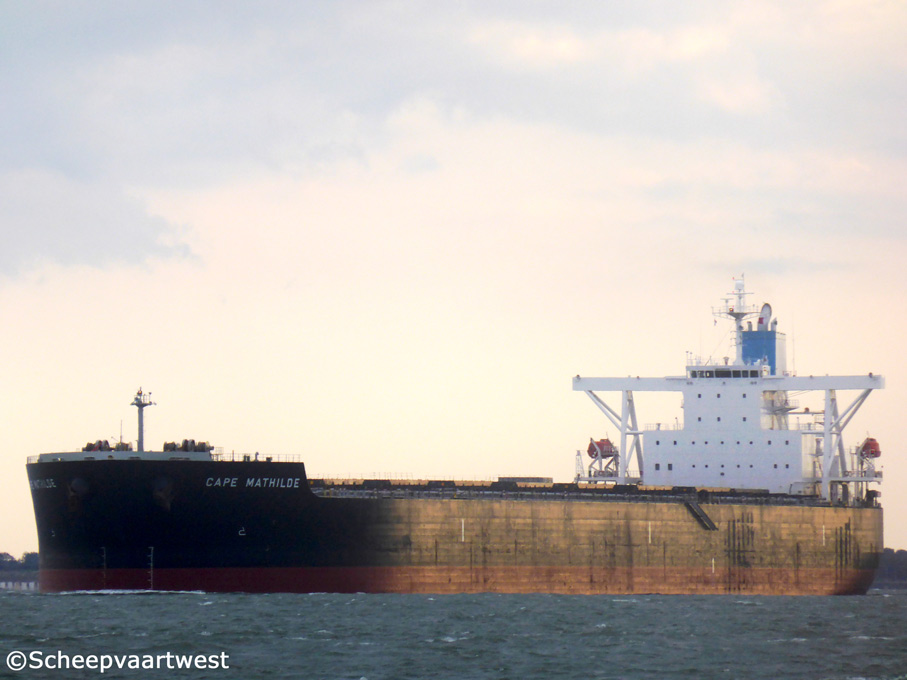

CAPE MATHILDE |
|
Type |
Bulk carrier - Strengthened for heavy cargo |
|
IMO-number |
9409120 |
|
Call sign |
HOVQ |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
92.250 t registered |
|
DWT |
Summer: 178.831 t |
|
NT |
57.461 t registered |
|
Length |
292,00 m overall |
|
Breadth |
44,98 m moulded |
|
Draught |
Summer: 17,99 m |
|
Moulded L x B x D |
282,00 x 44,98 x 24,70 m |
|
Registered L x B x D |
282,96 x 44,98 x 24,70 m |
|
Freeboard |
Summer: 6.786 mm |
|
Depth |
24,70 m moulded |
|
Built |
2010 |
|
Keel laid |
27.06.2006 |
|
Launch date |
11.09.2010 |
|
Date of completion |
29.11.2010 |
|
Builder |
Mitsui Ichihara Engineering & Shipbuilding Co., Ltd. Chiba Shipyard |
|
Yard number |
1716 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MAN-B&W/Mitsui - 2 stroke single acting 6 cylinder 700 x 2.800 mm diesel engine - 18.660 kW at 91,0 rpm Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Shipyard |
|
Propeller shaft |
1x Oil Lubrication shaft with monitoring device Diameter: 730 mm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 6,9 bar Evaporation: 4,68 t/h Manufacturer: Osaka Boiler Mfg., Co., Ltd. |
|
Generators |
4x Generators 2.464 kVA |
|
Cargo hold capacity |
Grain: 197.392 m³ |
|
Tank capacities |
Fuel oil: 5.922 m³ Fresh water: 648 m³ Water ballast: 57.597 m³ |
|
Manager |
Tokei Kaiun Ltd. |
|
Registered owner |
Leo Ocean S.A. Tokei Kaiun Ltd. |
|
Latest data adjustment |
12 October 2014 |
