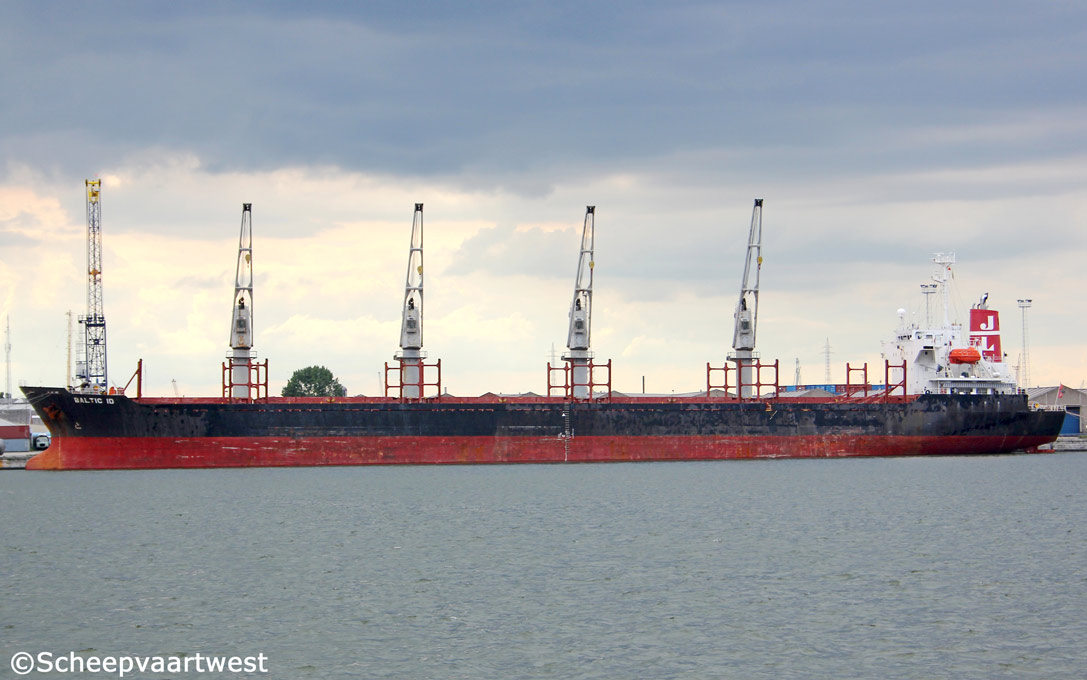

Baltic Id 01

Antwerpen 21 August 2014



Name

BALTIC ID

Previous names

1997 - 07.2005 Atlantic Island

07.2005 - 10.2007 Castle Peak

Type

Bulk / lumber carrier

IMO-number

9180011

Call sign

VRBC7

Flag

Hong Kong - China

Port of registry

Hong Kong

GT

16.764 t

Suez: 17.287,66 t

DWT

Summer: 28.545 t

Winter: 27.742 t

NT

10.452 t

Panama: 14,029 t

Suez: 15,872,39 t

Length

169,03 m overall

Breadth

27,20 m

Draught

Summer: 9,76 m

Moulded L x B x D

160,40 x 27,20 x 13,60 m

Registered L x B x D

161,21 x 27,20 x 13,60 m

Freeboard

3.882 mm

Depth

13,60 m moulded

Speed

Trail: 15,8 knots

Ballast: 14,0 knots

Service: 13,5 knots

Built

1997

Keel laid

02.07.1997

Launch date

07.11.1997

Date of completion

18.12.1997

Builder

Imabari Shipbuilding Marugame Yard Co., Ltd.
Marugame
Japan

Yard number

1291

Hull material

Steel

Hull type

Single hull

Main engine

1x B&W 6S42MC - 2 stroke single acting 6 cylinder 420 x 1.764 mm diesel engine - 7.951 bhp / 5.848 kW at 129,0 rpm

Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works

Propeller shaft

1x Oil lubrication shaft without monitoring device

Diameter: 420 mm

Propellers

1

Boilers

1x Auxiliary vertical boiler - 7,9 bar

Evaporation: 178 t/h

Manufacturer: Miura Co., Ltd.

Generators

3x Generators 1.160 kVA

Number of holds

5

Grain:

Hold 1: 5.320 m³

Hold 2: 8.236 m³

Hold 3: 8.261 m³

Hold 4: 8.298 m³

Hold 5: 7.408 m³

Total: 37.523 m³

Bales:

Hold 1: 5.016 m³

Hold 2: 7.840 m³

Hold 3: 7.883 m³

Hold 4: 7.883 m³

Hold 5: 7.140 m³

Total: 35.762 m³

Number of hatches

5

Hatch 1: 13,92 x 16,00 m

Hatch 2, 3, 4, 5: 19,50 x 17,92 m

Hatch cover

Folding type

Strengths

Tank top: 11,28 t/m²

Deck: 4,10 t/m²

Hatch cover: 3,30 t/m²

Tank capacities

Fuel oil: 1.381 m³

Fresh water: 302 m³

Water ballast: 8.318 m³

Cargo gear

4x Crane - SWL 30,5 t each

Manager

First Steamship S.A.

Operator

Bidsted & Co. A/S
Tuborg Havnevej 18
2900 Hellerup
Denmark

Registered owner

K/S Danskib 61
C/O Investeringsgruppen Danmark

Latest data adjustment

06 October 2014
