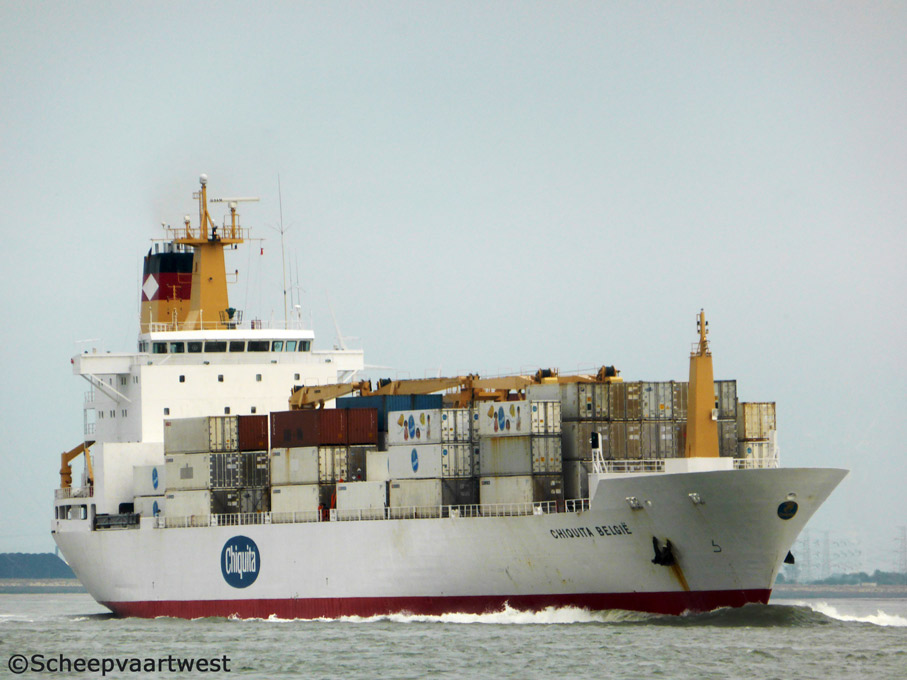

Chiquita Belgie 01

Westerschelde 25 July 2014

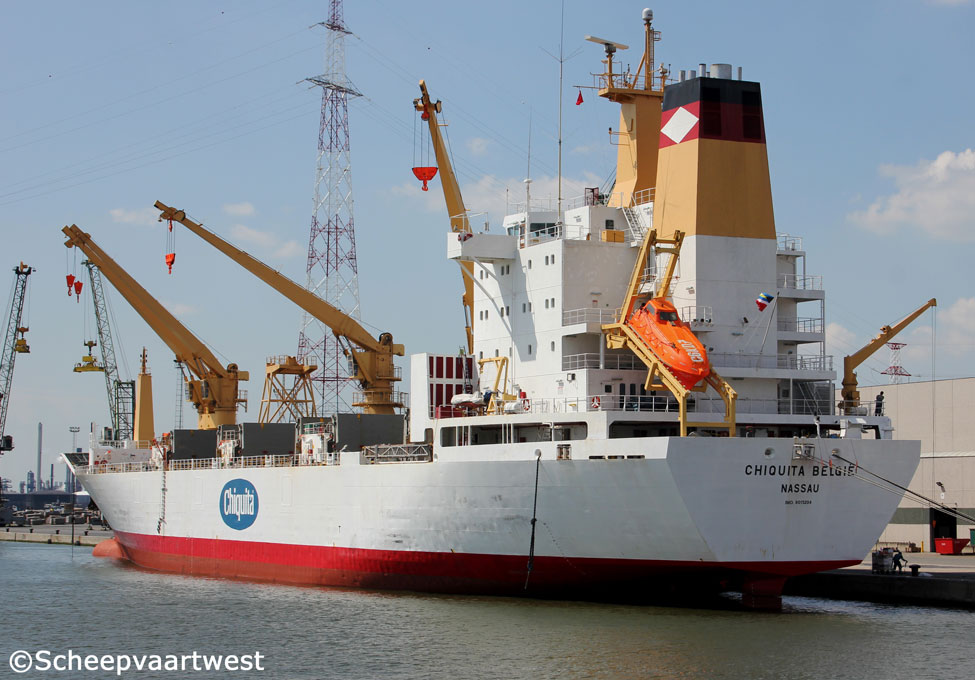

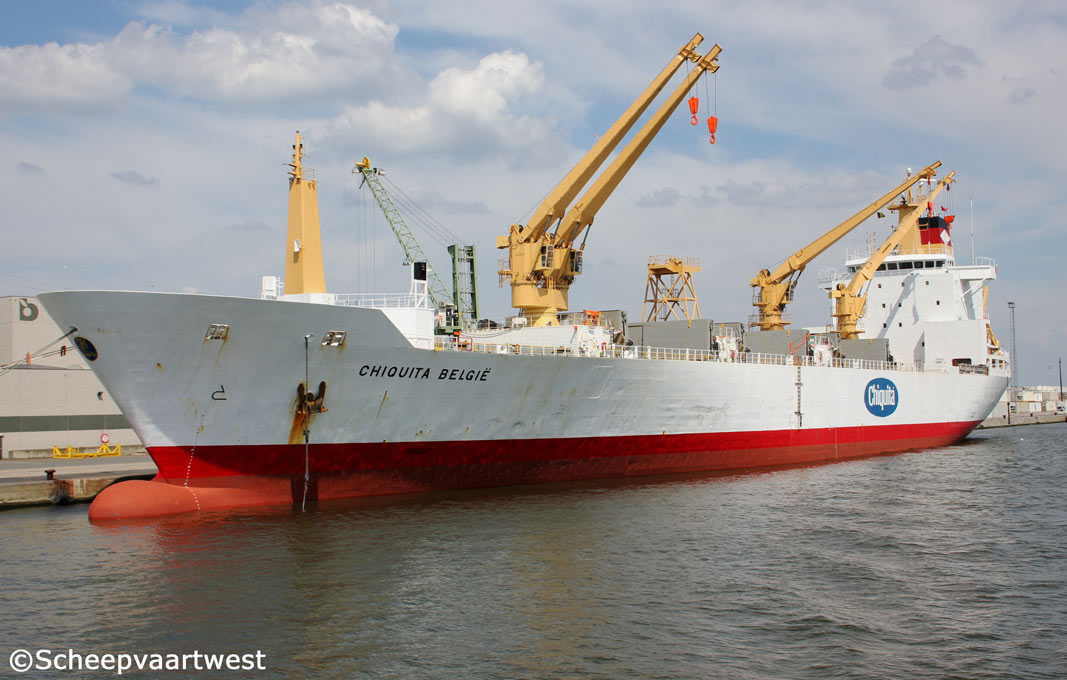

Chiquita België 03   Chiquita België 05   Chiquita België 04
Antwerpen 27/08/14   24/07/14   24/07/14



Name

CHIQUITA BELGIË

Type

Refrigerated cargo ship

IMO-number

9015204

Call sign

C6KD7

Flag

Bahamas

Port of registry

Nassau

GT

13.049 t

DWT

Summer: 13.930 t

NT

5.353 t

Number of 20ft containers

439

Length

158,13 m overall

145,00 m between perpendiculars

Breadth

24,43 m

Draught

10,02 m

Freeboard

2.807 mm

Depth

15,70 m

Speed

22,3 knots

Built

1992

Keel laid

11.08.1991

Launch date

01.11.1991

Date of completion

28.02.1992

Builder

Danyard
Frederikshavn
Denmark

Yard number

710

Hull material

Steel

Watertight compartments

7

Continuous decks

6

Main engine

1x B&W 8S60MC - 2 stroke single acting 8 cylinder 600 x 2.292 mm diesel engine - 15.218 KW / 20.677 hp at 105,0 rpm

Builder: Kawasaki Heavy Industries Ltd., Kobe - Japan

Propellers

1x Fixed pitch propeller - aft at 105,0 rpm

Boilers

1x CHR Aalborg 980,00 m² - 10,0 bar
1x CHM Aalborg Boilers 48,00 m² - 10,0 bar

Generators

2x Main diesel generatorsets each 2.000 kVA - 1.600 kW - 2.174 hp

2x Main diesel generatorsets each 1.250 kVA - 1.000 kW - 1.359 hp

Emergency generator

1x Diesel generatorset 195 kVA - 156 kW

Number of holds

4

Cargo hold capacity

17.303 m³

Fuel capacity

2.151 m³

Cargo gear

2x Cranes - SWL 36,0 t each

2x Cranes - SWL 20,0 t each

Crew

25

Manager

Diamond Shipmanagement N.V.
Kapellen
Belgium

Operator

Chiquita Belgium

Registered owner

Belgie Shipping Corporation

Latest data adjustment

21 August 2014
