Spijkenisse 27 March 2013 |
|
Name |

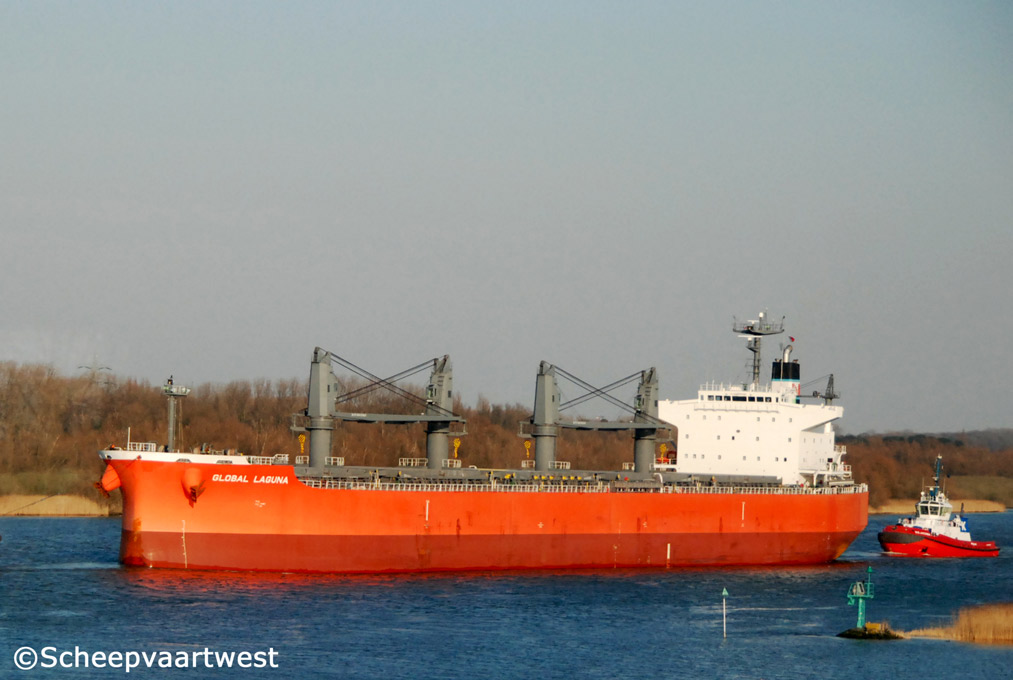

GLOBAL LAGUNA |
|
Type |
Bulk carrier - Strengthened for heavy cargo loading |
|
IMO-number |
9626730 |
|
Call sign |
3FWV4 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
33.239 t |
|
DWT |
Summer: 58.695 t |
|
NT |
19.143 t |
|
Length |
197,00 m overall |
|
Breadth |
32,26 m moulded |
|
Draught |
Summer: 12,68 m |
|
Moulded L x B x D |
194,00 x 32,26 x 18,10 m |
|
Registered L x B x D |
194,00 x 32,26 x 18,10 m |
|
Freeboard |
5.477 mm |
|
Depth |
18,10 m moulded |
|
Built |
2012 |
|
Keel laid |
26.08.2011 |
|
Launch date |
19.01.2012 |
|
Date of completion |
28.03.2012 |
|
Builder |
Nantong COSCO KHI Ship Engineering Co., Ltd. |
|
Yard number |
NE125 |
|
Hull material |
Steel |
|
Main engine |
1x MAN-B&W/Dalian 6S50MC-C - 2 stroke single acting 6 cylinder 500 x 2.000 mm diesel engine - 8.630 kW at 116,0 rpm Manufacturer: Hudong Heavy Machinery Co., Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 490 mm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary Vertical boiler - 8,0 bar Evaporation: 3,34 t/h Manufacturer: Aalborg Industries Limited |
|
Generators |
4x generators - 2.035 kVA |
|
Cargo capacity |
Grain: 73.679 m³ |
|
Tank capacities |
Fuel oil: 2.240 m³ fresh water: 509 m³ water ballast: 17.463 m³ |
|
Manager |
Univan Ship Management Limited |
|
Operator |
Nyk Bulk & Projects Carriers |
|
Registered owner |
Global Jewelry S.A. |
|
Latest data adjustment |
09 August 2014 |
