Vlissingen 14 March 2012 |
|
Name |

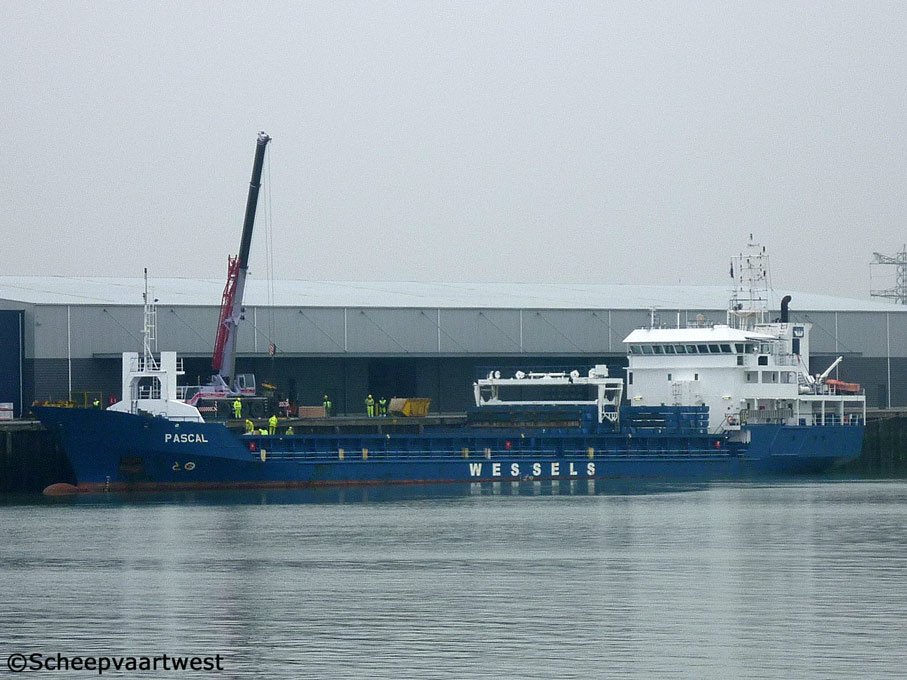

PASCAL |
|
Type |
Boxshapped seagoing multi-purpose ship - Equipped for carriage of containers - Strengthened for heavy cargo |
|
IMO-number |
9256559 |
|
Call sign |
V2LP |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John's |
|
Previous flags |
11/2001 - 02/2005 Antigua & Barbuda, St. John’s 02/2005 - 02/2011 Germany |
|
GT |
2.981 t |
|
DWT |
Summer: 4.263 t |
|
DWCC |
Summer: 4.200 t Winter: 4.000 t |
|
NT |
1.505 t |
|
Number of 20ft containers |
114 |
|
Length |
89,90 m overall 84,93 m registered |
|
Breadth |
15,20 m registered |
|
Draught |
5,64 m |
|
Forecastle |
7,03 m |
|
Poop |
15,11 m |
|
Air draft |
26,70 m ballast 24,95 m loaded |
|
Depth |
7,10 m moulded |
|
Speed |
12,0 knots |
|
Built |
2001 |
|
Keel laid |
20/05/1998 |
|
Launch date |
13/09/2001 |
|
Date of completion |
11/2001 |
|
Builder |
Rousse Industry A.D. 5, Matei Stoikov Street 7000 Ruse Bulgaria |
|
Yard number |
349 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Double hull Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
4 |
|
Movable bulkhead |
2 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 8M25 - 4 stroke 8 cylinder 255 x 400 mm combustion engine 2.400 kW at 750 rpm Reduced power: 1.218 kW Year of manufacture: 2001 Manufacturer: Caterpillar Motoren GmbH & Co. KG Falckensteiner Str. 2 24159 Kiel Federal Republic of Germany |
|
Propellers |
1x Controllable pitch propeller - aft at 185 rpm |
|
Boilers |
1x Water heater, oil fired - 5,0 bar Year of manufacture: 2001 |
|
Electric installations |
2x Plants each 380/220 V - 275 kVA 1x Plant 380 V - 550 kVA 1x Plant 380 V - 91 kVA |
|
Shaft generator |
1x 550 kVA |
|
Generators |
2x MAN D2866 LXE - 4 stroke 6 cylinder combustion engines each 238 kW at 1.500 rpm connected with A. vanKAICK Type DSG 52 M1-4 generators each 297 kVA - 3x 380 Volt 50 Hz |
|
Emergency generator |
1x MAN type 0226 MTE - 4 stroke 6 cylinder diesel engine 85 kW at 1.500 rpm couples with A. vanKAICK Type DSG 36 L 2-4 generator 103 kVA - 3x 380 Volt 50 Hz |
|
Compressed air receivers |
2x Receivers each 250 litres - 30,0 bar 1x Receiver 125 litres - 30,0 bar 1x Receiver 10 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster JASTRAM - 220 kW, forward |
|
Number of holds |
1 |
|
Hold capacity |
195.000 ft³ |
|
Number of hatches |
2x Hatches separated by King Beam Hatch 1: 6,40 x 12,90 x 8,10 m Hatch 2: 25,20 x 12,90 x 8,10 m |
|
Hatch type |
Pontoon type consisting of 10 panels operated by gantry crane |
|
Deck strength |
Tanktop: 12,0 t/m² |
|
Ventilation |
6 times/h |
|
Tank capacities |
Fuel: 253 m³ / 205 t Gas oil: 33 m³ Ballast water: 1.910 m³ |
|
Anchor equipment |
3x Anchors weight each 2.100 kg Chain length: 440.00 m |
|
Manager |
Wessels Reederei GmbH & Co. KG Industriestraße 12 49733 Haren/Ems Federal Republic of Germany |
|
Operator |
Wessels |
|
Registered owner |
Novum GmbH & Co. KG Industriestr. 12-14 49733 Haren/Ems Federal Republic of Germany |
|
Renamed |
07/2020 Rix Union Cyprus, Limassol - Call sign: 5BNG5 Owner: Coalmar Shipping Ltd.- Cyprus Manager: Rix Shipmanagement SIA - Latvia |
|
Latest data adjustment |
20 March 2021 |
