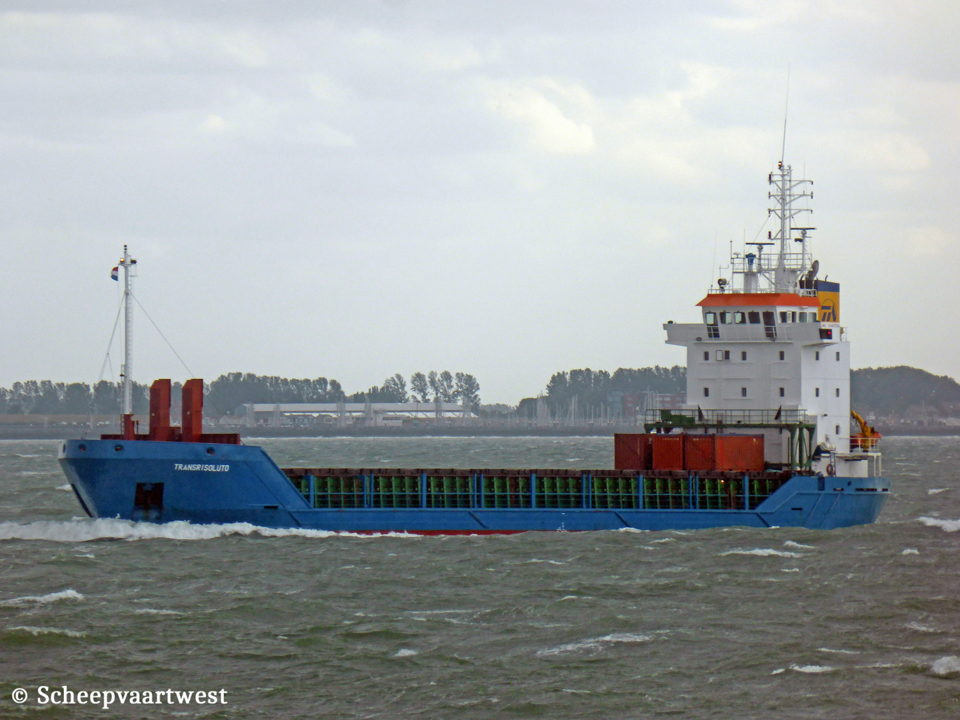

TRANSRISOLUTO |
|
|
Previous names |
1997 - 04/2006 Thamesis - Flag: Antigua and Barbuda - Form Shipcom Breederungs Gesellschaft m.b.H., Duisburg - Germany 2006 - 04/2006 Risoluto 2006 - 2006 Thamesis 2006 - 02/2013 Risoluto |
|
Type |
General cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo |
|
IMO-number |
9143788 |
|
Call sign |
ZDHI4 |
|
Flag |
Gibraltar |
|
Port of registry |
Gibraltar |
|
Previous flags |
1997 - 2001 Germany 2001 - 2006 Antigua and Barbuda |
|
GT |
2.848 |
|
DWT |
Summer: 4.148 t |
|
NT |
1.528 |
|
Number of 20ft containers |
In hold: 111 On deck: 135 Total: 246 |
|
Reefer capacity |
20 |
|
Length |
89,78 m overall 84,98 m registered |
|
Breadth |
13,60 m registered |
|
Draught |
Summer: 5,71 m |
|
Air draft |
31,50 m |
|
Forecastle |
8,74 m |
|
Quarterdeck |
15,04 m |
|
Depth |
7,20 m moulded |
|
Speed |
12,0 knots |
|
Built |
1997 |
|
Keel laid |
05/12/1995 |
|
Launch date |
01/02/1997 |
|
Date of completion |
03/1997 |
|
Builder |
Bodewes Scheepswerf "Volharding" Foxhol B.V. Scheepswervenweg 14 9607 PX Hoogezand The Netherlands |
|
Yard number |
328 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
4 |
|
Movable bulkhead |
2 |
|
Continuous decks |
1 |
|
Main engine |
1x Krupp/MaK 6M453C - 4 stroke 6 cylinder 320 x 420 mm combustion engine 2.266 kW / 2.991 hp at 600 rpm Year of manufacture: 1996 Manufacturer: Krupp Mak Maschinenbau GmbH Falckensteiner Str. 2 24159 Kiel Federal Republic of Germany |
|
Propellers |
1x Controllable pitch propeller - aft at 175 rpm |
|
Boilers |
Water heater, oil fired Year of manufacture: 1996 |
|
Electric installations |
2x Plants each 380/220 V - 170 kVA 1x Plant 380 V - 810 kVA 1x Plant 380 V - 78 kVA |
|
Shaft generator |
1x 810 kVA |
|
Generators |
2x Scania 6DS9 main diesel generatorsets each 170 kVA |
|
Emergency generator |
1x Valmet diesel generatorset 78 kVA |
|
Compressed air receivers |
2x Receivers each 250 litres - 30,0 bar |
|
Bow thruster |
1x Transverse fixed pitch thruster JASTRAM 200 kW, forward |
|
Number of holds |
1x Boxshaped hold narrowing fore and aft Dimension: 62,88 x 11,00 x 8,35 m |
|
Hold capacity |
Bales & grain: 5.580 m³ / 198.762 ft³ |
|
Hold ventilation |
6x Electric driven |
|
Number of hatches |
1 62,88 x 11,00 m |
|
Hatch type |
Steel pontoon hatches with 1 gantry crane |
|
Max permitted loads |
Hatch covers: 1,70 t/m² Tanktop: 15,0 t/m² |
|
Tank capacities |
Ballast: 1.551,0 m³ MGO: 342,4 m³ Potable water: 62,0 m³ |
|
Anchor equipment |
3x Anchors weight each 2.100 kg Chain length: 440,00 m Diameter: 36 mm |
|
Manager |
Rederi AB Transatlantic Lindholmsallen 10 402 71 Göteborg Sweden |
|
Registered owner |
Industrial Shipping AS Haakon Vll's Gate 10 0119 Oslo Norway |
|
Renamed |
11/2016 Multimar Cyprus, Limassol - Call sign: 5BPV4 Owner: Hermann Lohmann Schiffahrts GmbH & Co. KG MS "ENNO" Manager: Hermann Lohmann Bereederungen GmbH & Co. |
|
Latest data adjustment |
08 February 2022 |
