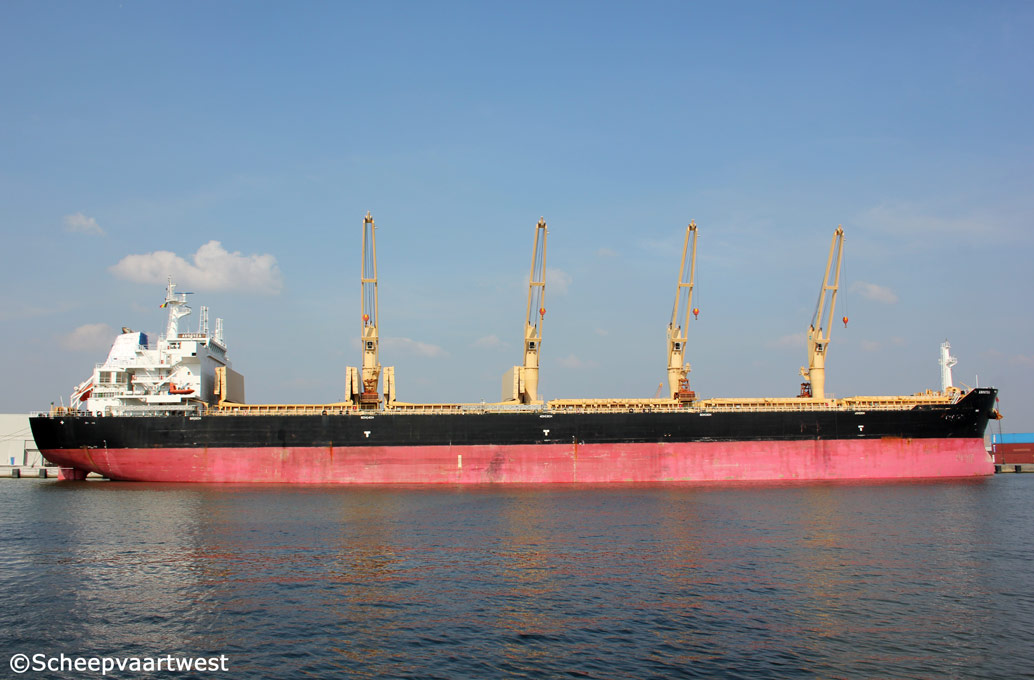

Anogyra 02

Antwerpen 28 March 2014

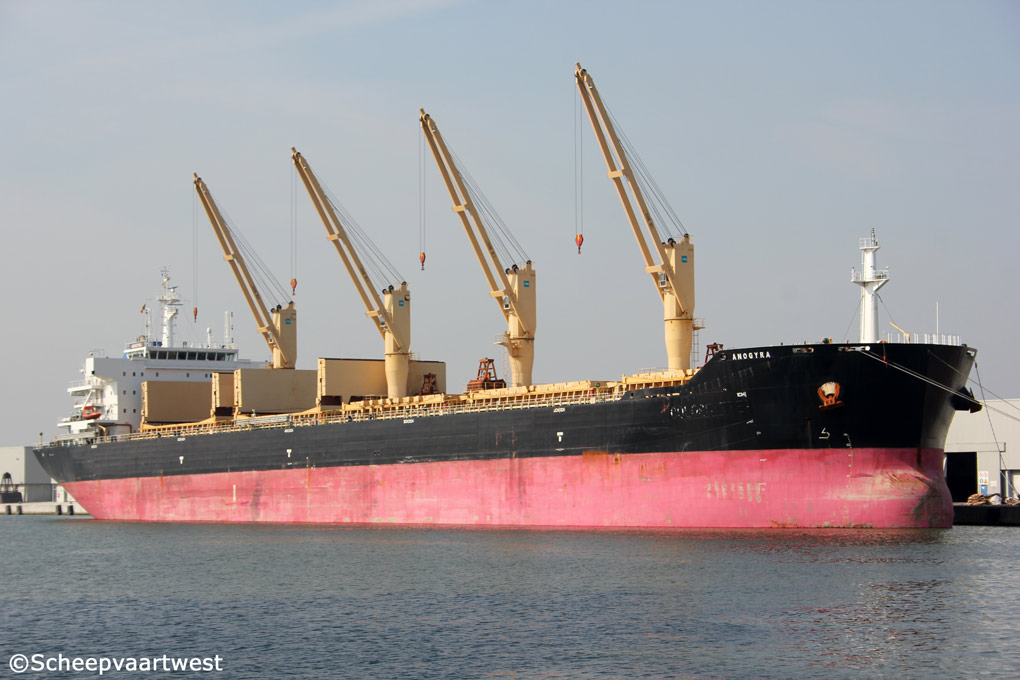

Anogyra 01   Anogyra 03
Antwerpen 28/03/14 Antwerpen 28/03/14



Name

ANOGYRA

Previous names

2011 - 05.2013 Coloso Tres

Type

Bulk carrier

IMO-number

9491226

Call sign

9HA2533

Flag

Malta

Port of registry

Valletta

GT

33.044 t registered

DWT

Summer: 47.946,2 t

NT

19.231 t registered

Length

189,99 m overall

185,00 m between perpendiculars

Breadth

32,26 m moulded

Draught

Summer: 12,80 m

Freeboard

5.224 mm

Depth

18,00 m moulded

Speed

14,2 knots

Built

2011

Keel laid

28.09.2009

Date of completion

06.01.2011

Builder

Jiangdong Shipyard

Wuhu
China

Yard number

JD57000-3

Hull material

High strength steel

Watertight bulkheads

8

Main engine

1x MAN - B&W 6S50MC-C - 6 cylinder 500 x 2.000 mm diesel engine - 9.480 kW / 12.880 hp at 127,0 rpm

Manufacturer: Doosan Engine Co., Ltd.

Propellers

1

Boilers

Composite Boiler K-KD-1.5 - 9,0 bar

Manufacturer: Saacke Qindao Marine Boiler Co., Ltd.

Generators

3x Daihatsu 5DK – 20 main diesel generatorsets each 660 kW

Number of holds

5

Hold capacity

71.634,12 m³

Number of tanks

Ballast: 18

Fuel oil: 10

Lubricating oil: 7

Sludge: 4

Fresh water: 4

Diesel oil: 3

Slop: 3

Chain: 2

Organic compound: 1

Sea water: 1

Tank capacities

Cargo ballast: 14.553,08 m³

Diesel oil: 145,77 m³ / 123,90 t

Freshwater: 837,9 m³

Fuel oil: 2.259,26 m³ / 2.214,07 t

Lube oil: 123,39 m² / 111,05 t

Tank ballast: 16.333,65 m³ / 16.741,99 t

Cargo gear

4x Electro-hydraulic deck cranes KL 30T-28M - SWL 30,0 t each

Manufacture: TTS-LMG Marine Cranes GmbH

Manager

Lemissoler Shipmanagement Ltd.
17-21 B Agias Zonis Str Eleni Court, 1ST Floor
Limassol
Cyprus

Registered owner

Diolkos Shipping Tres Ltd.

Latest data adjustment

03 May 2014
