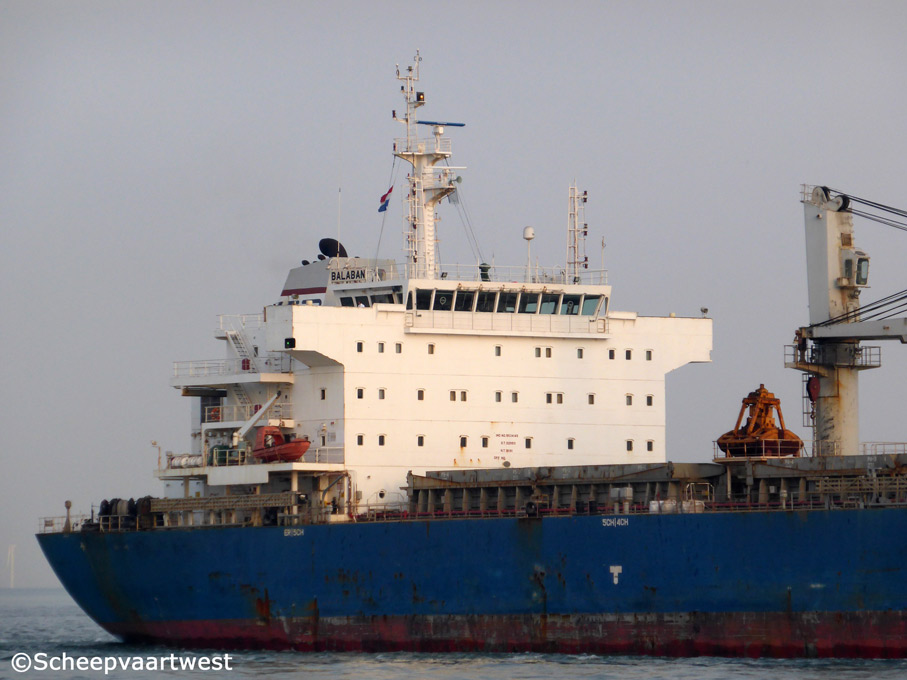

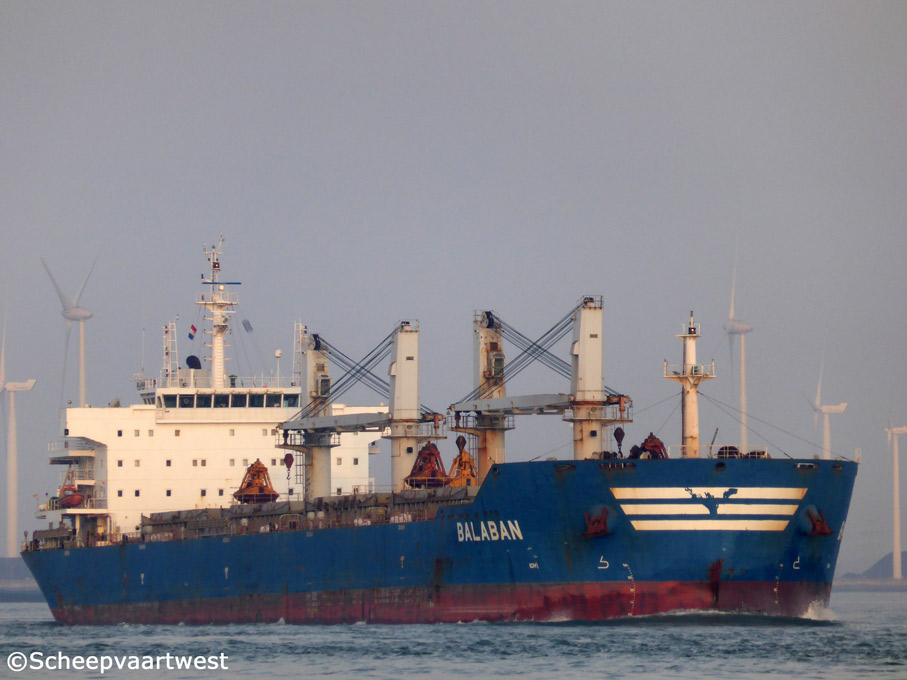

Westerschelde 01 April 2014 |
 |
| Westerschelde 01/04/14 |
|
Name |
BALABAN |
|
Type |
Bulk carrier - Strengthened for heavy cargo |
|
IMO-number |
9534145 |
|
Call sign |
TCTR5 |
|
Flag |
Turkey |
|
Port of registry |
Istanbul |
|
GT |
32.983 t |
|
DWT |
Summer: 56.753 t Suez: 33.934,90 t |
|
NT |
19.191 t Panama: 27.339 t Suez: 30.992,70 t |
|
Light ship |
10.928 t |
|
Length |
189,99 m overall 185,00 between perpendiculars |
|
Breadth |
32,26 m |
|
Draught |
Summer: 12,82 m |
|
Moulded L x B x D |
185,00 x 32,26 x 18,00 m |
|
Registered L x B x D |
185,64 x 32,26 x 18,00 m |
|
Freeboard |
Summer: 5.224 mm Winter: 5.491 mm |
|
Depth |
18,00 m moulded |
|
Speed |
15,6 knots |
|
Built |
2009 |
|
Keel laid |
12.10.2008 |
|
Launch date |
25.05.2009 |
|
Date of completion |
19.11.2009 |
|
Builder |
COSCO (Guangdong) Shipyard Co., Ltd. |
|
Yard number |
N191 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Number of decks |
1 |
|
Main engine |
1x Kawasaki Man B&W 6S50 MC-C - 2 stroke single acting 6 cylinder 500 x 2.000 mm combustion engine - 9.480 kW at 127,0 rpm Manufacturer: Kawasaki Heavy Industries, Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 510 mm |
|
Propellers |
1x Fixed pitch propeller 4 Bladed fixed - Right handed - Diameter 6,0 m |
|
Boilers |
1x Auxiliary vertical boiler - 9,0 bar Evaporation: 2,60 t/h Manufacturer: Aalborg Industries A/S |
|
Generators |
4x Generators - 2.373 kVA |
|
Number of holds |
5 |
|
Cargo hold capacity |
Grain: 71.634 m³ |
|
Number of hatches |
5 |
|
Hatch cover type |
Fore & aft folding type double skin hydraulic operated steel hatch cover |
|
Tank capacities |
Fuel oil 100%: 2.210,78 m³ Diesel oil 100%: 194,22 m³ Lub oil: 116,08 m³ Fresh water: 465,41 m³ Water ballast: 16.333 m³ Port side fw. washing tank: 372,49 m³ Starboard side slop holding tank: 372,49 m³ Sewage tank: 27,72 m³ |
|
Cargo gear |
4x Cranes - SWL 30,0 t each |
|
Grabs |
4x Each 12 m³ remote control |
|
Manager |
ER Denizcilik Sanayi Nakliyat Ve Ticaret Anonim Sirketi Barbaros Mahallesi Halk Caddesi No:35 34746 Atasehir / Istanbul |
|
Registered owner |
ER Denizcilik Sanayi Nakliyat Ve Ticaret Anonim Sirketi |
|
Latest data adjustment |
22 April 2014 |
