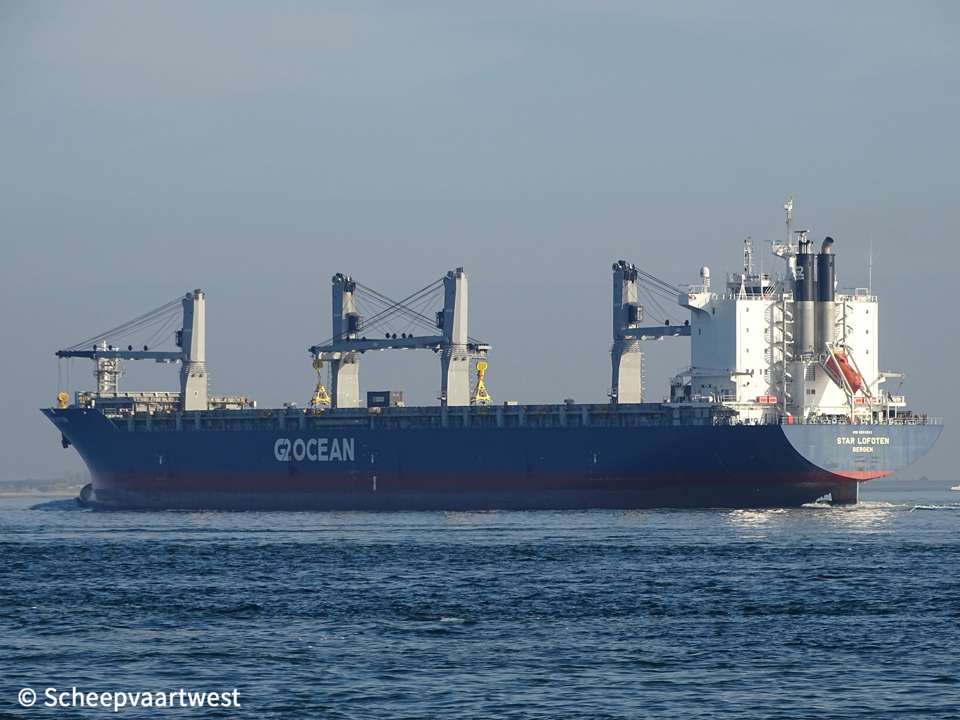

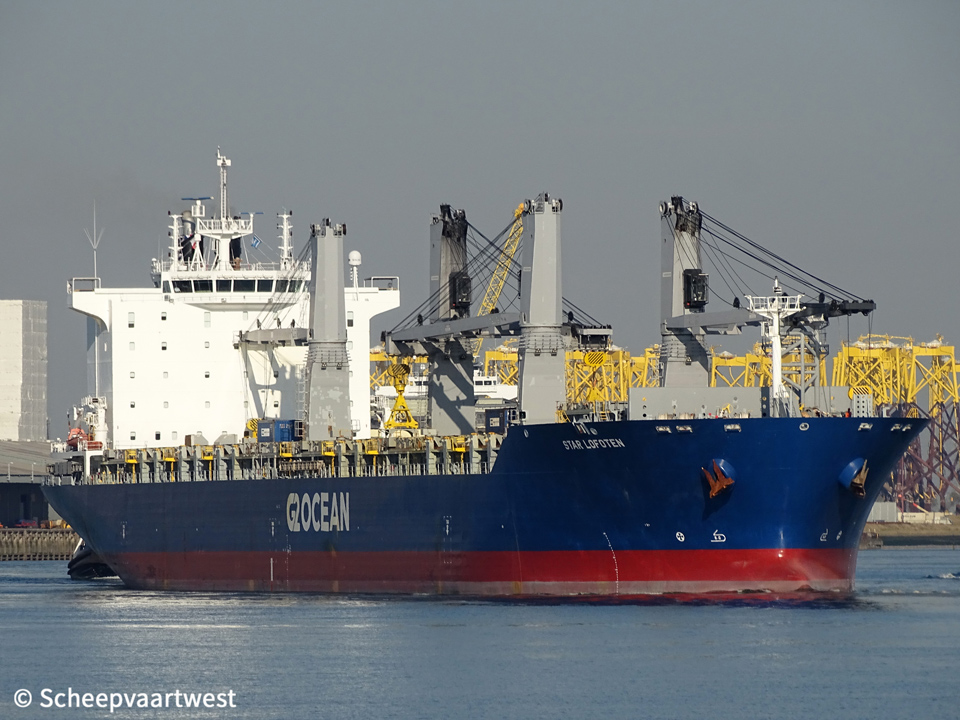

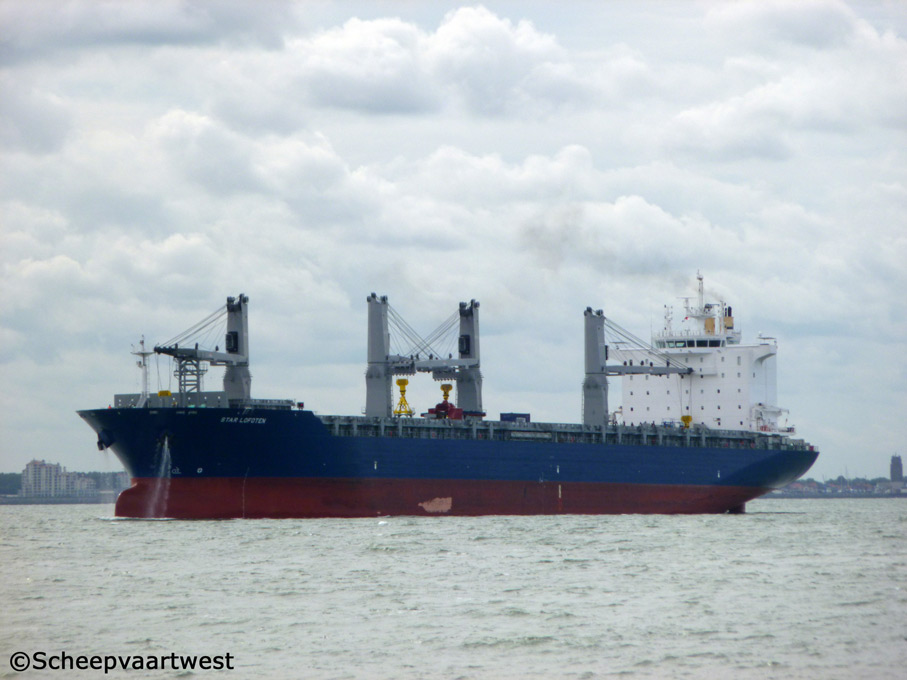

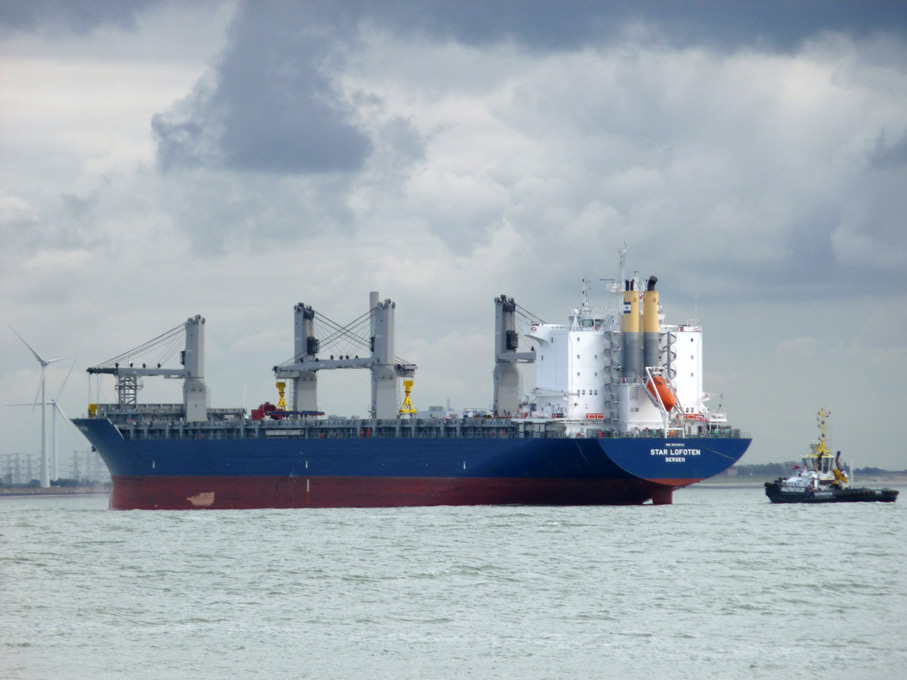

Westerschelde 09 October 2013 |
 |
 |
 |
||
| Westerschelde 09/10/13 | Westerschelde 21/10/18 | Vlissingen 16/10/18 |
|
Name |
STAR LOFOTEN |
|
Type |
General cargo ship - Geared open hatch carrier |
|
Main products |
Baled pulp, ore, grain, cement, paper, packaged lumber and other solid bulk cargoes |
|
IMO-number |
9593892 |
|
Call sign |
LAQL7 |
|
Flag |
Norway |
|
Port of registry |
Bergen |
|
GT |
37.190 t |
|
DWT |
Summer: 50.728 t |
|
NT |
15.619 t |
|
Number of 20ft containers |
1.411 |
|
Length |
204,36 m overall 194,01 m between perpendiculars |
|
Breadth |
32,31 m extreme 32,26 m moulded |
|
Draught |
12,64 m |
|
Depth |
19,00 m |
|
Speed |
15,5 knots full load |
|
Built |
2013 |
|
Keel laid |
17/01/2013 |
|
Launch date |
17/03/2013 |
|
Date of completion |
27/05/2013 |
|
Builder |
Hyundai Mipo Dockyard Co., Ltd. Ulsan South Korea |
|
Yard number |
8079 |
|
Hull material |
Steel |
|
Hull type |
Single hull Double bottom |
|
Continuous decks |
1 |
|
Main engine |
1x Hyundai/MAN-B&W 5S60ME-C8.1 - 2 stroke 5 cylinder combustion engine MCR: 10.780 kW at 95,2 rpm NSR: 9.090 kW at 90,0 rpm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1xAuxiliary boiler, exhaust gas heater (Exhaust gas economizer) - 1.200 kg/h 1x Auxiliary boiler, oil/gas fired (Auxiliary boiler) - 1.600 kg/h Builder: Kangrim Heavy Industries Co., Ltd. |
|
Generators |
3x Hyundai Himsen 5H21/32 - 4 stroke 5 cylinder diesel engine each 960 kW t 900 rpm coupled with generators each 1.125 kVA / 900 kW Builder: Hyundai Heavy Industries Co., Ltd. |
|
Emergency generator |
1x Sisu 645 DSBIG diesel generatorset 180 kW / 225 kVA |
|
Air compressors |
2x Main air compressors: Sperre XW150 165 m³/h capacity at 30,0 bar.(3 Mpa) 1x Working air compressor: Atlas Copco GA37VSD-175-60 - 388 m³/h capacity at 7 bar (0,7 Mpa) 1x Emergency air compressor: Sperre XA030 - 35 m³/h capacity at 30,0 bar (3 MPa) |
|
Bow thruster |
1x 2.100 bhp |
|
Number of holds |
9x Box-shaped |
|
Hold capacity |
Bale: No. 1: 4.522 m³ / 159.711 ft³ No. 2: 5.959 m³ / 210.443 ft³ No. 3: 14.298 m³ / 504.926 ft³ No. 4: 6.932 m³ / 244.814 ft³ No. 5: 6.932 m³ / 244.814 ft³ No. 6: 14.298 m³ / 504.926 ft³ No. 7: 6.557 m³ / 231.571 ft³ No. 8: 5.398 m³ / 190.296 ft³ No. 9: 1.886 m³ / 66.619 ft³ Total: 66.773 m³ / 2.358.120 ft³ |
|
Hold ventilation |
Hold 1-2: 6 air changes per hour Hold 3-8: 2 air changes per hour |
|
Tank capacities |
Ballast: 20.365 m³ |
|
Anchor equipment |
Length: 660 m Diameter: 78 mm |
|
Cargo gear |
4x MacGregor cranes - SWL 75 t each |
|
Crew size |
29 |
|
Manager |
Grieg Star Shipping A/S Bergen Norway |
|
Registered owner |
Grieg International II AS Care of Grieg Star AS , Grieg-Gaarden, C. Sundts gate 17-19 5004 Bergen Norway |
|
Previous owners |
2013 - 2013 Grieg Shipping Group |
|
Latest data adjustment |
03 January 2020 |
