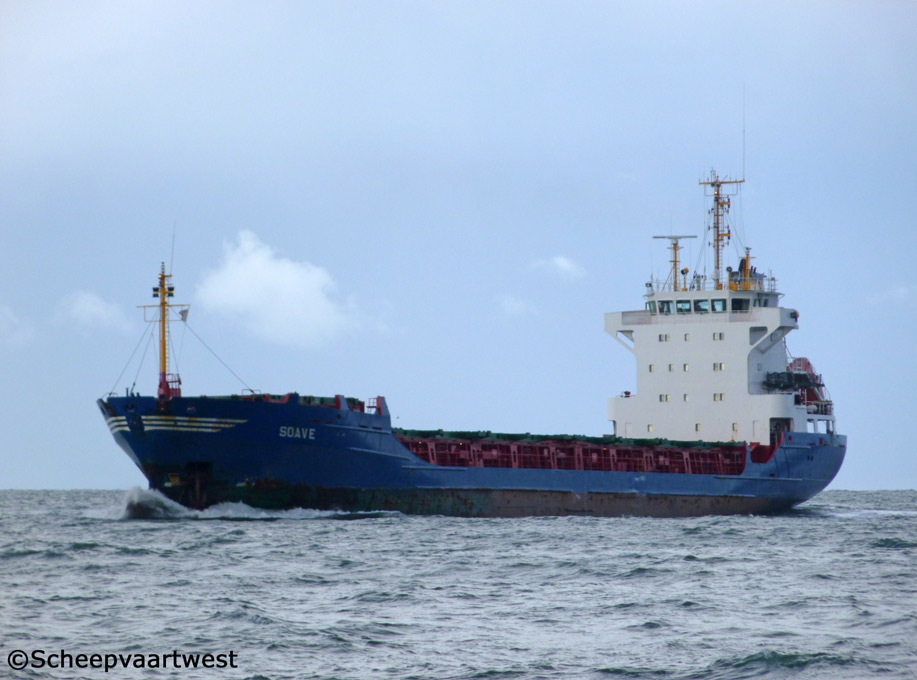

Westerschelde 10 October 2013 |
|
Name |
SOAVE |
|
Previous names |
1991 - 10.2007 Smaragden - Engship AB, Rettig Group, Nagu - Finland |
|
Type |
General cargo ship - Heavy cargo - Equipped for carriage of containers |
|
IMO-number |
8917716 |
|
Call sign |
PBIX |
|
Flag |
The Netherlands |
|
Port of registry |
Werkendam |
|
GT |
3.828 t |
|
DWT |
Summer: 4.452 t |
|
NT |
2.016 t |
|
Number of 20ft containers |
372 |
|
Length |
103,50 m overall 96,90m between perpendiculars |
|
Breadth |
16,00 m |
|
Draught |
6,07 m |
|
Air draft |
23,00 m |
|
Depth |
8,00 m |
|
Speed |
15,3 knots |
|
Built |
1991 |
|
Keel laid |
13.05.1991 |
|
Launch date |
20.06.1991 |
|
Date of completion |
23.08.1991 |
|
Builder |
Sietas J.J. KG Schiffswerft GmbH Co. |
|
Yard number |
1058 |
|
Hull material |
Steel |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä 9R32D - 4 stroke single acting 9 cylinder 320 x 350 mm diesel engine - 3.330 kW / 4.527 hp at 720 rpm Built: 1991 Builder: Wärtsilä Finland OY, Vaasa - Finland |
|
Propellers |
1x Screw propeller controllable pitch - aft at 182 rpm |
|
Shaft generator |
1x 625 kVA - 500 kW |
|
Generators |
2x Diesel generatorsets each 285 kVA - 228 kW - 336 hp |
|
Emergency generator |
1x Diesel generatorset 35 kVA - 28 kW - 44 hp |
|
Bow thruster |
1x Electric 294 kW |
|
Number of holds |
1 55,17 x 12,80 x 8,50 m Strong-beam midship - 3,60 m |
|
Hold capacity |
Grain: 5.680 m³ / 200.587 ft³ |
|
Number of hatches |
2 25,10 x 12,80 m |
|
Strength |
Hatchcovers: 1,70 t/m² Tanktop: 15,0 t/m² |
|
Fuel capacity |
321,87 m³ |
|
Manager |
Kornet & Zonen |
|
Owner |
Rederij Chr. Kornet & Zonen B.V. |
|
Registered owner |
Merwesingel C.V. 4251 NK Werkendam The Netherlands |
|
Latest data adjustment |
05 April 2014 |
