Westerschelde 10 October 2013 |
 |
| Westerschelde 01/08/14 |
|
Name |

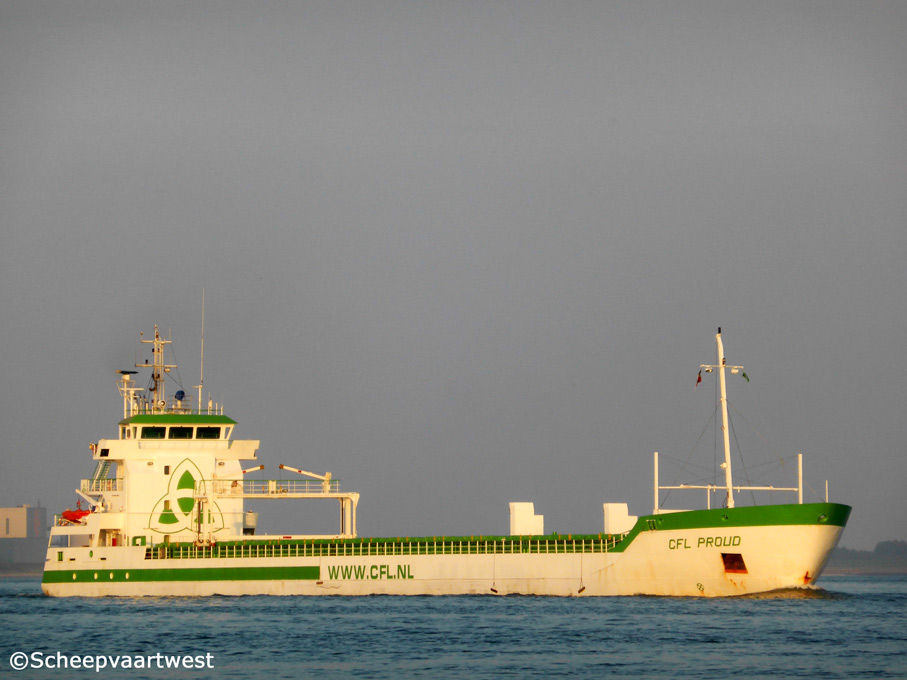

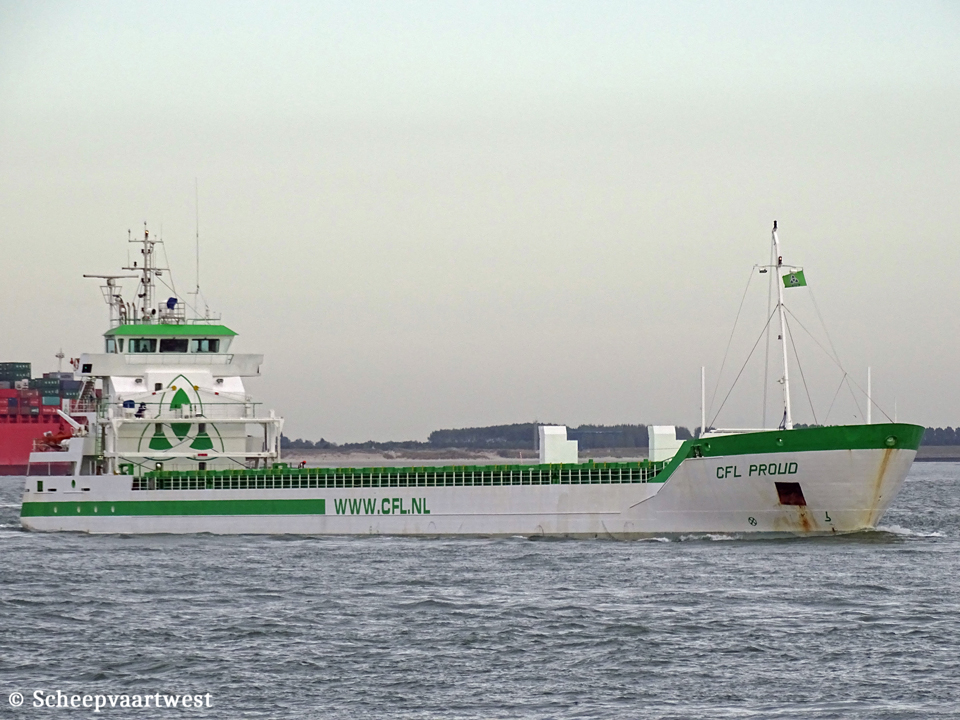

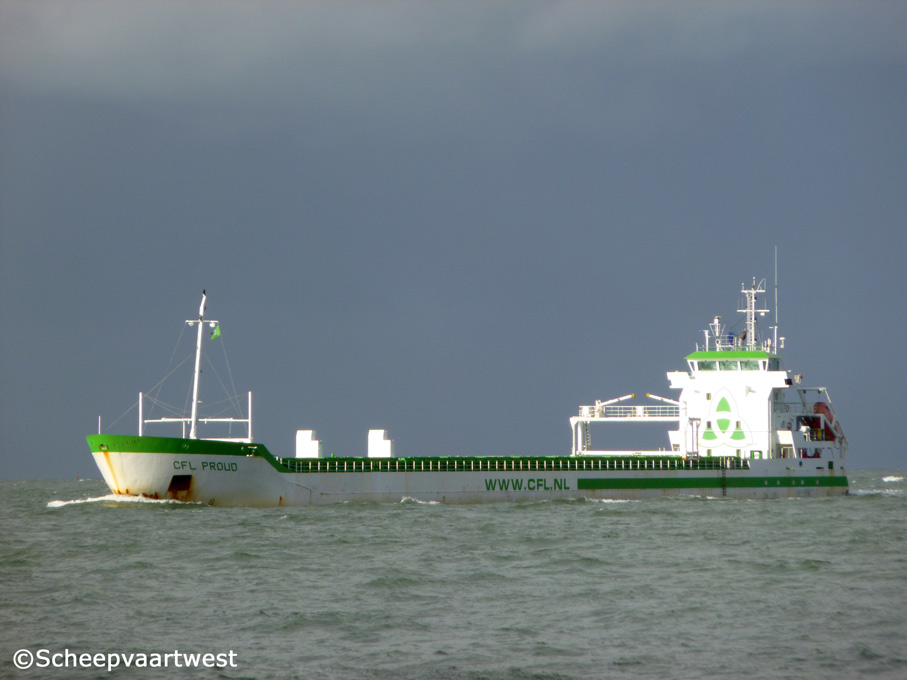

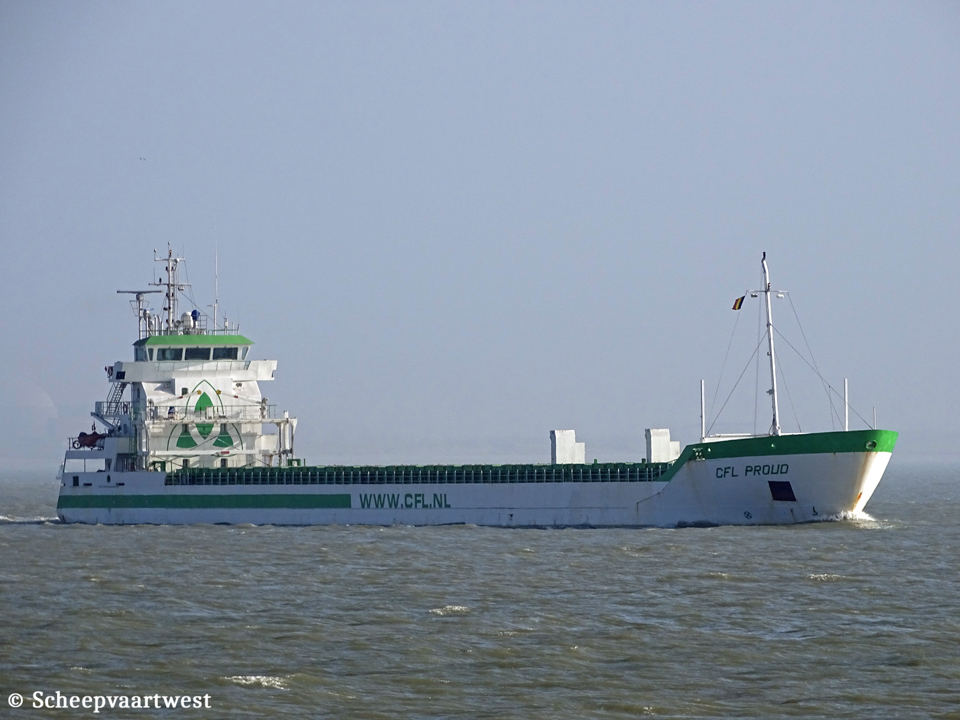

CFL PROUD |
|
Type |
General cargo ship - Heavycargo - Equipped for carriage of containers Boxshaped Singledecker Jumo 6500 1A type |
|
IMO-number |
9386433 |
|
Call sign |
PBUI |
|
Flag |
The Netherlands |
|
Port of registry |
Groningen |
|
GT |
4.106 t |
|
DWT |
Summer: 6.500 t |
|
NT |
1.747 t |
|
Number of 20ft containers |
144 (60 FEU + 24 TEU) in hold 112 (52 FEU + 8 TEU) on hatches Total: 256 |
|
Length |
118,90 m overall 111,69 m between perpendiculars |
|
Breadth |
13,43 m |
|
Draught |
Summer: 6,08 m full loaded |
|
Air draft |
24,30 m in ballast |
|
Freeboard |
3.030 mm |
|
Depth |
9,40 m |
|
Speed |
17,0 knots |
|
Built |
2009 |
|
Date of completion |
27.11.2009 |
|
Builder |
Peters Shipyard |
|
Yard number |
819 |
|
Hull material |
Steel |
|
Watertight compartments |
10 |
|
Movable bulkhead |
1x Bulkhead (15,0 t) in hold 2 (8 Positions) |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 6M25 - 4 stroke 6 cylinder 255 x 400 mm diesel engine -1.980 kW / 2.690 kW at 750 rpm Builder: Caterpillar Motoren GmbH & Co., KG, Kiel - Germany |
|
Propellers |
1x Screw propeller controllable pitch - aft at 172 rpm |
|
Shaft generator |
1x 435 kVA - 348 kW |
|
Generators |
1x Diesel generatorset 81 kVA - 65 kW - 102 hp |
|
Bow thruster |
1x Veth VT-240 |
|
Number of holds |
2 Hold 1: 18,70 x 11,20 x 9,00 m Hold 2: 59,90 x 11,20 x 9,00 m |
|
Hold capacity |
Hold 1: 66.559 ft³ Hold 2: 213.202 ft³ |
|
Number of hatches |
2 Hatch.1: 18,70 X 11,20 m (3 Pcs.) Hatch 2: 59,90 X 11,20 m (10 Pcs.) |
|
Hatch cover type |
Pontoon type -13 Pontoons (3 + 10) |
|
Strength |
Tanktop: 15,0 t/m² Hatchcover: 1,75 t/m² |
|
Ventilation |
6x Air changes per hour (Empty hold) |
|
Tank capacities |
IFO 380: 333 m³ Gasoil : 34 m³ Ballast capacity : 2.390 m³ |
|
Manager |
CFL Shipmanagement (Canada Feeder lines) |
|
Registered owner |
B.V. Scheepvaartonderneming CFL Proud |
|
Latest data adjustment |
05 April 2014 |
