Kazakh 01

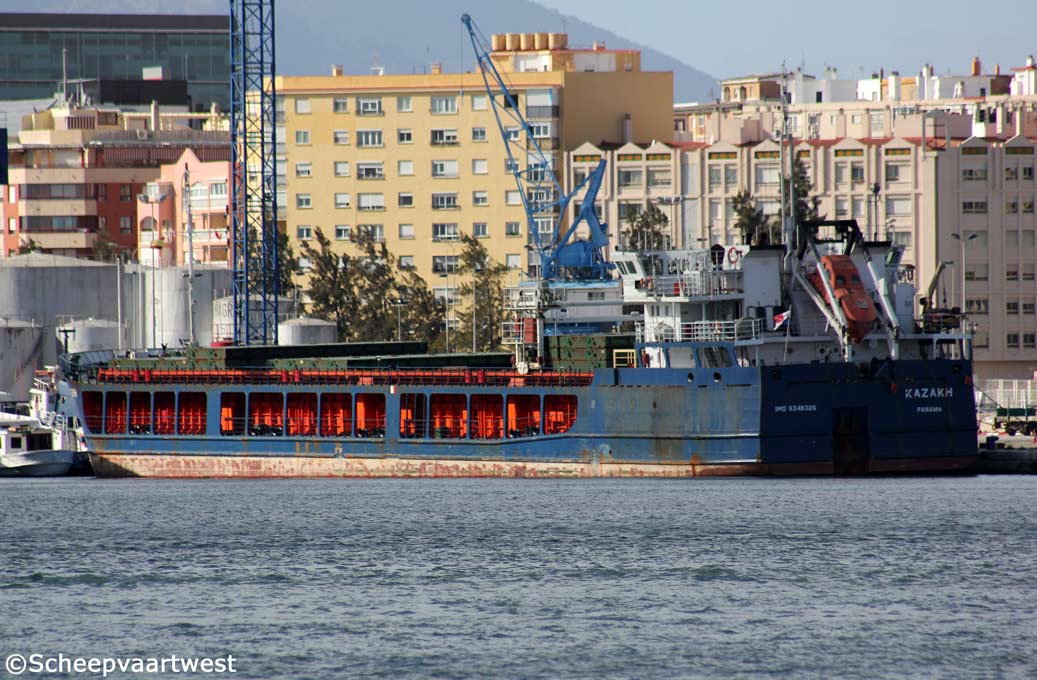

Malaga - Spain 28 January 2014



Name

KAZAKH

Type

General cargo ship

Subtypes

Adapted for bulk cargoes - Wood products - Container facility - River/sea

IMO-number

9348326

Call sign

3FYC3

Flag

Republic of Panama

Port of registry

Panama City

GT

4.182 t

DWT

Summer: 5.509 t

NT

2.373 t

Displacement

7.479 t

Number of 20ft containers

225

Length

108,33 m overall

102,20 m between perpendiculars

Breadth

16,74 m extreme

16,50 m moulded

Draught

4,79 m

Air draft

13,20 m

Depth

5,50 m

Speed

10,5 knots

Built

2006

Keel laid

20.12.2004

Date of completion

26.05.2006

Builder

Onega Shipyard
Petrozavodsk
Russia

Yard number

004

Hull material

Steel

Bulkheads

5

Continuous decks

1

Main engine

2x MaK 6M20 - 4 stroke single acting 6 cylinder 200 x 300 mm diesel engine each 1.020 kW at 900 rpm

Starter type: Compressed air

Built: 2005 Germany

Propellers

2x Rolls Royce Aquamaster US-155FP azimuth stern drive propellers - 4 blades diameter 2.000 mm

Generators

2x Volvo Penta D9 - 6 cylinder 120 x 138 mm diesel engine each 239 kW at 1.500 rpm coupled with generator each 215 kW

Built: 2005

1x Volvo Penta D74-T - 6 cylinder 107 x 138 mm diesel engine 135 kW at 1.500 rpm coupled with generator 105 kW

Built: 2005

Bow thruster

1

Number of holds

3

Hold capacity

Hold 1: 2.211 m³

Hold 2: 2.872 m³

Hold 3: 2.748 m³

Total: Grain 7.831 m³

Number of hatches

3

Hatch 1: 21,40 x 12,70 m

Hatch 2: 27,30 c 12,70 m

Hatch 3: 26,50 x 12,70 m

Type of hatches

Pontoon

Deck Strength

Hatchcovers: 2,6 t/m²

Tanktop: 7,5 t/m²

Tank capacities

Fuel oil: 188 t

Water ballast: 2.346 t

Deck cranes

1xGantry crane
1x Boat crane

Manager

Onegoship CJSC
Petrozavodsk
Russia

Owner

Baltasar Shipping SA
Kareliya
Russia.

Registered owner

Baltasar Shipping S.A
ul.Gapsalskaya 5, lit. A
Panama City
Republic of Panama

Latest data adjustment

25 March 2014
