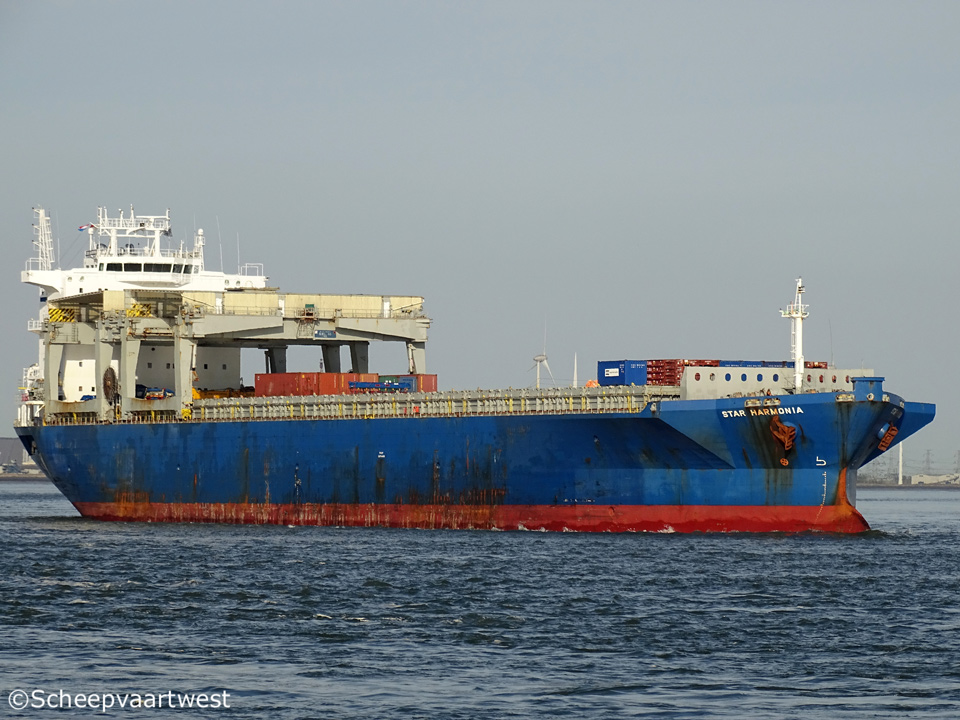

Star Harmonia 05

Westerschelde 06 May 2016

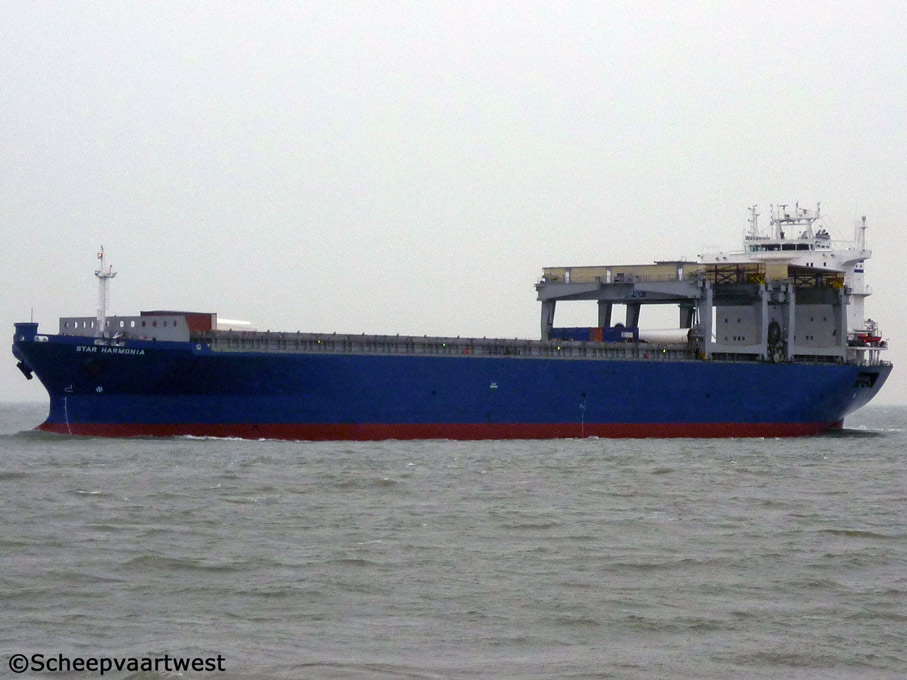

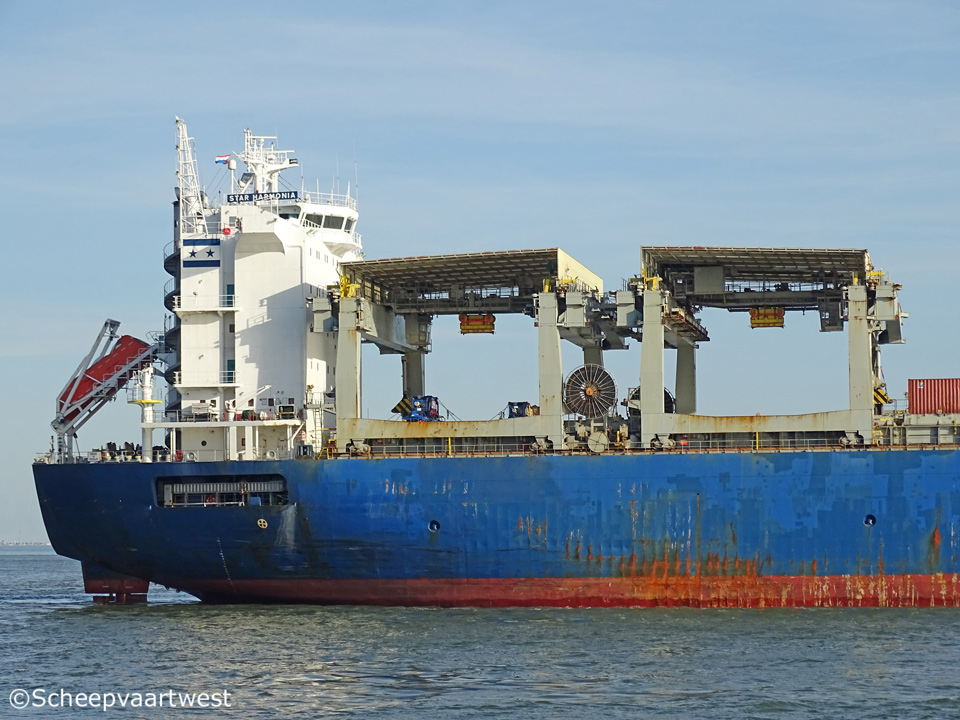

Star Harmonia 06   Star Harmonia 01
Westerschelde 06/05/16   Westerschelde 07/03/12



Name

STAR HARMONIA

Type

General cargo carrier with container facilities

H-class vessel

Carriage of

Baled pulp, ore, grain, cement, paper, packaged lumber and other solid bulk cargoes

IMO-number

9103130

Call sign

LAGB5

Flag

Norway

Port of registry

Bergen

GT

32.744 t

DWT

Summer: 46.647 t

NT

13.647 t

Number of 20ft containers

On deck: 600

In hold: 1.350

Total: 1.950

Length

198,00 m overall

187,00 m between perpendiculars

Breadth

31,00 m moulded

Draught

12,30 m moulded

12,47 m extreme

Air draft

Max.: 46,00 m

Depth

19,00 m to main deck

Speed

16,0 knots

Built

1998

Keel laid

12.06.1997

Launch date

05.09.1997

Date of completion

09.01.1998

Builder

Mitsui Tamano Engineering & Shipbuilding
Tamano
Japan

Yard number

1419

Hull material

Steel

Hull type

Double bottom

Bulkheads

Transverse: 14

Main engine

1x Mitsui B&W 6S60MC - 2 stroke single acting 6 cylinder diesel engine - 10.520 kW at 96,0 rpm

Turbo charger: MAN B&W N-57 TM8 141T

Propellers

1

Boilers

Auxiliary Boiler OSAKA Boiler - type: AQ 12 – 160

Steam production: 1.200 kg/h

Working pressure: 7 kg/cm²

Fuel oil consumption: 89 kg/h

Exhaust gas economizer OSAKA Boiler - type: EG-183242-H

Steam production: 1.100 kg/h

Working pressure: 6 kg/cm²

Exhaust gas amount: 79.220 kg/h

Generators

2x Rolls Royce KRG-8 - 8 cylinder single acting diesel engines 1.395 kW at 720 rpm generator output 1.625 kVA - 450 volt at 720 rpm

1x Rolls Royce KRG-5 - 5 cylinder single acting diesel engine 775 kW at 720 rpm generator output 922 kVA - 450 volt at 720 rpm

Emergency generator

1x Yanmar 6CHL-TH diesel generatorset

Compressed air receivers

2x SPERRE HV2/200 - 145 m³/h capacity at 30,0 bar

1x SPERRE HV2/300 - 439 m³/h capacity at 8,0 bar

One diesel generator cold start air compressor SAMVA S3A - 5 m³/h at 30,0 bar

Bow thruster

One bow- and one stern thruster 1.100 kW each thruster

Number of holds

11x Box-shaped cargo holds

Cargo capacity

Hold 1: 4.048,8 m³ / 142.983 ft³

Hold 2: 5.510,5 m³ / 194.603 ft³

Hold 3: 6.206,4 m³ / 219.179 ft³

Hold 4: 6.206,4 m³ / 219.179 ft³

Hold 5: 6.206,4 m³ / 219.179 ft³

Hold 6: 6.206,4 m³ / 219.179 ft³

Hold 7: 6.206,4 m³ / 219.179 ft³

Hold 8: 6.206,4 m³ / 219.179 ft³

Hold 9: 6.206,4 m³ / 219.179 ft³

Hold 10: 5.722,2 m³ / 202.079 ft³

Hold 11: 2.764,7 m³ / 97.635 ft³

Total: 61.491 m³ / 2.171.553 ft³

Number of hatches

11

Fresh water generator

One fresh water generator NIREX

Type JWP-26-C100

Capacity: 30 t/day

Purifiers and separators

2x HFO purifiers, Alfa Laval type MFPX307TDF-21-60 -

2.200 l/h capacity at 98 degree centigrade

2w M/E lube oil purifiers Alfa Laval type MOPX205TGT-24-60 - 1.500 l/h capacity at 85 degree centigrade

1x HEISHIN HMS-200, 15 ppm Bilge water separator 2 m³/h

1x Westfalia Bilge water separator model WSD -18-01-037 - 15 PPM, Throughput: 3.000 l/h

Max load

Tanktop: 28 t/m²

Ballast capacity

15.594,7 m³

Gantry cranes

2 x Mitsui Paceco make - SWL 40 t

Hoisting speed: 35,00 m/min

Lowering speed: 43,00 m/min

Trolley speed: 76,00 m/min

Gantry speed 30,00 m/min

Turn table rotation: 1 rpm

Outreach, from shipside: 8,00 m

Clearance between legs: 13,95 m

Auxiliary hoist capacity 6,0 t

Crew size

29

Manager

Grieg Star AS

Bergen

Norway

Previous managers

1998 - 2003 A/S Billabong

Operator

Grieg Star

Owner

Grieg International II AS
Bergen
Norway

Previous owners

1998 - 2001 Harmonia Inc.

2001 - 2008 Grieg Poseidon AS

Latest data adjustment

16 March 2014
