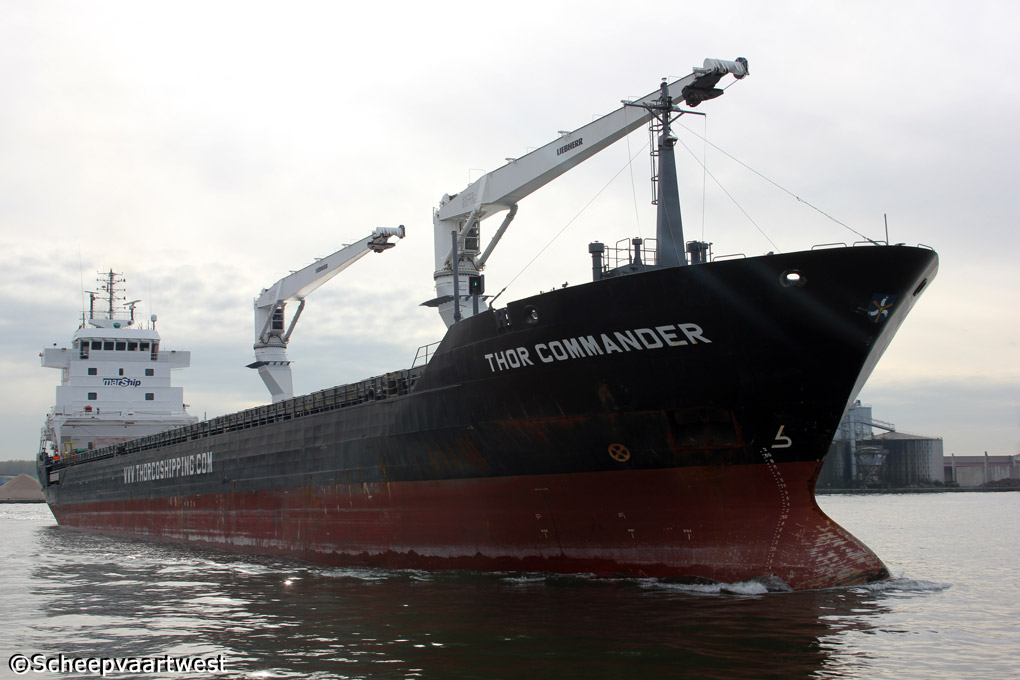

Thor Commander 01
Antwerpen 08 November 2013

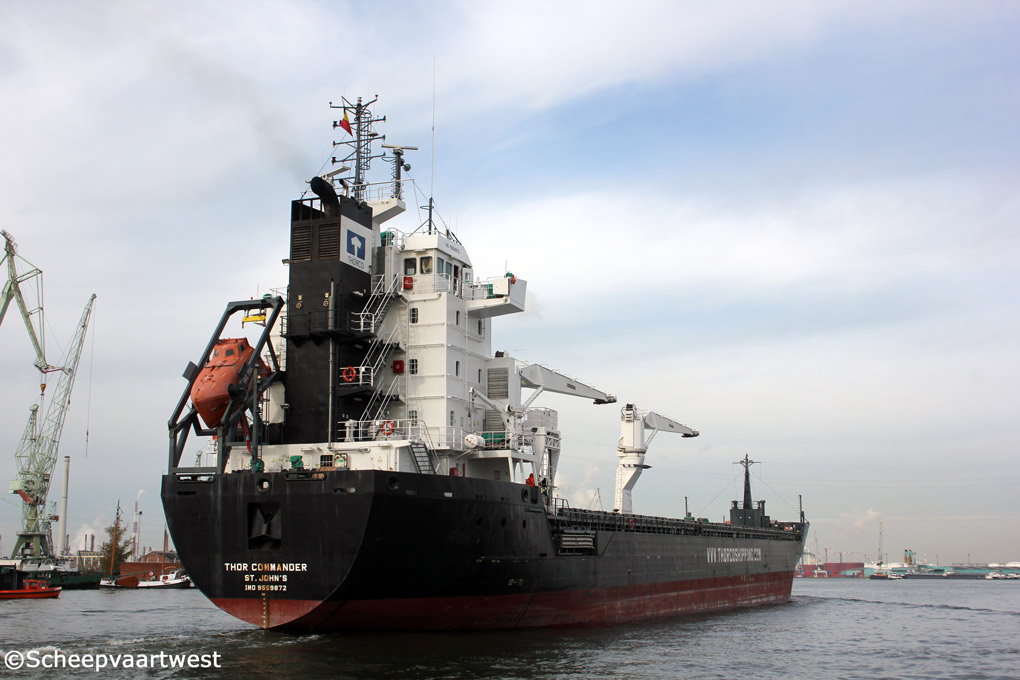

Thor Commander 02
Antwerpen 08/11/13



Name

THOR COMMANDER

Previous names

2011 Launch as: Sinus Aestuum

Type

Multi-purpose general cargo ship - Heavycargo - Equipped for carriage of containers

IMO-number

9559872

Call sign

V2FP5

Flag

Antigua & Barbuda

Port of registry

St. John's

GT

6.351 t

DWT

Summer: 9.382 t

NT

3.617 t

Number of 20ft containers

474

Number of 40ft containers

228

Length

132,20 m overall

124,56 m between perpendiculars

Breadth

15,87 m

Draught

7,79 m full loaded

Air draft

38,00 m

Freeboard

9.050 mm

Depth

9,65 m

Speed

14,8 knots

Built

2011

Date of completion

01.10.2011

Builder

Jiangsu Yangzi Changbo Shipbuilding Co.,Ltd.
Jiang Yin
China

Yard number

CBSY07-017

Hull material

Steel

Main engine

1x 4 stroke 8 cylinder 320 x 400 mm diesel engine - 4.000 kW / 5.435 hp at 750 rpm

Built: 16.12.2008

Builder: Rolls-Royce Marine AS, Engines Dpt Bergen, Hordvikneset 125, 5108 Hordvik - Norway

Propellers

1x Screw propeller controllable pitch -aft at 148 rpm

Boilers

1x CHR 87,45 m² - 10,0 bar
1x CHO 17,50 m² - 10,0 bar

Shaft generator

1x 694 kVA - 555 kW

Generators

2x Main diesel generatorsets each 405 kVA - 324 kW - 455 hp

Emergency generator

1x Diesel generatorset 118 kVA - 94 kW - 174 hp

Bow thruster

1x 500 kW

Number of holds

2

Hold 1:

Tank top: 473,60 m²

Tweendeck: 512,10 m²

Hatchcover: 542,10 m²

Total: 1.527,80 m²

Hold 2:

Tank top: 683,70 m²

Tweendeck: 691,30 m²

Hatchcover: 717,30 m²

Total: 2.092,30 m²

Total capacity of holds

Hold 1: Bale/grain 5.028,19 m³

Hold 2: Bale/grain 7.010,23 m³

Total: 12.038,42 m³

Permissible loads

Tanktop hold 1: 14,7 t/m²

Tanktop hold 2: 20,0 t/m²

Tweendeck: 3,5 t/m²

Hatchcover: 1,75 t/m²

Ventilation

12 air changes pr. hour

Tank capacities

HFO: 619,73 m³

MGO: 58,93 m³

Ballast: 3.537,70 m³

Fresh water: 73,11 m³

Cargo gear

2x Electro hydraulic cranes - SW 60 t/16 m each

Cranes combinable: 120 t/16 m

Manager

Commercial: Thorco Shipping A/S

Technical: marShip Bereederungs Gmbh - Germany

Owner

Marship
Haren Ems
Germany

Registered owner

MarShip GmbH & Co. KG MS Sinus Aestuum

Last data update

20 January 2014
