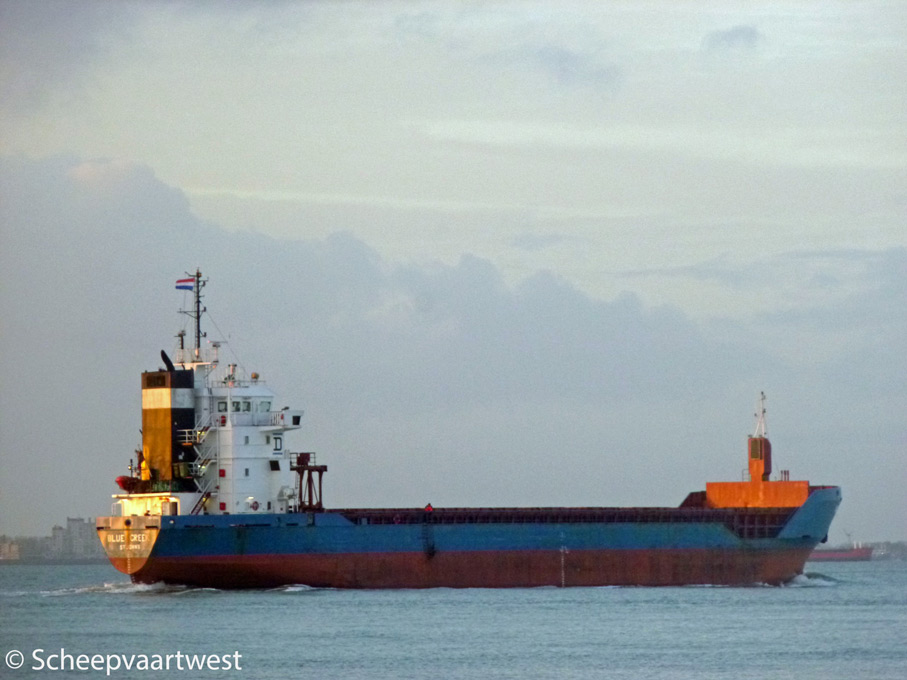

| Westerschelde 30 November 2013 |
|
Name |
BLUE CREEK |
|
Previous names |
Launch as Baldur 2000 - 04.2011 River Blyth |
|
Type |
General Cargo Ship - Strengthened for heavy cargo - Equipped for carriage of containers |
|
IMO-number |
9211078 |
|
Call sign |
V2AV8 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John's |
|
GT |
2.858 t |
|
DWT |
Summer: 4.909 t |
|
NT |
1.546 t |
|
Number of 20ft containers |
183 |
|
Length |
89,75 m overall 84,98 m registered |
|
Breadth |
13,60 m |
|
Draught |
6,36 m |
|
Forecastle |
7,80 m |
|
Bridge |
14,05 m |
|
Quarterdeck |
50,98 m |
|
Depth |
7,20 m |
|
Speed |
12,2 knots |
|
Built |
2000 |
|
Keel laid |
30.06.1998 |
|
Launch date |
25.03.2000 |
|
Date of completion |
04.2000 |
|
Builder |
Scheepswerf Pattje B.V. |
|
Yard number |
411 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double hull Double bottom |
|
Watertight bulkheads |
4 |
|
Continuous decks |
1 |
|
Main engine |
1x Krupp MaK 6M25 - 4 stroke 6 cylinder 255 x 400 mm diesel engine - 1.800 kW at 750 rpm Year of manufacture: 2000 Manufacturer: Krupp Mak Maschinenbau GmbH |
|
Propellers |
1x Controllable pitch propeller - aft at 175 rpm |
|
Electric installations |
2x Plants each 380/220 V - 155 kVA 1x Plant 380 V - 330 kVA 1x Plant 380 V - 120 kVA |
|
Shaft generator |
1x 330 kVA |
|
Generators |
2x Main diesel generatorsets each 155 kVA |
|
Emergency generator |
1x Diesel generatorset 120 kVA |
|
Compressed air receivers |
2x Receivers each 250 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster, forward |
|
Cargo capacity |
Grain & Bales: 5.618 m³ |
|
Hatches |
62,90 x 11,00 m |
|
Tank capacities |
Fuel oil: 355 m³ Ballast water: 1.734 m³ |
|
Anchor equipment |
3 Anchors weight each 2.100 kg Chain length: 440,00 m |
|
Manager |
Kapitän Manfred Draxl Schiffahrts GmbH & Co. KG |
|
Owner |
Draxl Schiffahrt |
|
Registered owner |
Condra Schiffahrts GmbH & Co. KG MS "BALDUR" |
|
Last update |
09 December 2013 |
