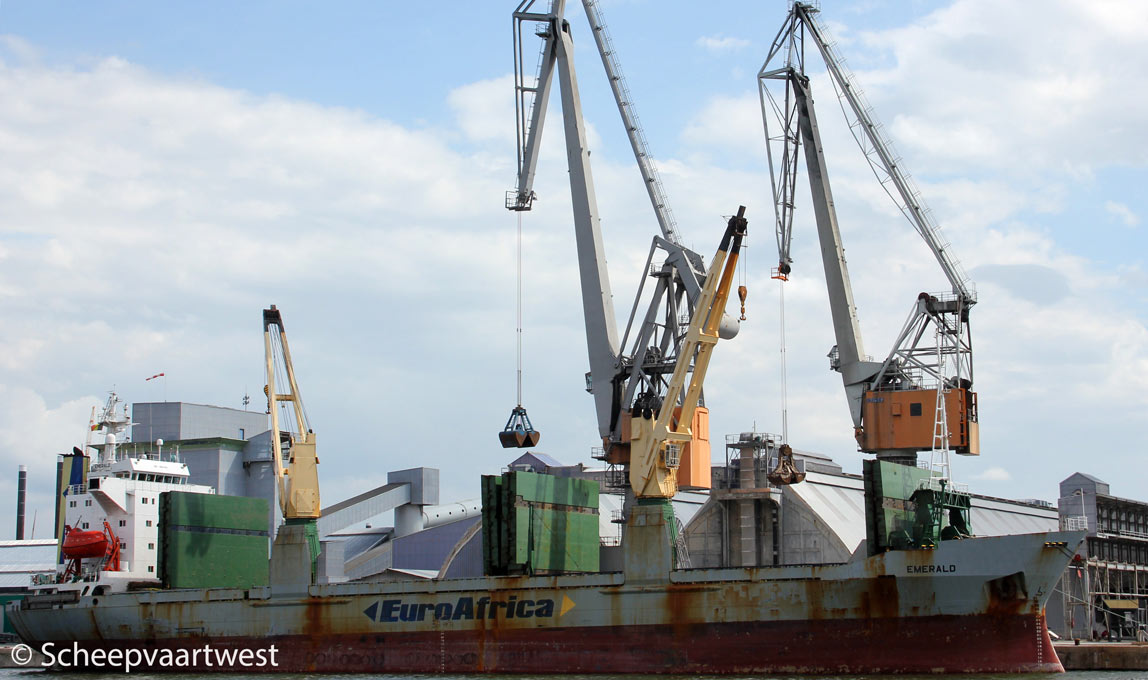

Emerald 01
Antwerpen 29 July 2013



Name

EMERALD

Previous names

Launch as: 1991 Aurora One

1991 - 08.1992 Mekhanik Poveroy

1992 - 01.1993 Kidira

1993 - 01.1995 Socol 1

1995 - 06.1996 Kowie

1996 - 03.1998 Socol 1

1998 - 03.2000 CMBT Congo

03.2000- 10.2000 Socol 1

2000 - 06.2001 MSC Apapa

2001 - 03.2011 Socol 1

Type

General dry cargo ship - Double decker vessel, convertible to single decker

IMO-number

9004463

Call sign

5BFE3

Flag

04.03.2011 Cyprus

Previous flags

1991 - 2000 Republic of Panama

2000 - 2011 Malta

Port of registry

04.03.2011 Limassol

GT

6.030 t

DWT

Summer: 9.597,53 t

Winter: 9.268,02 t

Lightweight

3.668,19 t

Displacement

13.266,19 t at summer draft

Number of 20ft containers

564

Length

113,12 m overall

Breadth

18,90 m moulded

Draught

6,50 m

Air draft

34,00 m keel to mast

Freeboard

Summer: 2.965 mm

Winter: 2.728 mm

Depth

11,28 m moulded

Speed

14,0 knots

Built

1991

Keel laid

1991

Date of completion

31.07.1991

Builder

Miho Zosensho Shipyard
Shizuoka
Japan

Yard number

1381

Hull material

Steel

Main engine

1x Hanshin 6LF58 diesel engine - 4.413 kW

Propellers

1

Number of holds

Lower hold: 73,50 x 15,70 x 4,45 m - Area: 1.084,68 m²

Tween deck: 75,60 x 15,70 x 6,00 m - Area: 1.127,28 m²

Hatchway dimensions

Weather deck:

Hatch 1: 33,80 x 15,70 m

Hatch 2: 35,70 x 15,70 m

Tweendech:

Hatch 1: 70,70 x 15,70 m

Hatch cover type

Weather deck:

MacGregor, end folding type, each cover of 4 flat steel panels, hydraulic

Tweendeck:

Flush type, side opening with crane, except first section opening fwd by hydraulic

Cargo capacity

Tweendeck hatches closed:

Grain: 12.581,89 m³ / Bales: 11.860,22 m³

Tweendeck hatches open:

Grain: 11.590,57 m³ / Bales: 11.527,75 m³

Maximum permissible loads

Hatch covers (Weather deck): 1,75 t/m²

Twin deck covers: 3,70 t/m²

tank top: 20,0 t/m²

Cargo gear

2x Cranes - SWL 50,0 t each

Technical / Crewing & Operations managers

Unicom Management Services (Cyprus) Ltd.

Commercial managers

Euroafrica Shipping Lines Cyprus Limited

Previous managers

1991 - 2009 Unicom Management Services (Cyprus) Ltd.

2009 - 2011 Unicom Management Services (St. Petersburg) Ltd.

Operator

EuroAfrica

Owner

EuroAfrica Shipping Lines Cyprus
Limassol
Cyprus

Previous owners

1991 - 2011 Pevek Navigation Co. Ltd.

2011 - 2011 Unicom Management Services (Cyprus) Ltd.

Registered owner

Gerlia Shipping Co., Ltd.

Renamed

2016 Vyacheslav Anisimov - Sierra Leone - Call sign: 9LU2335

Last update

09 April 2016
