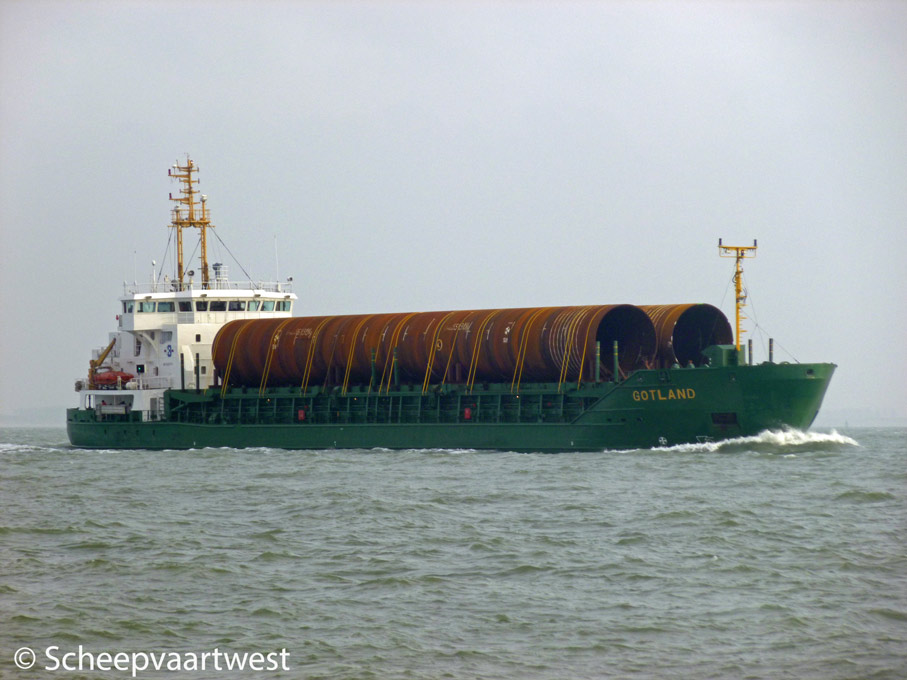

Gotland - IMO 9226774

Name

GOTLAND

Type

General multi-purpose cargo ship - singledecker - Equipped for carriage of containers - Strengthened for heavy cargo

IMO-number

9226774

Call sign

PBFP

Flag

The Netherlands

Port of registry

Winschoten

GT

3.925 t

DWT

4.630 t

NT

1.782 t

Number of 20ft containers

225

Length

99,87 m overall

95,97 m registered

Breadth

16,00 m registered

Draught

5,10 m

Forecastle

8,07 m

Freeboard

2.265 mm

Depth

7,35 m

Speed

12,0 knots

Built

2001

Keel laid

08.06.1998

Launch date

30.03.2001

Date of completion

11.2001

Builder

Yangfan Group Co., Ltd. Zhoushan Ship Manufactory
Lujiazhi Island, Putou District
Zhoushan 316100, Zhejiang Province
People's Republic of China

Yard number

30212

Hull material

Shipbuilding steel (standard)

Hull type

Double hull

Double bottom

Watertight bulkheads

4

Continuous decks

2

Main engine

1x MAK 6 M 32 - 4 stroke 6 cylinder 320 x 480 mm diesel engine - 2.880 kW / 3.915 hp at 600 rpm

Year of manufacture: 2000

Manufacturer: Caterpillar Motoren GmbH & Co. KG
Falckensteiner Str. 2
24159 Kiel
Federal Republic of Germany

Propellers

1x Controllable pitch propeller - aft at 288 rpm

Boilers

Water heater, oil fired - 4,0 bar

Heating surface: 7,36 m²

Year of manufacture: 2000

Electric installations

1x Plant 380/220 V - 279 kVA

1x Plant 380 V - 500 kVA

1x Plant 380 V - 279 kVA

Shaft generator

1x 500 kVA

Generators

1x Main diesel generatorset 279 kVA

Emergency generator

1x Diesel generatorset 279 kVA

Compressed air receivers

1x Receiver 500 litres- 30,0 bar

1x Receiver 250 litres - 30,0 bar

1x Receiver 100 litres - 10,0 bar

1x Receiver 40 litres - 8,0 bar

Bow thruster

1x Fixed pitch propeller SCHOTTEL - 180 kW, forward

Cargo capacity

Grain: 7.050 m³

Tank capacities

Fuel oil: 261 m³

Ballast water: 2.577 m³

Anchor equipment

3x Anchors weight each 2.460 kg

Chain length: 467,50 m

Crew size

16

Manager

Reider Shipping B.V.
Zeefbaan 20c
9672 BN Winschoten
The Netherlands

Operator

Hermann Buss GmbH & Cie KG
Leer
Federal Republic of Germany

Registered owner

Scheepvaartbedrijf MS "GOTLAND" C.V.
Zeefbaan 20c
9672 BN Winschoten
The Netherlands

Last update

02.05.2013
