Westerschelde 18 September 2018 |
 |
| Westerschelde 12/11/12 |
|
Name |

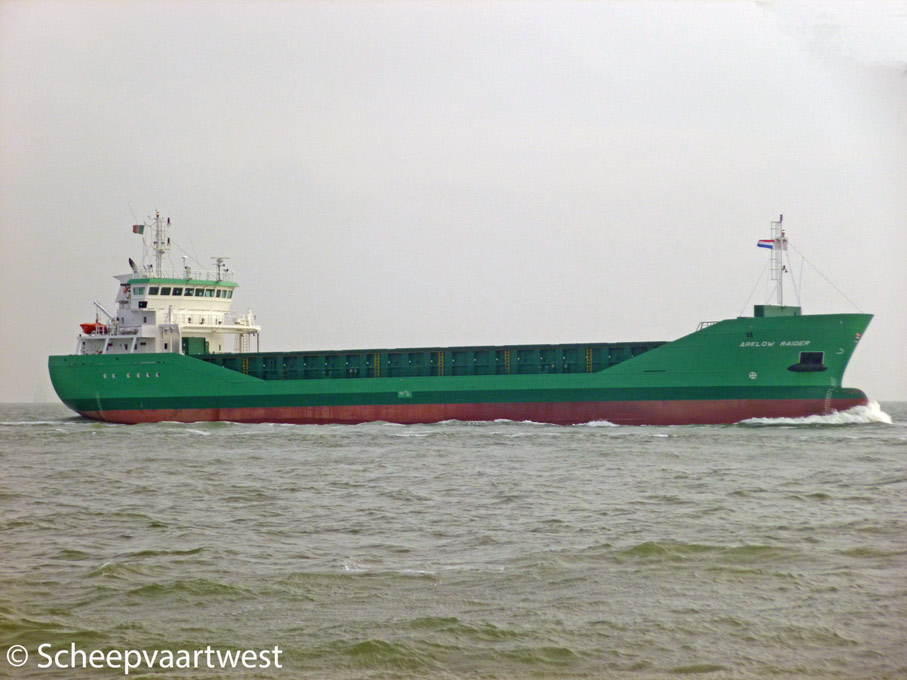

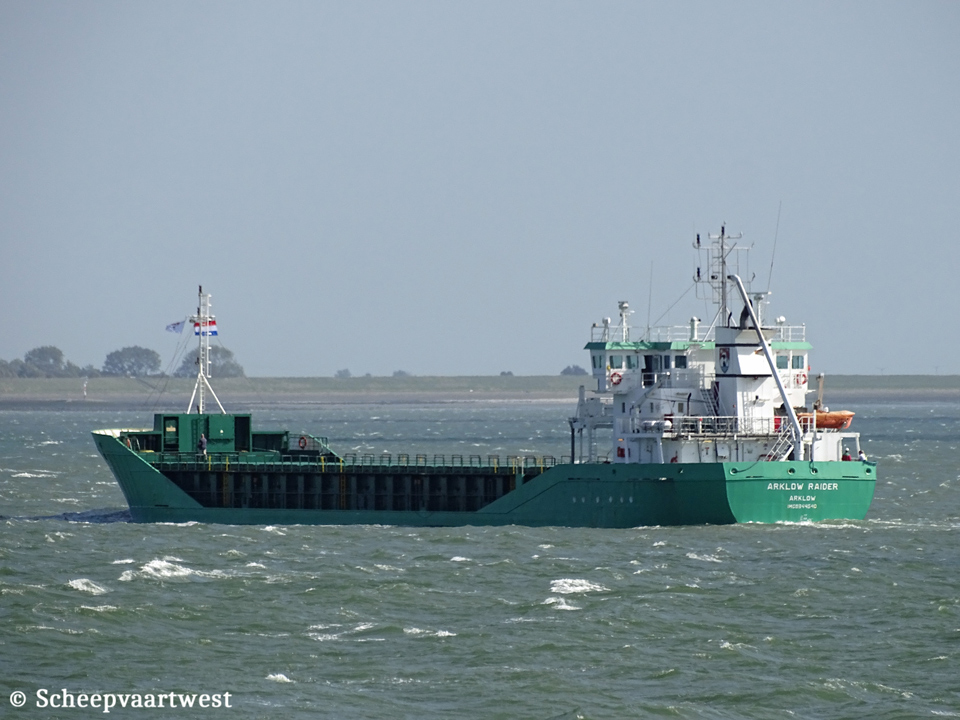

ARKLOW RAIDER |
|
Type |
General multi-purpose cargo ship - Tank top strengthened for heavy cargoes |
|
IMO-number |
9344540 |
|
Call sign |
EIXS |
|
Flag |
Ireland |
|
Port of registry |
Arklow |
|
GT |
2.999 |
|
DWT |
Summer: 4.868 t Winter: 4.721,3 t |
|
NT |
1.639 |
|
Displacement |
5.906 t |
|
Number of 20ft containers |
In Hold: 102 On deck: 36 Total: 138 |
|
Length |
89,99 m overall 84,98 m between perpendiculars |
|
Breadth |
14,00 m moulded 14,18 m extreme |
|
Draught |
Summer: 6,10 m Winter: 5,97 m Ballast: 4,40 m |
|
Air draft |
Min: 20,60 m |
|
Freeboard |
1.286 mm |
|
Depth |
7,15 m moulded |
|
Speed |
11,5 knots |
|
Build |
2007 |
|
Keel laid |
08/12/2004 |
|
Launch date |
24/08/2007 |
|
Date of completion |
03/10/2007 |
|
Builder |
Barkmeijer Stroobos B.V. Stroobos The Netherlands |
|
Yard number |
313 |
|
Hull material |
Steel |
|
Movable bulkhead |
2x May be placed in 9 positions for cargo separation |
|
Continuous decks |
1 |
|
Main engine |
1x Caterpillar MaK 6M25 - 4 stroke 6 cylinder 255 x 400 mm combustion engine 1.499 kW / 2.038 hp at 750 rpm Built: 12/2006 Builder: Caterpillar Motoren GmbH & Co. KG, Kiel - Germany |
|
Gearbox |
Scana Volda gearbox |
|
Propellers |
1x Screw propeller controllable pitch |
|
Shaft generator |
1x Shaft alternator M8BM315MB4 - 400 kVA - 320 kW |
|
Generators |
2x Sisu Diesel 645BDBIC - 200 kW diesel engines at 1.500 rpm connected with Stamford generators each 215 kVA |
|
Bow thruster |
1x Electric bow thruster 250 kW |
|
Number of holds |
1 62,40 x 11,50 x 8,35 m |
|
Hold capacity |
Grain & Bales: 207.391 ft³ / 5.873 m³ incl. bulkheads |
|
Hatches type |
Roden Staal pontoon system |
|
Max permitted loads |
Maximum hatch top loading: 1,5 t/m² Maximum tank top loading: 15,0 t/m² |
|
Tank capacities |
Ballast: 1.839 m³ HFO: 150,52 m³ GO: 36,42 m³ Fresh water: 88 m³ Lub oil: 8 m³ |
|
Crew |
7 |
|
ISM & commercial manager |
Arklow Shipping ULC Hoofdweg 18 3067 GH Rotterdam The Netherlands |
|
Registered owner |
Invermore Shipping Ltd. c/o Arklow Shipping Unlimited Co (Arklow Shipping ULC) North Beach, Ferrybank, Arklow, Co Wicklow Ireland |
|
Latest data adjustment |
28 December 2025 |
