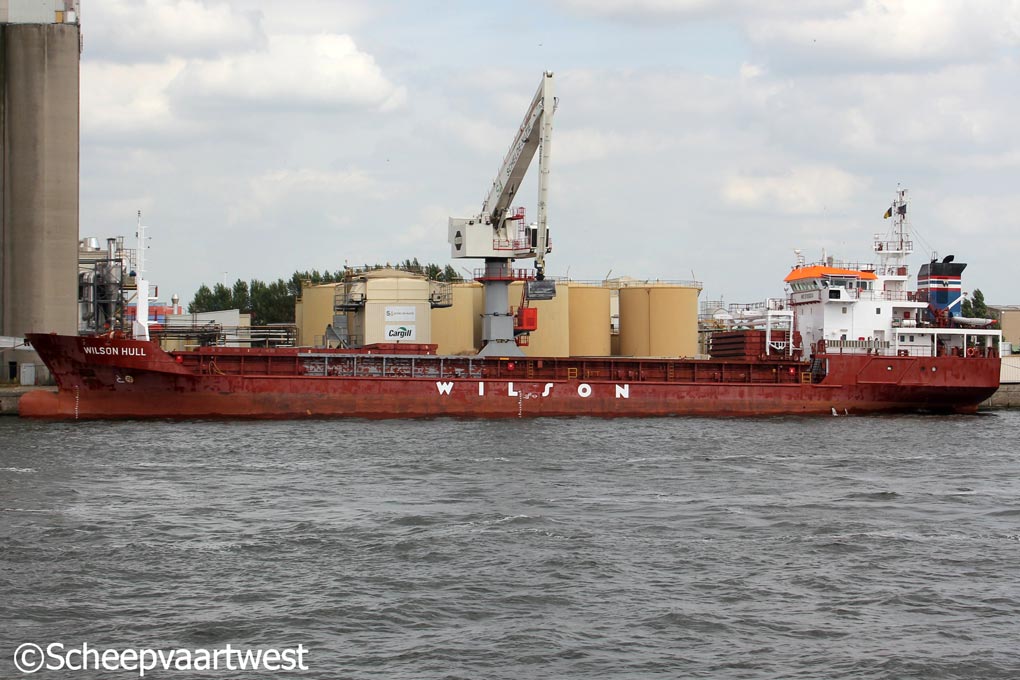

Wilson Hull 02
Antwerpen 16 August 2012

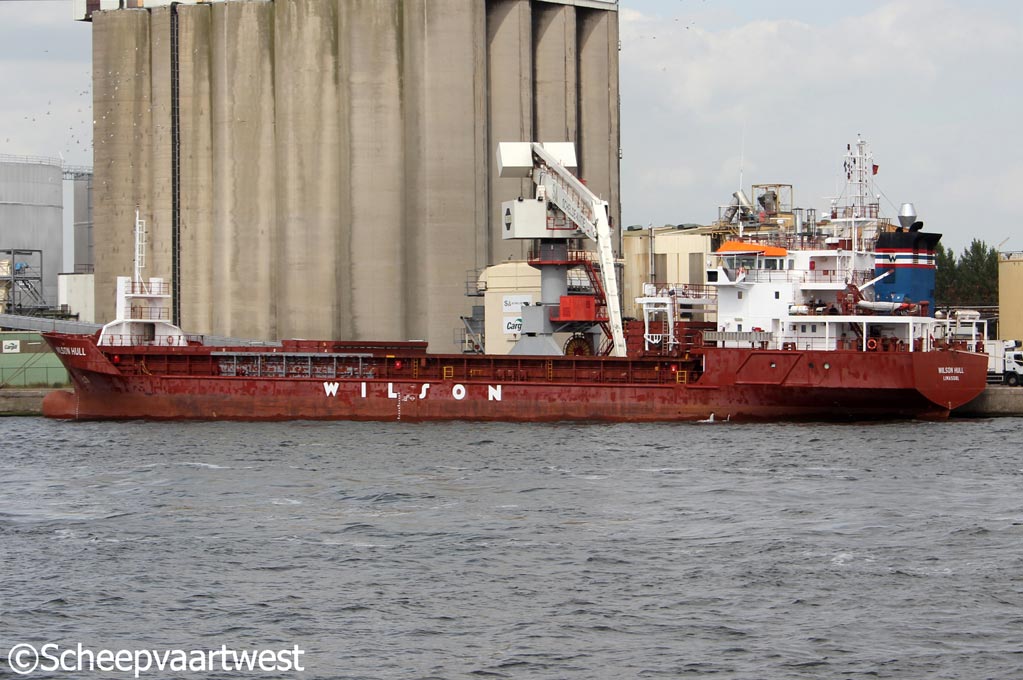

Wilson Hull 01
Antwerpen 16/08/12



Name

WILSON HULL

Previous names

2002 - 17.02.2005 Joching

Type

General cargo ship with double hull - Strengthened for heavy cargo

IMO-number

9198604

Call sign

P3DQ9

Flag

Cyprus

Port of registry

Limassol

GT

3.037 t

DWT

4.247 t

NT

1.503 t

Number of 20ft containers

325

Length

89,87 m overall

84,90 m registered

Breadth

15,20 m registered

Draught

5,64 m

Air draft

23,50 m

Keel top antenna

27,35 m

Depth

7,10 m moulded

Speed

12,3 knots

Built

2002

Keel laid

30.06.1998

Launch date

30.10.2001

Date of completion

01.2002

Builder

Rousse Industry A.D.
5, Matei Stoikov Street
7000 Ruse
Bulgaria

Yard number

1001

Hull material

Shipbuilding steel (standard)

Hull type

Double bottom

Watertight bulkheads

4

Cargo hold is equipped

2 Moveable bulkheads, 5 positions

Continuous decks

1

Main engine

1x Caterpillar MaK 8 M 25 - 4 stroke 8 cylinder 255 x 400 mm diesel engine - 2.400 kW / 3.263 hp at 750 rpm

Year of manufacture: 2001

Manufacturer: Caterpillar Motoren GmbH & Co. KG
Falckensteiner Str. 2
24159 Kiel
Federal Republic of Germany

Propellers

1x Controllable pitch propeller - aft at 185 rpm

Boilers

1x Water heater, oil fired - 5,0 bar

Year of manufacture: 2001

Electric installation

2x Plants each 380/220 V - 270 kVA

1x Plant 380 V - 550 kVA

1x Plant 380 V - 88 kVA

Shaft generator

1x 550 kVA

Generators

2x Diesel generatorsets each 270 kVA

Emergency generator

1x Diesel generatorset 88 kVA

Compressed air receivers

2x Receivers each 250 litres - 30,0 bar

1x Receiver 125 litres - 30,0 bar

1x Receiver 10 litres - 30,0 bar

Bow thruster

1x 225 kW

Number of holds

1

Dimension: 56,85 x 12,80 x 8,00 m

Number of hatches

1

Dimension: 52,65 x 12,80 m

Hatch type

Pontoon type

Cargo hold capacity

Grain: 5.568 m³ / 196.634 ft³

Bales: 5.250 m³ / 185.404 ft³

Tank capacities

Fuel oil: 197 m³

Ballast water: 1.958 m³

Anchor equipment

3x Anchors weight each 2.100 kg

Chain length: 440,00 m

Crew size

12

Manager

Österreichischer Lloyd Seereederei (Cyprus) Ltd.
67 Franklin Roosevelt Avenue 3rd Floor
3011 Limassol
Republic of Cyprus

Operator

Wilson Shipping

Registered owner

MV "JOCHING" Shipping Co. Ltd.
c/o Österreichischer Lloyd Seereederei (Cyprus) Ltd.
67 Franklin Roosevelt Avenue 3rd Floor
3011 Limassol
Republic of Cyprus

Last update

04.01.2013
