| Antwerpen 15 July 2012 |
|
Name |

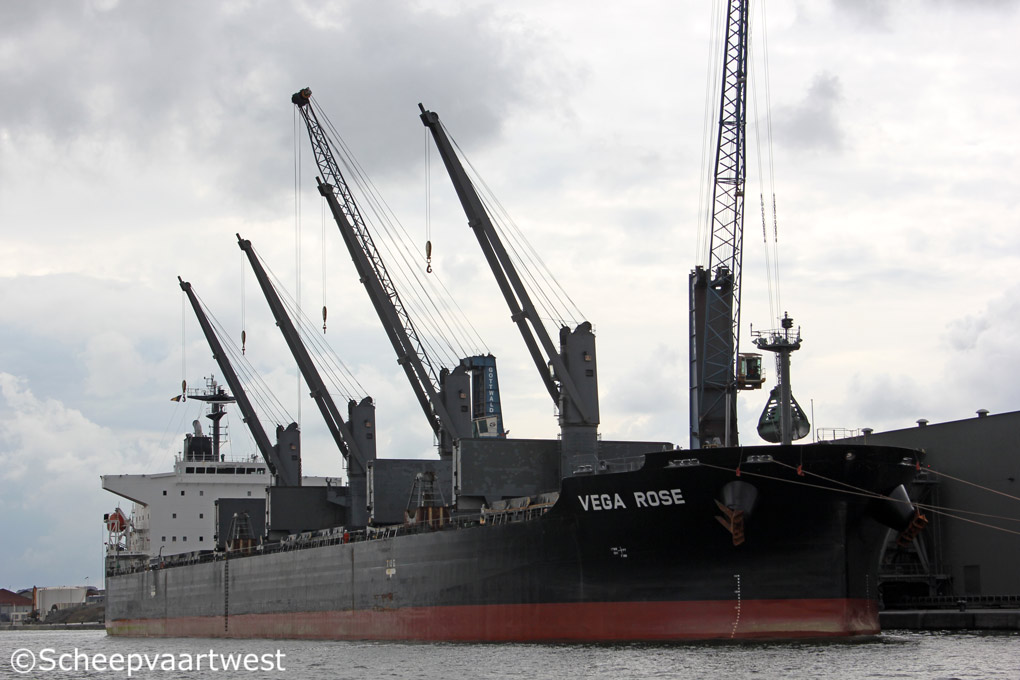

VEGA ROSE |
|
Type |
Bulk carrier |
|
IMO-number |
9336866 |
|
Call sign |
3EIO9 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
30.847 t registered |
|
DWT |
55.711 t |
|
NT |
18.103 t registered |
|
Length |
189,90 m overall |
|
Breadth |
32,26 m |
|
Draught |
12,522 m |
|
Moulded L x B x D |
185,00 x 32,26 x 17,80 m |
|
Registered L x B x D |
185,00 x 32,26 x 17,80 m |
|
Freeboard |
Summer: 5.320 mm |
|
Speed |
Trial: 16,2 knots |
|
Built |
2007 |
|
Keel laid |
21.12.2004 |
|
Launch date |
20.11.2006 |
|
Date of completion |
30.01.2007 |
|
Builder |
Kawasaki Shipbuilding Corporation Kobe Shipyard |
|
Yard number |
1568 |
|
Hull material |
Steel |
|
Main engine |
1x MAN-B&W 6S50MC-C - 2 stroke single acting 6 cylinder 500 x 2000 mm diesel engine - 8.200 kW at 110,0 rpm Manufacturer: Kawasaki Heavy Industries, Ltd. |
|
Propellers |
1 |
|
Propeller shaft |
Oil lubrication shaft with monitoring device |
|
Boilers |
1x Auxiliary vertical boiler - 8,0 bar Evaporation: 2,00 t/h Manufacturer: Osaka Boiler Mfg., Co., Ltd. |
|
Generators |
4x Main generators sets each 1.995 kVA |
|
Number of holds |
5 Hold 1: 28,40 x 10,80 - 20,40 m Holds 2-3-4: 29,37 x 23,40 m Hold 5: 29,37 x 23,40 - 11,80 m |
|
Number of hatches |
5 Hatch 1: 17,80 x 18,60 m Hatches 2-3-4-5: 20,47 x 18,60 m |
|
Hatch covers |
McGregor double skin steel weather tight folding type |
|
Tanktop strength |
Hold 1: 22,53 t/m² Hold 2: 18,45 t/m² Hold 3: 26,00 t/m² Hold 4: 18,45 t/m² Hold 5: 22,53 t/m² |
|
Cargo capacity |
Grain: 69.448 m³ Bales: 66.366 m³ |
|
Tank capacities |
Fuel oil: 1.983 m³ Fresh water: 330 m³ Water ballast: 16.605 m³ |
|
Lifting equipment |
4x Cranes - SWL 30,5 t each Grabs: 4x 12 m³ |
|
Manager |
Federal Atlantic Lakes Line (FALLine) |
|
Owner |
Osaka Asahi Marine Transportation |
|
Registered owner |
Rosex Company Limited |
