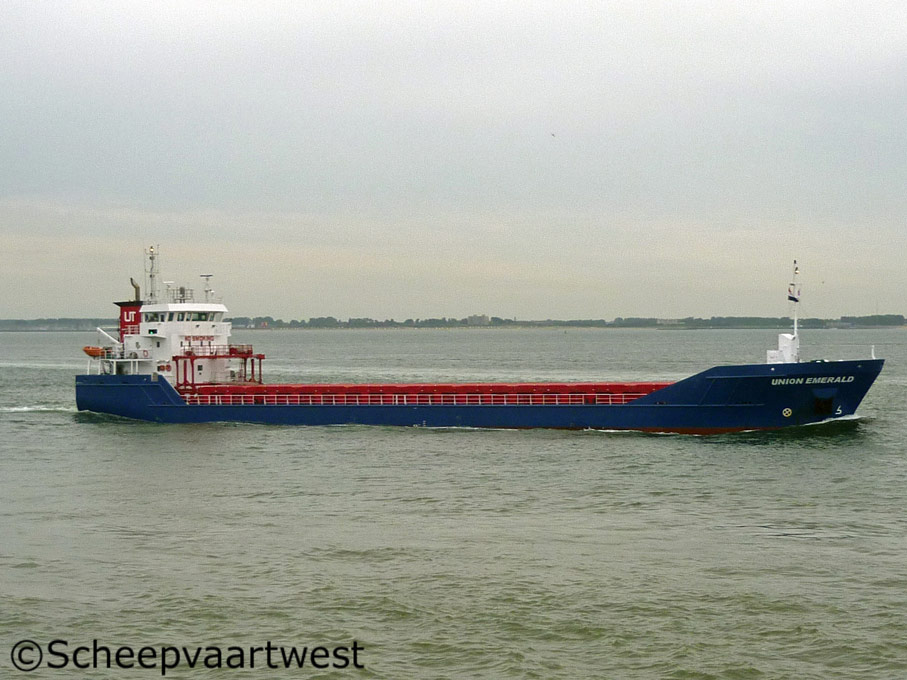

Union Emerald IMO 9374741 01
Westerschelde 22 August 2011

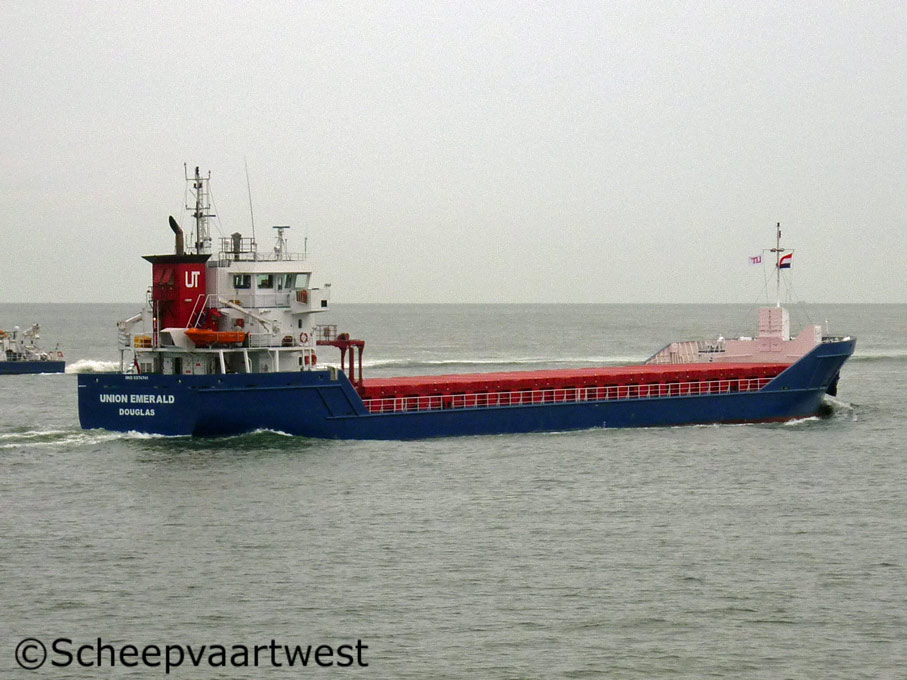

Union Emerald IMO 9374741 04
22/08/11



Name

UNION EMERALD

Type

Multi-Purpose dry cargo ship - Strengthened for heavy cargo

IMO-number

9374741

Call sign

2DTB5

Flag

Isle of Man - United Kingdom

Port of registry

Douglas

GT

2.967 t

DWT

4.448 t

NT

1.554 t

Length

89,95 m overall

84,82 m registered

Breadth

14,40 m registered

Draught

5,8 m

Forecastle

7,22 m

Poop

11,10 m

Depth

7,85 m moulded

Speed

11,0 knots

Built

2010

Keel laid

15.12.2008

Launch date

02.04.2010

Date of completion

09.11.2010

Builder

Chowgule & Company Pvt. Ltd. Shipbuilding Division Loutulim
Near Borim Bridge Loutulim Road
Loutulim , Goa 403 718
Republic of India

Yard number

C185

Hull material

Shipbuilding steel (standard)

Hull type

Double bottom

Watertight bulkheads

2

Continuous decks

1

Main engine

1x MAK 6 M25 - 4 stroke 6 cylinder 255 x 400 mm diesel engine - 1.980 kW at 750 rpm

Year of manufacture: 2008

Manufacturer: Caterpillar Motoren GmbH & Co. KG
Falckensteiner Str. 2
24159 Kiel
Federal Republic of Germany

Propeller

Controllable pitch propeller - aft at 158 rpm

Electric installations

1x Plant 400 V - 175 kVA

1x Plant 400 V - 175 kVA

1x Plant 400 V - 390 kVA

1x Plant 400 V - 175 kVA

1x Plant 12 V - 180 Ah

Shaft generator

1x 390 kVA

Generators

2x Main diesel generatorsets each 175 kVA

Emergency generator

1x Diesel generatorset 175 kVA

Batteries

4x Batteries for start auxiliary engine each 180 Ah

Compressed air receivers

2x Receivers each 250 litres - 30,0 bar

Bow thruster

1x Transverse thruster - 250 kW, forward

Anchor equipment

3x Anchors weight each 2.100 kg

Chain length: 440,00 m

Crew size

9

Manager

Union Transport Group Plc.
Imperial House 21-25, North Street
Bromley, Kent BR1 1SJ
United Kingdom

Owner

Union Transport Group Plc.
Imperial House 21-25, North Street
Bromley, Kent BR1 1SJ
United Kingdom
