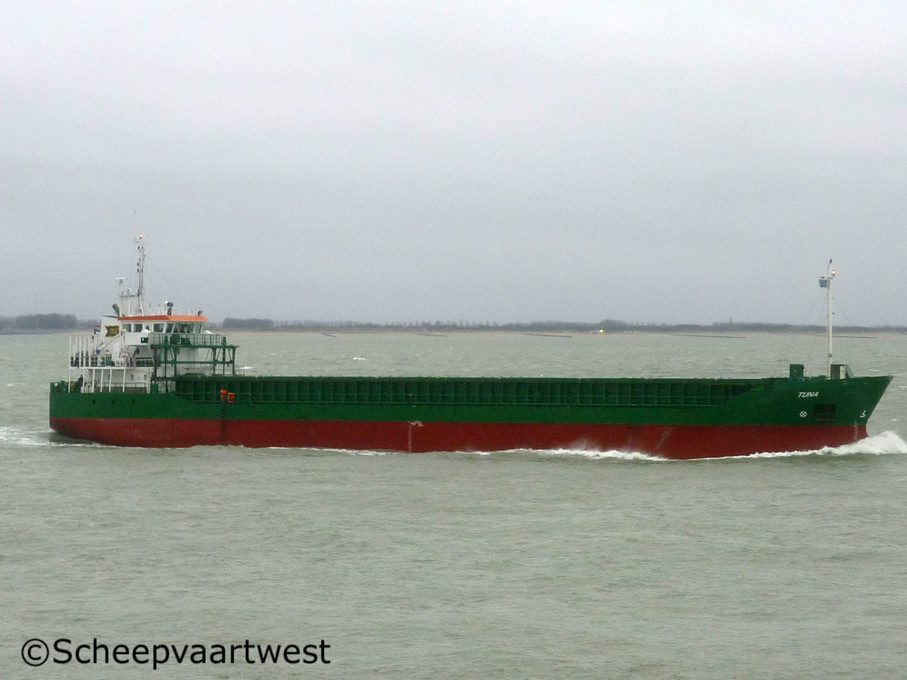

| Westerschelde 01 Junaury 2012 |
|
Name |
TUNA |
|
Type |
General cargo ship - Single-decker, box-shaped |
|
IMO-number |
9306691 |
|
Call sign |
PHBX |
|
Flag |
The Netherlands |
|
Port of registry |
Delfzijl |
|
GT |
2.556 t |
|
DWT |
Summer: 4.819 t |
|
NT |
1.406 t |
|
Displacement |
5.902 t |
|
Length |
89,00 m overall 84,99 m between perpendiculars |
|
Breadth |
13,35 m moulded |
|
Draught |
5,85 m |
|
Freeboard |
1.655 mm |
|
Depth |
7,50 m |
|
Speed |
12,5 knots |
|
Built |
2004 |
|
Date of completion |
28.10.2004 |
|
Builder |
Scheepswerf Ferus Smit B.V. |
|
Yard number |
357 |
|
Hull material |
Steel |
|
Watertight compartments |
5 |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä 6L26 - 4 stroke 6 cylinder 260 x 320 mm diesel engine - 1.850 kW / 2.527 hp at 900 rpm Built: 2004 Builder: Wärtsilä Italia S.p.A., Trieste - Italia |
|
Propelling system |
1x Screw propeller controllable pitch 4 blades - 3.350 mm diameter |
|
Electrical installation |
Power voltage: 440 V Lighting voltage: 230 V Frequency: 60 Hz |
|
Shaft generators |
1x 406 kVA / 325 kW |
|
Generators |
1x Scania diesel generatorset 219 kVA - 175 kW - 254 hp |
|
Emergency generator |
1x Diesel generatorset 97 kVA - 78 kW - 116 hp |
|
Bow thruster |
1x Jastram - 270 kW |
|
Number of holds |
2 Hold 1: 22,10 x 11,60 / 7,80 x 8,85 m Hold 2: 39,25 x 11,60 x 8,85 m |
|
Number of hatches |
2 Hatch 1: 20,80 x 10,40 m Hatch 2: 39,00 x 10,40 m |
|
Cargo capacity |
Hold 1: 2.046 m³ / 72.224 ft³ Hold 2: 3.922 m³ / 138.447 ft³ Total: 5.968 m³ / 210.670 ft³ |
|
Tank capacities |
Water ballast: 1.737 m³ Fresh water: 37 m³ HFO: 211 m³ Diesel oil: 25 m³ |
|
Manager |
Marin Shipmanagement 9936 BH Farmsum 9930 AC Delfzijl The Netherlands |
|
Registered owner |
Thun Rederier AB |
