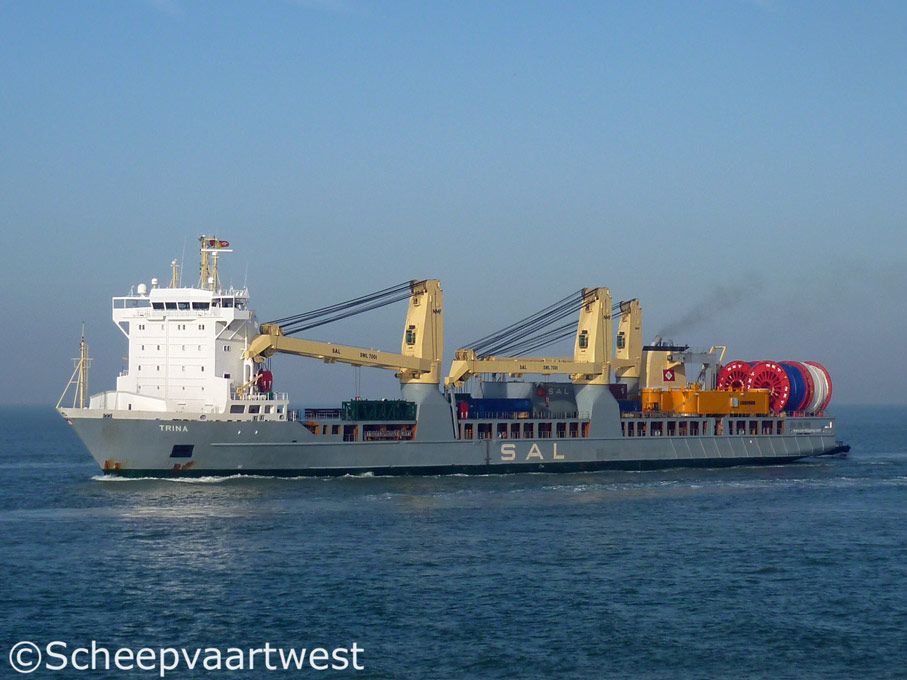

Trina 02
Westerschelde 24 September 2011

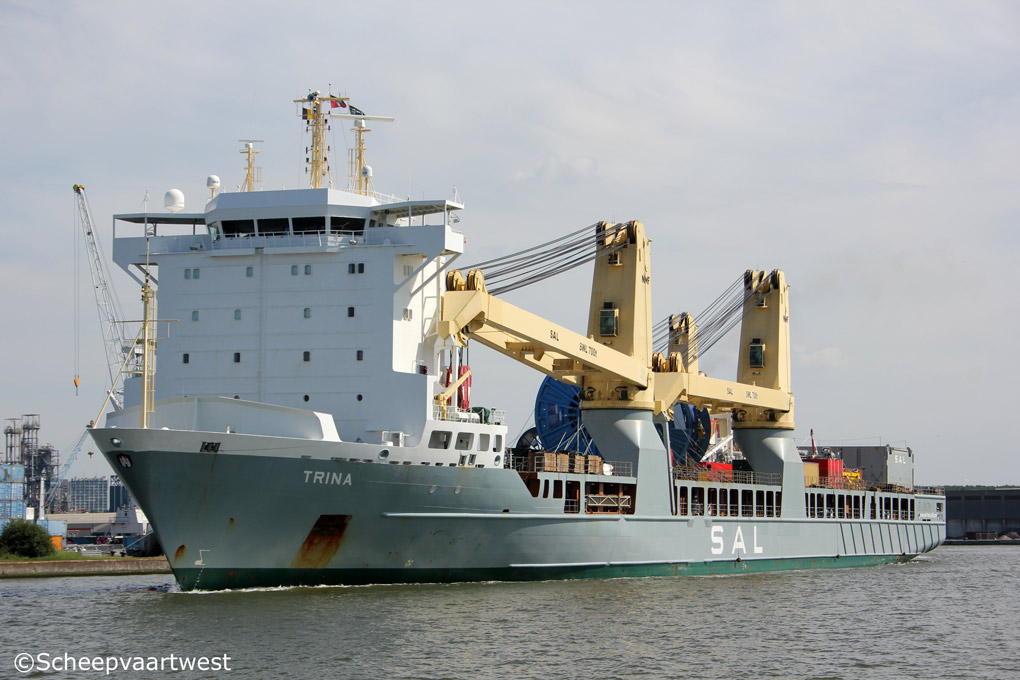

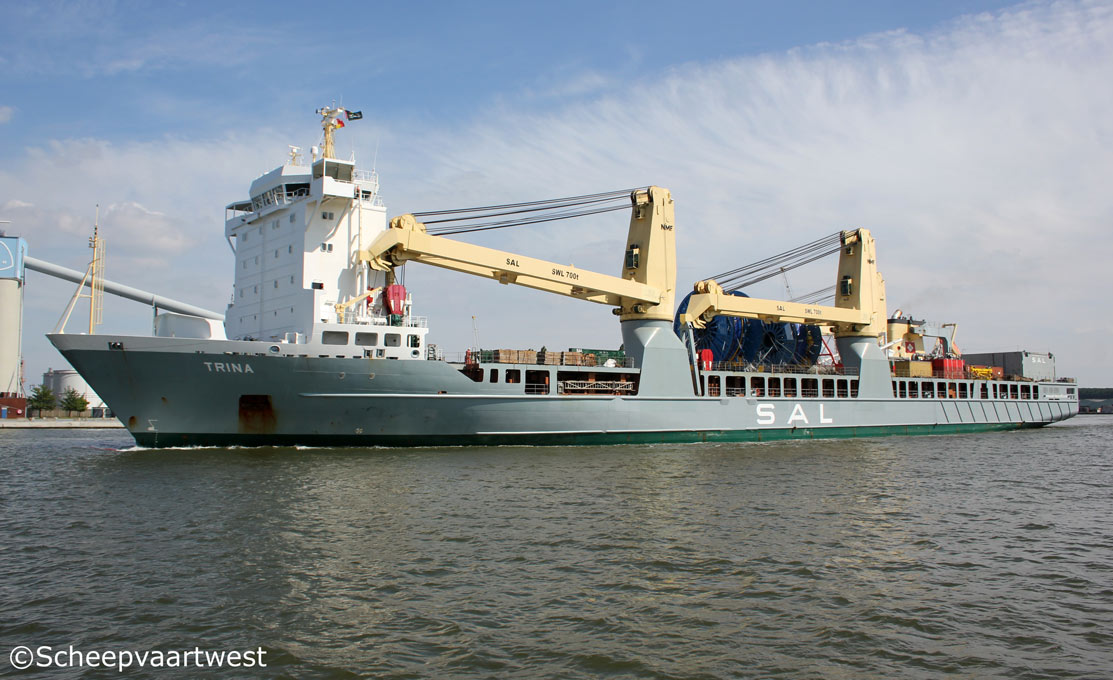

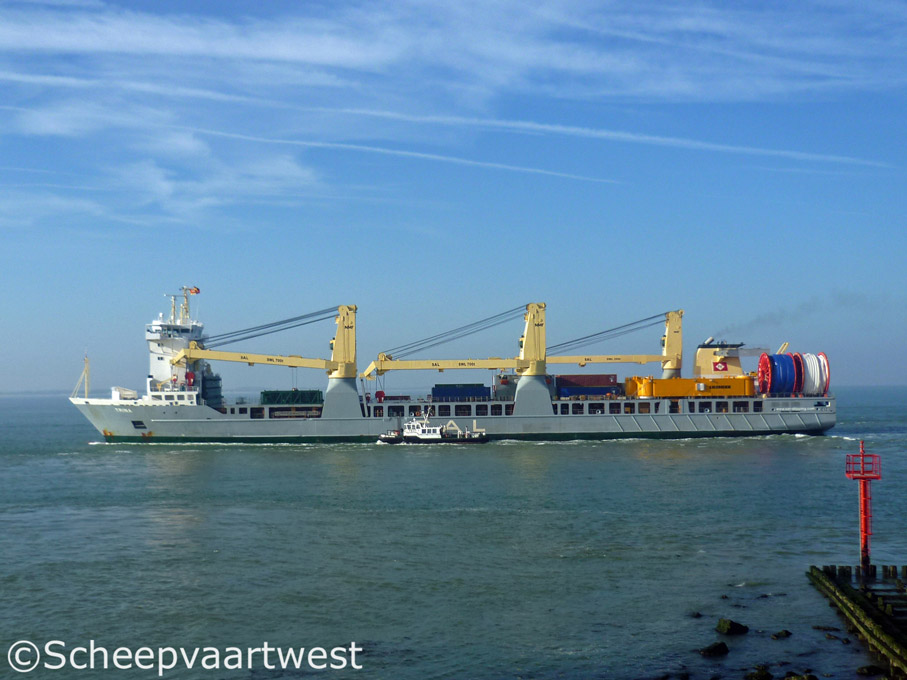

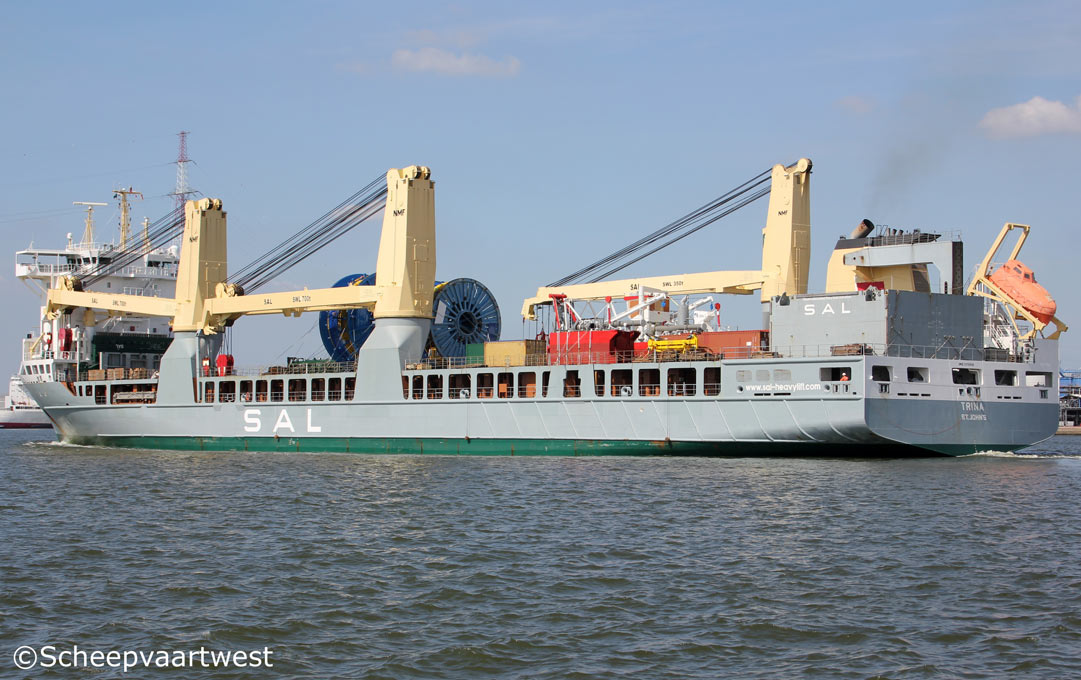

Trina 06   Trina 08   Trina 09   Trina 10   Trina 07
Westerschelde 24/09/11 Antwerpen 22/07/14 Antwerpen 22/07/14 Antwerpen 22/07/14   Westerschelde 24/09/11



Name

TRINA

Type

Multi-purpose dry cargo ship - Heavy lift ship
Equipped for carriage of containers, Strengthened for heavy cargo

IMO-number

9376505

Call sign

V2FV8

Flag

Antigua and Barbuda

Port of registry

St. John's

Previous flag

2008 - 2011 Germany, Hamburg - Call sign: DFVI2

GT

12.950 t

Suez: 13.481 t

DWT

Summer: 12.007 t

NT

4.647 t

Suez: 12.827 t

Panama: 10.879 t

Displacement

21.400 t

Number of 20ft containers

993

Length

159,80 m overall

150,22 m registered

148,31 m between perpendiculars

Breadth

24,34 m extreme

24,00 m registered

Draught

9,08 m

Air draught

40,50 m jibs in rest.

62,90 m jibs upright

Freeboard

1.528 mm

Depth

13,20 m moulded

Speed

20,0 knots

Built

2008

Keel laid

21.12.2006

Launch date

22.08.2008

Date of completion

13.11.2008

Builder

J.J. Sietas KG Schiffswerft GmbH & Co.
Neuenfelder Fährdeich 88
21129 Hamburg
Federal Republic of Germany

Yard number

1277

Hull material

Shipbuilding steel (standard)

Hull type

Double bottom

Watertight bulkheads

5

Continuous decks

3

Main engine

1x MAN 9L58/64 - 4 stroke 9 cylinder 580 x 640 mm diesel engine - 12.600 kW at 428 rpm

Year of manufacture: 2008

Manufacturer: MAN Diesel & Turbo SE
Stadtbachstr. 1
86153 Augsburg
Federal Republic of Germany

Propeller

1x Controllable pitch propeller - aft at 130 rpm

Boilers

1x Thermal oil heater, oil fired - 10,0 bar

Heating surface: 41,6 m²

1x Thermal oil heater, exhaust gas heated - 10,0 bar

Heating surface: 189,7 m²

Year of manufacture: 2008

Manufacturer: PWT Prozess-Wärmeträgertechnik GmbH
Justus-von-Liebig-Ring 4-6
25451 Quickborn
Federal Republic of Germany

Electric installations

1x Plant 400 V - 700 kVA

1x Plant 400 V - 1.300 kVA

1x Plant 400 V - 1.300 kVA

1x Plant 400 V - 1.625 kVA

1x Plant 400 V - 250 kVA

1x Plant 24 V - 18 Ah

1x Plant 24 V - 135 Ah

1x Plant 24 V - 180 Ah

1x Plant 436 V - 26 Ah

Shaft generator

1x 1.625 kVA

Generators

2x D49A-MS M main diesel generatorsets each 1.300 kVA

1x D30A-MS E main diesel generatorset 700 kVA

Emergency generator

1x D2866 LXE20 diesel generatorset 250 kVA

Batteries

4x Batteries for Start emergency engine each 180 Ah

2x Batteries for UPS radio each 135 Ah

32x Batteries for automation each 26 Ah

2x Batteries for other purpose each 18 Ah

Compressed air receivers

2x Receivers each 1.250 litres - 30,0 bar

1x Receiver 10 litres - 30,0 bar

1x Receiver 500 litres - 11,0 bar

Bow thruster

1x Brunvoll transverse thruster - 900 kW / 1.224 hp, forward

Number of holds

1

107,10 x 17,00 x 13,10 m

Hold capacity

19.299 m³

Number of hatches

1

Free deck space

3.128 m²

Tank capacities

Ballast water: 6.948,63 m³

Gas oil: 224,04 m³

HFO: 1.623,50 m³

Fresh water: 224,50 m³

Anchor Equipment

3x Anchors weight each 5.610 kg

Chain length: 581,21 m

Diameter: 58 mm

Cargo gear

2x Cranes - SWL 700 t

1x Crane - SWL 350 t combinable upto 1.400 t

Crew size

30

Manager

SAL Heavy Lift GmbH
Brooktorkai 20
20457 Hamburg
Germany

Previous managers

2008 - 2010 Hans Heinrich und Claus Heinrich

2010 - 2011 SAL Heavy Lift Engineering GmbH

Operator

SAL Heavy Lift GmbH

Owner

SAL Heavy Lift GmbH
Brooktorkai 20
20457 Hamburg
Germany

Previous owners

2008 - 2010 HLL Heavy Lift + Load Project GmbH & Co. KG

2010 - 2011 HLL Heavy Lift + Load Trina GmbH & Co.

2011 - 2011 HLL Heavy Lift + Load "WIEBKE" GmbH & Co. KG

2011 - 2011 HLL Heavy Lift + Load Trina GmbH & Co.

2011 - 2012 SAL Schiffahrtskontor Altes Land GmbH & Co. KG, Steinkirchen - Federal Republic of Germany

Latest data adjustment

09 March 2016
